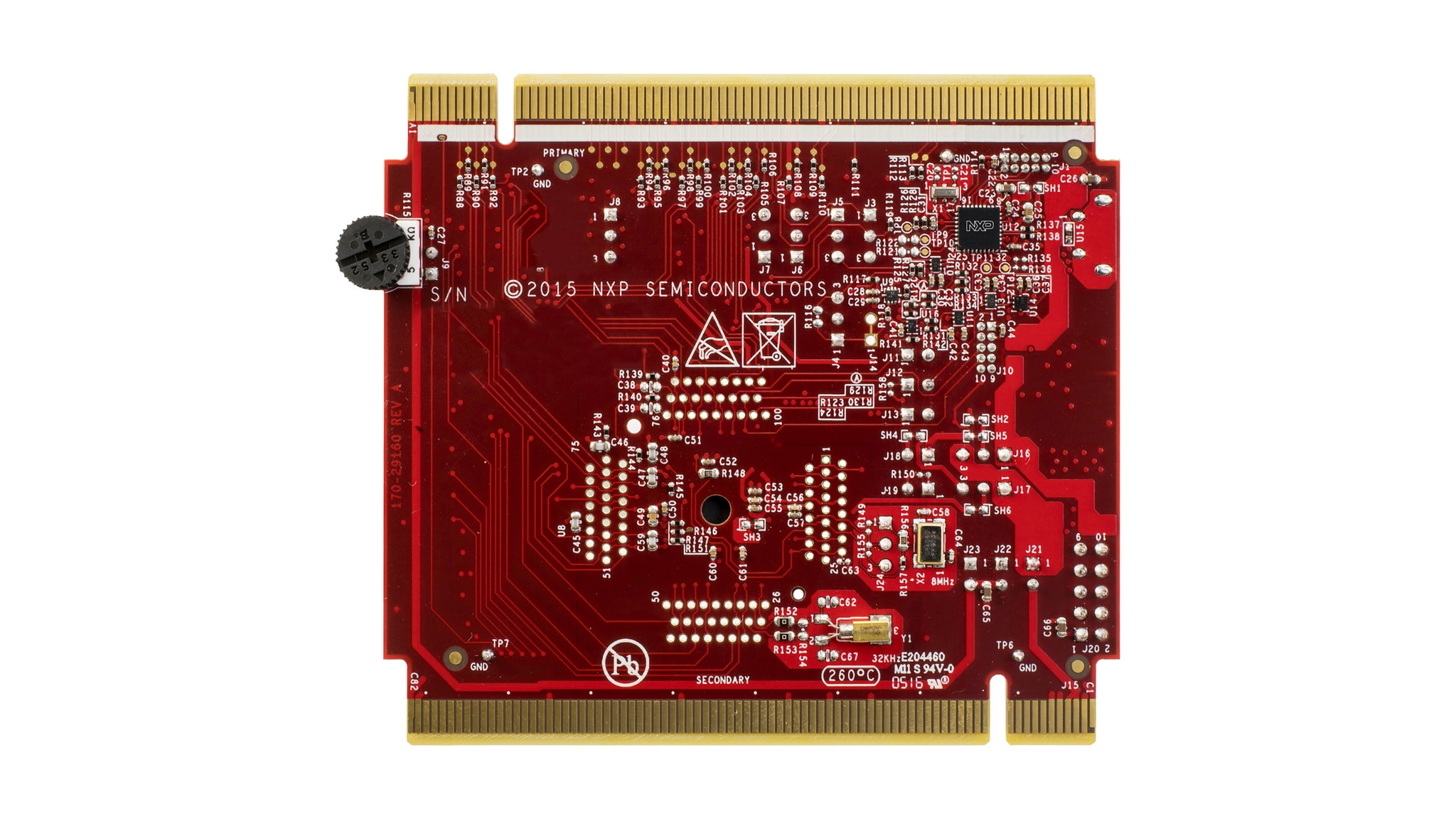

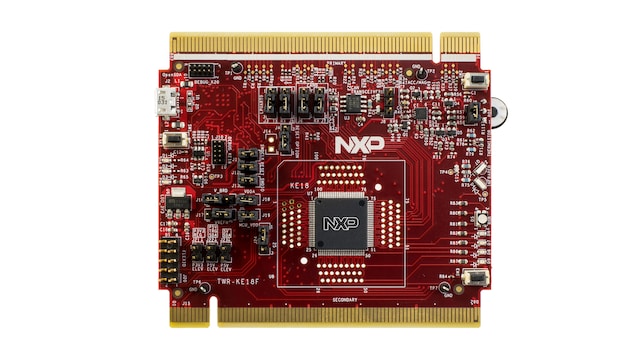

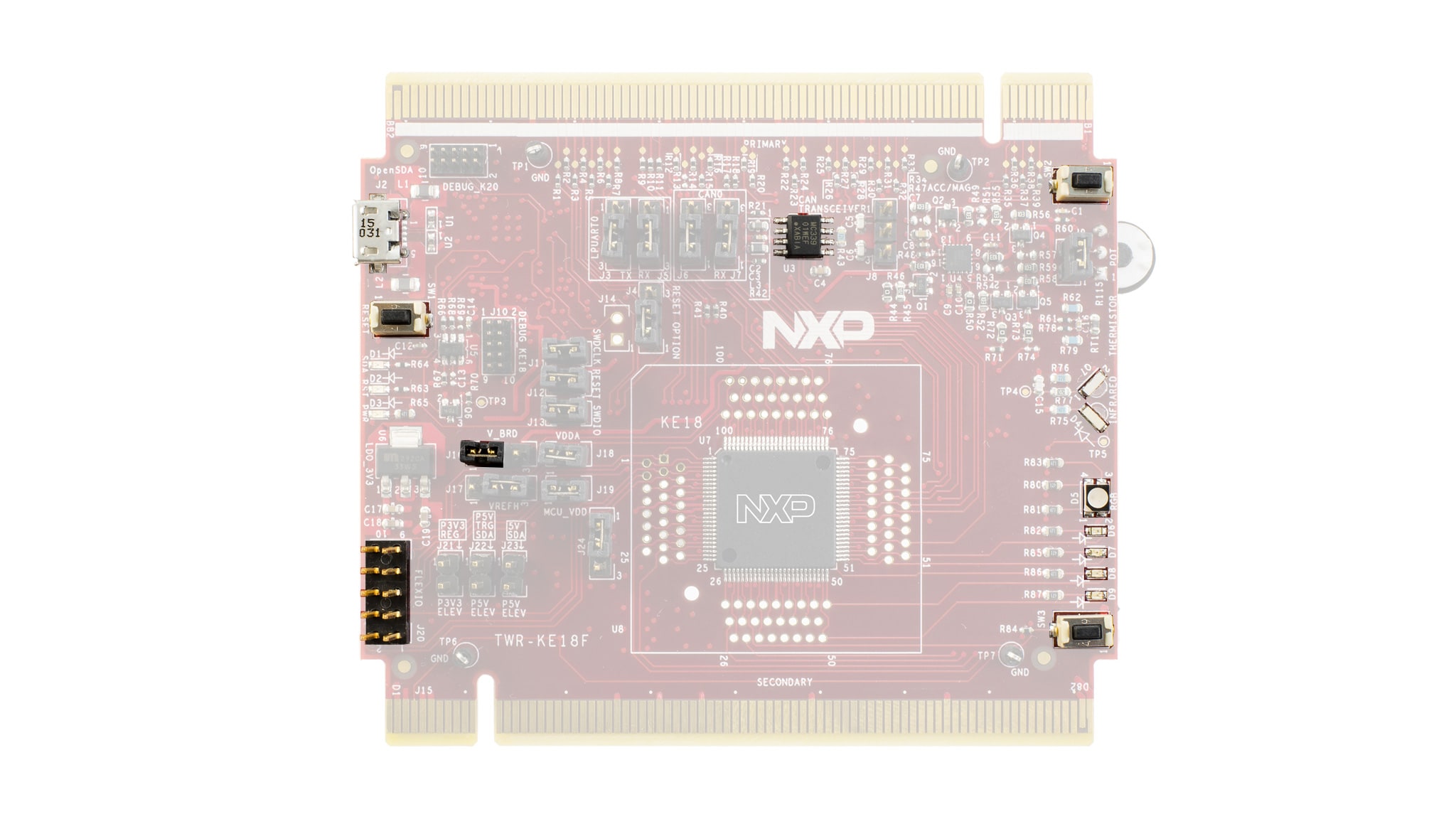

TWR-KE18F
Active -
Tower System Development Board for Kinetis KE14, KE16 and KE18 MCUs.
- TWR-KE18F Tower System module
- Quick start guide
- Supporting cable
Compact List
Kinetis KE18 MCU Tower System Module
The TWR-KE18F is a development board for the Kinetis KE1xF 32-bit MCUs.
The power supply voltage range from 3.3V to 5V, and it features a KE18 device boasting a maximum operating frequency of 168 MHz, up to 512 KB Flash size and numerous analog and digital peripherals.
Board operates as a standalone debug tool and can also be combined and used as part of the modular Tower System development platform
Product Details
Supported Devices
Processors and Microcontrollers
KE Series Arm Cortex-M4/M0+
- KE1xF: Kinetis KE1xF-168MHz, Performance with CAN 5V Microcontrollers based on Arm® Cortex®-M4
Features
Microcontroller
- 168 MHz core clock
- 512 KB flash
- 64 KB RAM
- 100 LQFP package
MKE18F512VLL16 MCU
Connectivity
- Tower-compatible processor board
- I/O headers for easy access to MCU I/O pins
- Infrared port communication
- Flex™ I/O header
Power Management
- Board power select with 3.3 V or 5 V MCU operation
Debug
- Onboard OpenSDA(CMSIS-DAP) circuit: K20DX128VFM5 with debug and virtual serial port>
Sensors
- FXOS8700CQ 3D accelerometer + 3D magnetometer
Components
- Four user-controlled status LEDs and one RGB LED
- Two mechanical push buttons and one reset button
- Thermistors and potentiometer
- CAN transceiver
