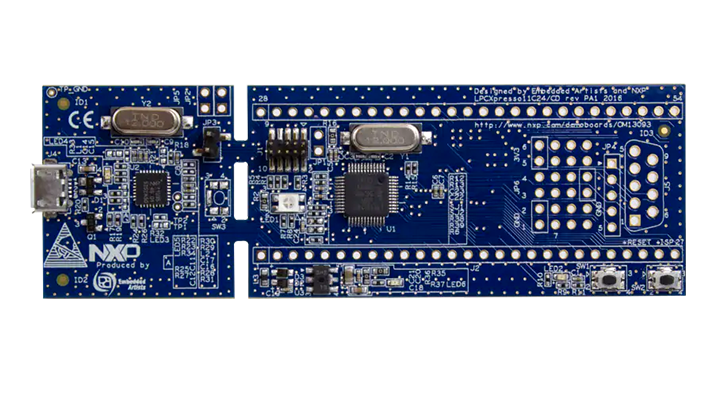

LPCXpresso board for LPC11C24 with CMSIS DAP probe

OM13093

Roll over image to zoom in

Pioneered by NXP and Embedded Artists, the low-cost LPCXpresso target boards to get you up and running quickly with LPC microcontrollers. Designed for simple, rapid prototyping and evaluation, LPCXpresso development boards work with Eclipse/GNU-based tools from NXP and other common partner toolchains.

This LPCXpresso board is populated with the LPC11C24 to demonstrate and enable features of the LPC11Cxx devices that feature an on-board CAN transceiver. The LPCXpresso LPC11C24 combines the highly flexible peripheral set of the LPC11C24 and the low price point of the LPCXpresso board.

The board also includes an on-board, CMSIS-DAP compatible debug probe, as well as a connector for use with 3rd party debug probes.

The order code for this board is: OM13093

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

LPC1100 Arm Cortex-M0+/M0

  • LPC11C00: Scalable Entry Level 32-bit Microcontroller (MCU) based on Arm® Cortex®-M0 Cores

Features

Microcontroller

  • LPC11C24 Cortex-M0-based microcontroller

Connectivity

  • 10-pin SWD connector for use with an external debug probe
  • 9-pin D-type connector pads for addition of CAN connector
  • LPCXpresso debug expansion connectors

Debug

  • Integrated CMSIS-DAP debug probe
  • Debug probe section of the board can be snapped off to reduce board size

Components

  • Reset and ISP boot mode buttons
  • Tricolor LED

Buy Options

OM13093-Image

Click to expand

  • OM13093

  • LPCXpresso board for LPC11C24 with CMSIS DAP probe.

    • LPCXpresso™ LPC11C24 with CMSIS probe Development Board
    • Card insert with links to installation information
  • $24.15 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 6
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor

Design Resources

Select a section:

Design Files

Filters

2 design files

  • Printed Circuit Boards and Schematics

    LPCXpresso11C24 with CMSIS-DAP - Schematic

    PDFRev AJul 24, 2016 00:00:00105.9 KBLPCXpresso11C24-WITH-CMSIS-DAP-SCH
    Download
  • Printed Circuit Boards and Schematics

    LPCXpresso LPC11C24 with CMSIS DAP - BOM

    ZIPRev AJan 18, 2018 12:19:00112.8 KBOM13085-LPCXpresso-LPC1769
    Download

Software

Filters

5 software files

  • BSPs and Device Drivers

    Firmware and drivers for LPC11U35 debug probes

    ZIPRev 1.07Jul 6, 2018 16:38:00326.8 KBLPC11Uxx-Debug-Probe-VCOM
    Sign in required
    Download
  • Debugging and Visualization Tools

    Linkserver 1.3.15 installer for MacOS

    PKGRev 1.3.15Nov 1, 2023 11:00:0015.6 MBLINKSERVER-MACOS_1.3.15
    Download
  • Debugging and Visualization Tools

    Linkserver 1.3.15 installer for Windows

    EXERev 1.3.15Nov 1, 2023 11:00:0079332 KBLINKSERVER-WIN-1.3.15
    Download
  • Debugging and Visualization Tools

    Linkserver 1.3.15 installer for Linux

    BINRev 1.3.15Nov 1, 2023 11:00:0014.0 MBLINKSERVER-LIN_1.3.15
    Download
  • Debugging and Visualization Tools

    Linkserver 1.3.15 installer for MacOS Arch 64updated

    PKGRev 1.3.15Nov 7, 2023 09:17:0014.3 MBLINKSERVER-MAC-AARCH64-1.3.15
    Download
