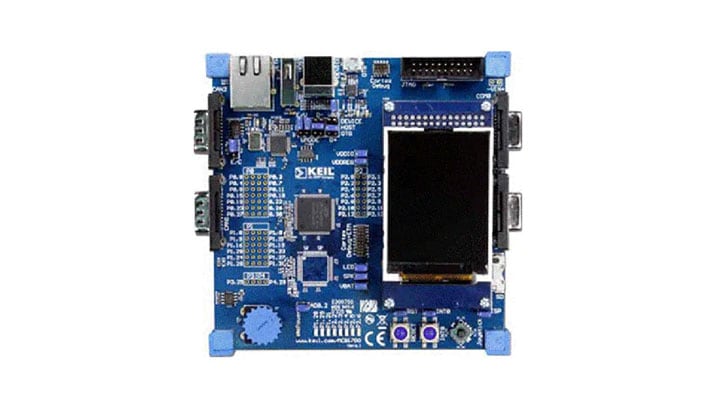

Keil LPC1758 Evaluation Board
OM11036 Receive alerts
The Keil LPC1758 Evaluation Board allows you to quickly and easily evaluate the LPC175x family of microcontrollers. The microcontroller, board, and accompanying features make it a great starting point for your next Cortex-M3 project.
Populated with the LPC1758 to demonstrate LPC175x features, the LPC1758 board allows the evaluation of the high level integration and low power consumption of the LPC1758. The board requires an external debug probe, such as the LPC-Link2.
Order Number: OM11036
Populated with the LPC1758 to demonstrate LPC175x features, the LPC1758 board allows the evaluation of the high level integration and low power consumption of the LPC1758. The board requires an external debug probe, such as the LPC-Link2.
Order Number: OM11036
Product Details
Supported Devices
Processors and Microcontrollers
LPC1700 Arm Cortex-M3
- LPC1751FBD80: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
- LPC1752FBD80: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
- LPC1754FBD80: Scalable Mainstream 32-Bit MCU Based on ArmArm® Cortex®-M3 Core
- LPC1756FBD80: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
- LPC1758FBD80: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
- LPC1759FBD80: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
Features
Debug
- Debug Interface Connectors
Display
- Color QVGA TFT LCD
Audio
- Amplifier and Speaker
- 10/100 Ethernet Port
- USB 2.0 Full Speed - USB, USB-OTG, and USB Host
- 2 CAN interfaces
- 2 Serial Ports
- SD/MMC Card Interface
- 5-position Joystick and push button
- Analog Voltage Control for ACD Input
- Up to 70 GPIO
