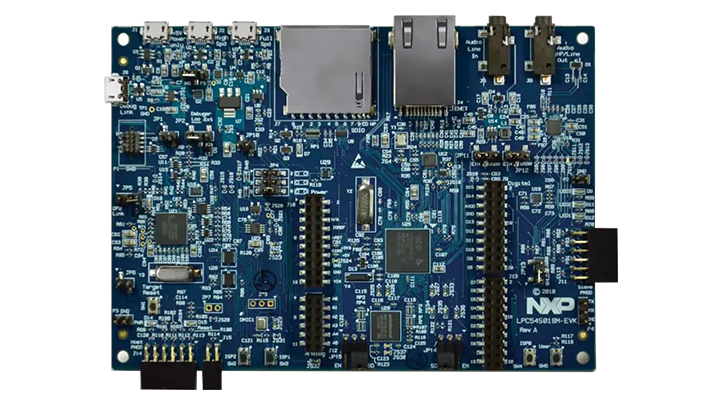

LPCXpresso54S018M Development Board

Roll over image to zoom in

Product Details

Supported Devices

Processors and Microcontrollers

LPC54000 Arm Cortex-M4

Features

Microcontroller

  • LPC540xxJxM/LPC54S0xxJxM microcontroller

Memory

  • Winbond 128 Mb W9812G6JB-6I SDRAM
  • Full-size SD/MMC card slot

Connectivity

  • Onboard, high-speed USB, Link2 debug probe with CMSIS-DAP and SEGGER J-Link protocol options
  • UART and SPI port bridging from LPC54S018 target to USB via the onboard debug probe
  • High and full speed USB ports with micro A/B connector for host or device functionality
  • 10/100 Mbps Ethernet (RJ45 connector)

Power Management

  • Built-in power consumption measurement for target LPC54018 MCU

Sensors

  • NXP MMA8652FCR1 accelerometer

Display

  • Optional 480x272 capacitive touch TFT LCD screen (available separately)

Audio

  • Knowles SPH0641LM4H digital microphone
  • Stereo audio codec with line in/out

Support

  • Support for external debug probe

Expansion Port

  • Multiple Expansion options, including Arduino® UNO and PMod

User Components

  • 3 x user LEDs, plus Reset, ISP (3) and user buttons

Buy Options

LPC54S018M-EVK-Image

Click to expand

  • LPC54S018M-EVK

  • LPCXpresso54S018M Development Board.

    • Availability: In Stock
    • Inventory: 1
    • Shipping: Normally ships 1-2 business days
