LPC845 Capacitive Touch Development Kit

OM40004

Roll over image to zoom in

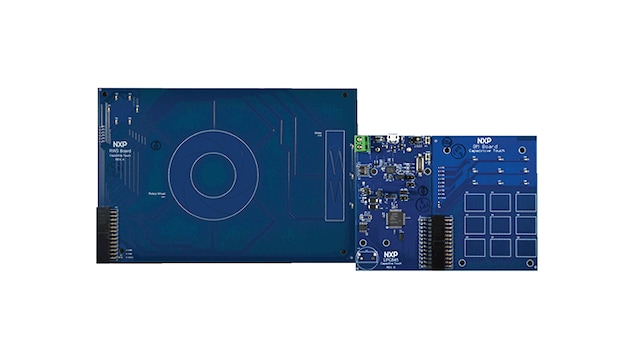

The LPC845 Capacitive Touch Kit enables easy evaluation of the capacitive touch features of the LPC84x family of devices. The Kit can be used with a range of development tools, including the MCUXpresso IDE, IAR EWARM and Keil MDK. This kit comprises an LPC845 Main Processor board with an on-board, CMSIS-DAP debug probe, and two sample capacitive touch add-on boards, featuring slider and rotary wheel and button matrix user interface designs. Custom add-on boards can be used with the Main Processor board via a standard connector. The on-board probe is compatible with MCUXpresso IDE (and other leading toolchains such as those from Keil and IAR. The board is also equipped with a standard 10-pin header enabling the use of 3rd party debug probes.

The board is supported by software examples included in the LPC84x Code Bundle package and with FreeMASTER plug ins to help tune capacitive touch performance.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

LPC800 Arm Cortex-M0+

  • LPC84X: LPC840: 32-Bit Arm® Cortex®-M0+-Based Low-Cost MCU

Features

Microcontroller

  • LPC845 Main Processor (MP) Board, compatible with LPCXpresso845MAX board (for common features), for easy code porting/sharing

Debug

  • CMSIS-DAP (debug probe) with VCOM port, based on LPC11U35 MCU
  • Debug connector to allow debug of target MCU using an external probe

Sensors

  • 9 button matrix (BM) sensor board
  • Rotary wheel and slider (RWS) sensor board
  • LEDs on sensor boards for each capacitive touch pad

Audio

  • DAC output via speaker driver and speaker

Support

  • MCUXpresso IDE
  • Target ISP and User/Wake buttons
  • Target Reset button

Buy Options

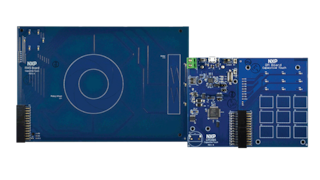

OM40004-Image

Click to expand

  • OM40004

  • LPC845 Capacitive Touch Development Kit.

    • 1x LPC845 Main Processor Board
    • 1x Button Matrix board with 9 square button
    • 1x Rotary Wheel and Slider board
  • $74.75 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 21
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
