OM7922: Customer evaluation kit for BGA7204, Variable gain amplifier

Name: Customer evaluation kit for BGA7204, Variable gain amplifier
Price: 160.00 USD

Overview

The BGA7204 customer evaluation kit enables the user to evaluate the performance of the variable gain amplifier BGA7204. The kit comes with a USB-interface board and customer software which allows you to use your PC to control the SPI interface of the BGA7204. You can set the attenuation state and advanced features as temperature read-out, reprogramming the gain curve and power down. The kit also provides BGA7204 samples for prototyping, a RF calibration-track for de-embedding of the RF board, product documentation and a USB extension cable to facilitate the work at the RF bench.

MoreLess

Target Applications

GSM
LTE Wireless Base stations
W-CDMA
WiMAX
WiMAX base stations
Wireless Point to point
Wireless repeater applications
Cable modem termination systems
Temperature compensation circuits

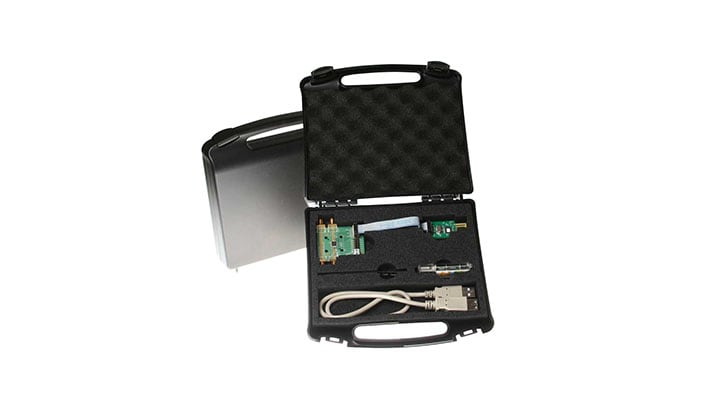

OM7922 - Variable gain amplifier BGA7204 customer evaluation kit

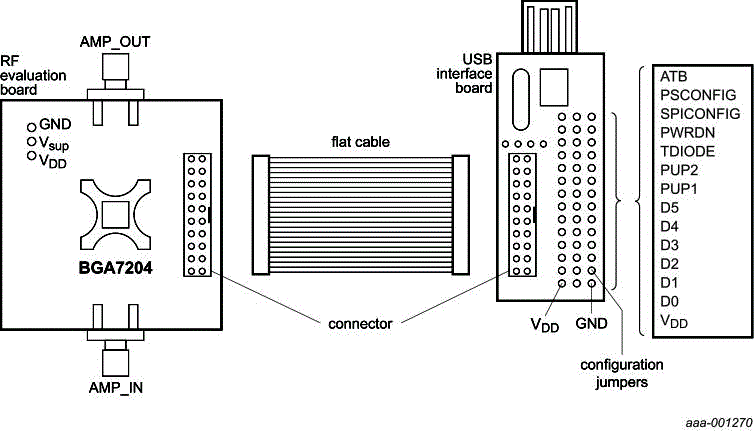

Block diagram OM7922

OM7922 - Variable gain amplifier BGA7204 customer evaluation kit

Specifications

Supported Devices

RF

Variable Gain Amplifiers

BGA7204 : 400 MHz to 2750 MHz high linearity variable gain amplifier

MoreLess

Technical and Functional Specifications

Out of the box evaluation of the fully populated RF board
Calibration tracks for RF board de-embedding
Plug & play control software, no driver installation required
Samples for prototyping
RF board can be powered through USB connector

Buy

OM7922 ^Active
Customer evaluation kit for BGA7204, Variable gain amplifier
- RF evaluation board
- USB interface board
- Flat cable
- Samples
- USB flash drive containing: user manual, evaluation software, datasheet, etc
- ESD safe casing

OM7922/BGA7204,598
1 @ US
$160.00

Distributor

Distributor Name	Region	Inventory	Inventory Date
