OM7921: Variable gain amplifier BGA7210 customer evaluation kit

Name: Variable gain amplifier BGA7210 customer evaluation kit
Price: 160.00 USD

Overview

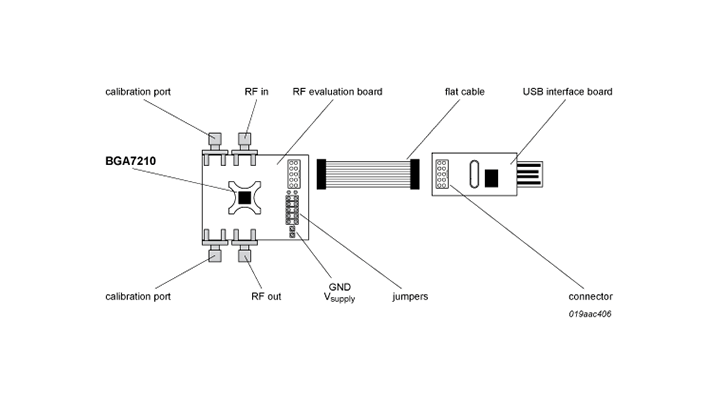

The BGA7210 customer evaluation kit enables the user to evaluate the performance of the variable gain amplifier BGA7210. The kit comes with a USB-interface board and customer software which allows you to use your PC to control the SPI interface of the BGA7210. You can set the attenuation state and advanced features as current consumption and power down. The kit also provides BGA7210 samples for prototyping, a RF calibration-track for de-embedding of the RF board, product documentation and a USB extension cable to facilitate the work at the RF bench.

MoreLess

Target Applications

GSM
LTE Wireless Base stations
W-CDMA
WiMAX
WiMAX base stations
Wireless Point to point
Wireless repeater applications
Cable modem termination systems
Temperature compensation circuits.

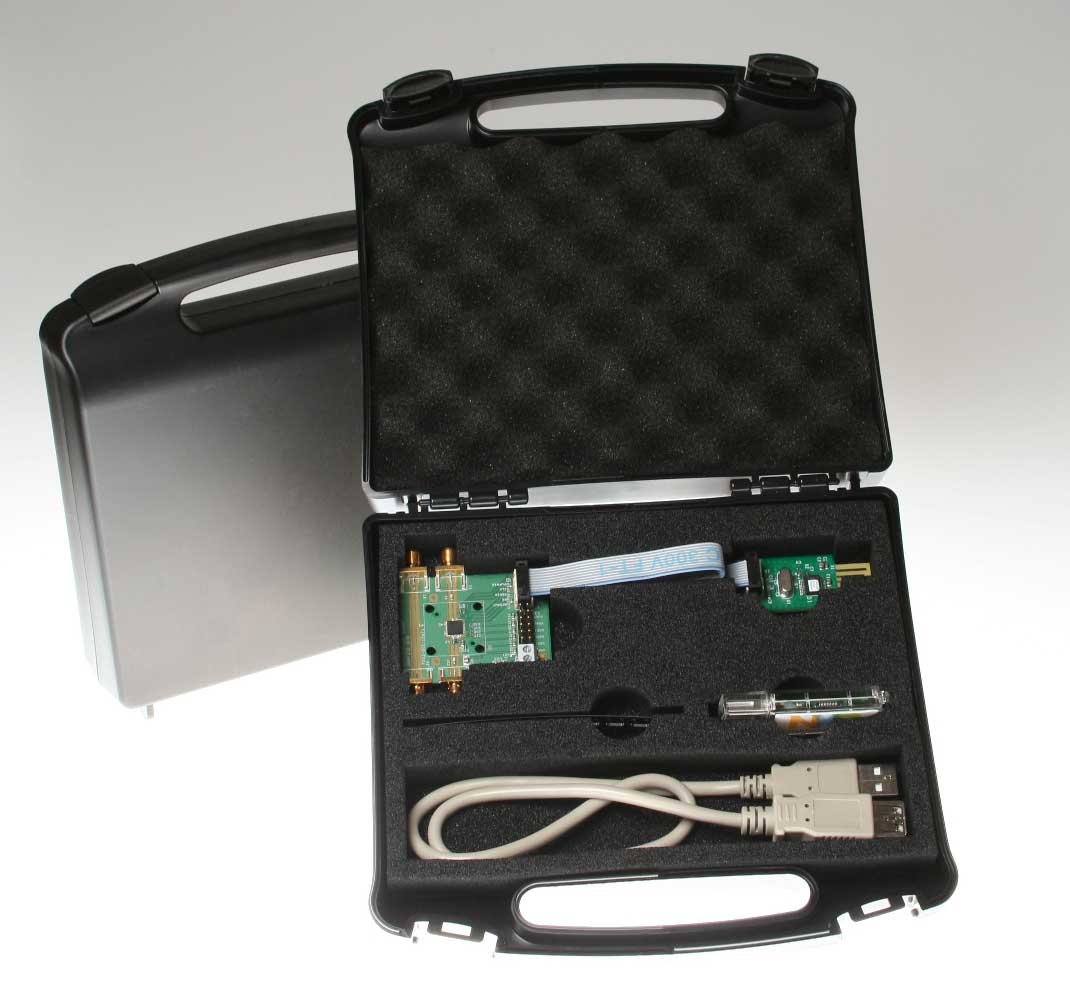

BGA7210 customner evaluation kit parts

OM7921- BGA7210 customer evaluation kit

Specifications

Supported Devices

RF

Variable Gain Amplifiers

BGA7210 : 700 MHz to 3800 MHz high linearity variable gain amplifier

MoreLess

Technical and Functional Specifications

Connectivity	RF board can be powered through USB connector
Tools & OS Support	Plug & play control software, no driver installation required
	Out of the box evaluation of the fully populated RF board Calibration tracks for RF board de-embedding Samples for prototyping

Buy

OM7921 ^Active
Variable gain amplifier BGA7210 customer evaluation kit
- RF evaluation board
- USB interface board
- Flat cable
- Samples
- USB flash drive containing: user manual, evaluation software, datasheet, etc
- ESD safe casing

OM7921/BGA7210,598
1 @ US
$160.00

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Design Resources

Documents

Data Sheet ( 1 )

700 MHz to 3800 MHz high linearity variable gain amplifier^{(REV
5.0
)}
- PDF
- 2.9 MB
- BGA7210_1
- [ English ]

Users Guide ( 1 )

Variable gain amplifier BGA7210^{(REV
2.0
)}
- PDF
- 705.0 kB
- 26 Jul 2011
- UM10480
- [ English ]
