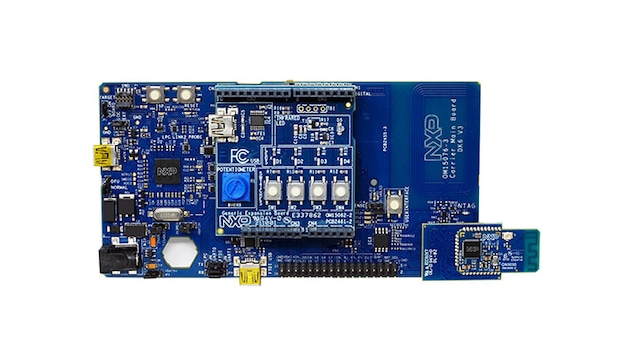

Name: Development platform for QN9090/30(T) wireless MCUs
Price: 132.25 USD

Product Details

Block Diagram

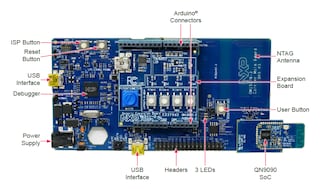

QN9090-DK006 9-board components

Get diagram PDF

Supported Devices

Wireless Connectivity

Bluetooth Low Energy

QN9090-30: QN9090/30: Bluetooth Low-Energy MCU with Arm^®Cortex^®-M4 CPU, Energy Efficiency, Analog and Digital Peripherals and NFC Tag Option

Features

Wireless MCU

Module site for QN9090 (T) Bluetooth LE 5.0 MCU with NFC NTAG

NFC

PCB antenna for NFC Tag

Debug

On-board, high-speed USB based, Link2 debug probe with ARM’s CMSIS-DAP and SEGGER J-Link protocol options.

Extensibility

Expansion options based on Arduino R3, plus additional expansion port pins

User Interace

Power, Reset, ISP and UART Tx/Rx status LEDs.
Target Reset, and User buttons.

Power Supply

On-board 3.3V from USB port, 4xAAA batteries, 2xAAA batteries (low-power mode) or external power supply options.
Built-in power consumption measurement

External Memory

8Mb Macronix MX25R QSPI flash.

Buy Options

Click to expand

QN9090-DK006
Active

Development platform for QN9090/30(T) wireless MCUs.

Kit Contains

1 mother board
1 Generic daughter card
1 module with mezzanine

$132.25 USD

In Stock :2

Normally ships 1-2 business days

ADD TO CART

Order from distributors
