KITFS6522LAEEVM: FS6522, System Basis Chip, DCDC 2.2A Vcore LDT, CAN, LIN

Overview

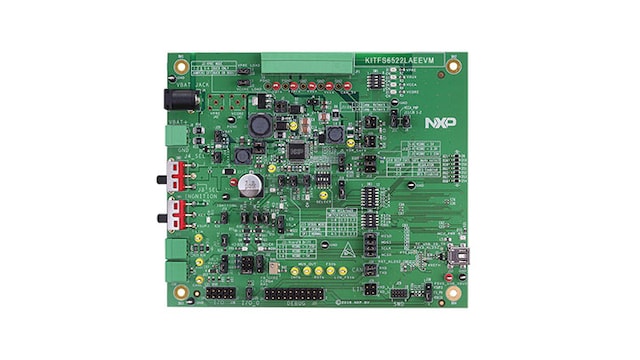

KITFS6522LAEEVM evaluation board demonstrates the functionality of MC33FS6522 supports CANFD & LIN with Vcore SMPS regulator up to 2.2A.These Safety SBCs target ISO26262 automotive functional safety standard.

NXP’s analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic ICs and system-in-package devices that use proven high-volume SMARTMOS technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state of the art systems.

The tool can be use in a standalone mode and controlled with an embedded USB interface. SPI command is easily controlled by the FlexGUI downloadable here.

MoreLess

KITFS6522LAEEVM Evaluation Board for FS6500 - Block Diagram

Specifications

Technical and Functional Specifications

Microcontroller	KL25Z MCU installed on board for easy connection to host computer on USB link with monitoring features
Connectivity	CAN FD and LIN bus (LIN exclusive with FS1B) FS0B & FS1B output pins (FS1B exclusive with LIN) Connectors allowing easy access to digital signals
Power Management	VCORE configuration: 1.23 V, 3.3 V, 5.0 V VCCA, VAUX configuration - 3.3 V or 5.0 V, with internal PMOS or external PNP Vpre regulator with a Buck or Boost setting

Supported Devices

Power Management

Functional Safety SBCs

FS6500 : Grade 1 and Grade 0 safety power system basis chip with CAN flexible data transceiver

Processors and Microcontrollers

L Series|Ultra-low Power|M0+

KL2x : Kinetis^® KL2x-72/96MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core

MoreLess

Buy

KITFS6522LAEEVM ^Active
Evaluation kit - FS6522, System Basis Chip, DCDC 2.2A Vcore LDT, CAN, LIN
- Evaluation board
- Cable, Mini USB A to B
- 3x 10 pos Connector
- 1x 2 pos Connector

KITFS6522LAEEVM
1 @ US
$175.00

Buy Direct

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documents and Software

Getting Started with the KITFS6522LAEEVM

Everything you need to get started with the KITFS6522LAEEVM Evaluation Board
FS65 and FS45 Power System Basis Chip Product Families
- 18 Aug 2017
- 335.0 kB
FlexGUI
- 12 May 2016
- 3.1 MB
KTFS4500-FS6500UG, KITFS6522LAEEVM, KIT6523CAEEVM and KIT4503CAEEVM evaluation boards - User’s guide
- 13 May 2016
- 3.1 MB
FLEXGUIUG, Flexible Graphical User Interface (FlexGUI) - User's guide
- 13 May 2016
- 2.3 MB
KITFS6522LAEEVM - Printed Circuit Board bill of materials and design files
- 29 Jul 2016
- 7.2 MB

Documents

Data Sheet (1)

FS6500-FS4500SDS, Safety Power System Basis Chip with CAN FD and LIN Transceivers - Short data sheet^{(REV
1.0
)}

The FS6500/FS4500 SMARTMOS devices are a multi-output, power supply, integrated circuit, including CAN Flexible Data (FD) and/or LIN transceivers, dedicated to the automotive market.
- 15 Dec 2017
- pdf
- 752.2 kB
- FS6500-FS4500SDS
- [ English ]

Fact Sheet (1)

FS65 and FS45 Power System Basis Chip Product Families^{(REV
2
)}

The FS45 and FS65 families combine power management with its own monitoring in conjunction with the microcontroller system’s monitoring.
- 18 Aug 2017
- pdf
- 335.0 kB
- FS65-FS45-FS
- [ English ]

Users Guide (3)

FS6500-FS4500SMUG, Safety manual for FS6500 and FS4500 - User's Guide^{(REV
2.0
)}

This document discusses requirements for the use of the FS6500 and FS4500 system basis chip (SBC) family in functional safety relevant
- 28 Jun 2016
- pdf
- 1.5 MB
- FS6500-FS4500SMUG
- [ English ]
KTFS4500-FS6500UG, KITFS6522LAEEVM, KIT6523CAEEVM and KIT4503CAEEVM evaluation boards - User’s guide^{(REV
1.0
)}

The KITFS6522LAEEVM, KITFS6523CAEEVM, and KITFS4503CAEEVM are hardware evaluation tools supporting system designs based on NXP's FS4500 and FS6500 product families.
- 13 May 2016
- pdf
- 3.1 MB
- KTFS4500-FS6500UG
- [ English ]
FLEXGUIUG, Flexible Graphical User Interface (FlexGUI) - User's guide^{(REV
1
)}

FlexGUI is a set of hardware and software tools that allow the user to program and??configure a dedicated integrated circuit.
- 13 May 2016
- pdf
- 2.3 MB
- FLEXGUIUG
- [ English ]

Design Resources

Design Tools & Files ( 1 )

Printed Circuit Boards and Schematics ( 1 )

KITFS6522LAEEVM - Printed Circuit Board bill of materials and design files ^{(REV
1
)}

Available files and documentation for printed circuit board manufacturing
- 2016-07-29 00:00:00
- zip
- 7.2 MB
- KITFS6522LAEEVM_BOM_SCH
Download

Software

Embedded Application Software ( 1 )

Embedded Application Software - miscellaneous ( 1 )

FlexGUI^{(REV
1.0
)}

Graphical User Interface supporting FS4500 and FS6500 Analog products.
- 2016-05-12 00:00:00
- zip
- 3.1 MB
- FLEXGUI
Download
