Name: TJA1410 Standalone PMD Transceiver Evaluation Board
Price: 113.50 USD
Availability: BackOrder

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click image to open expanded view

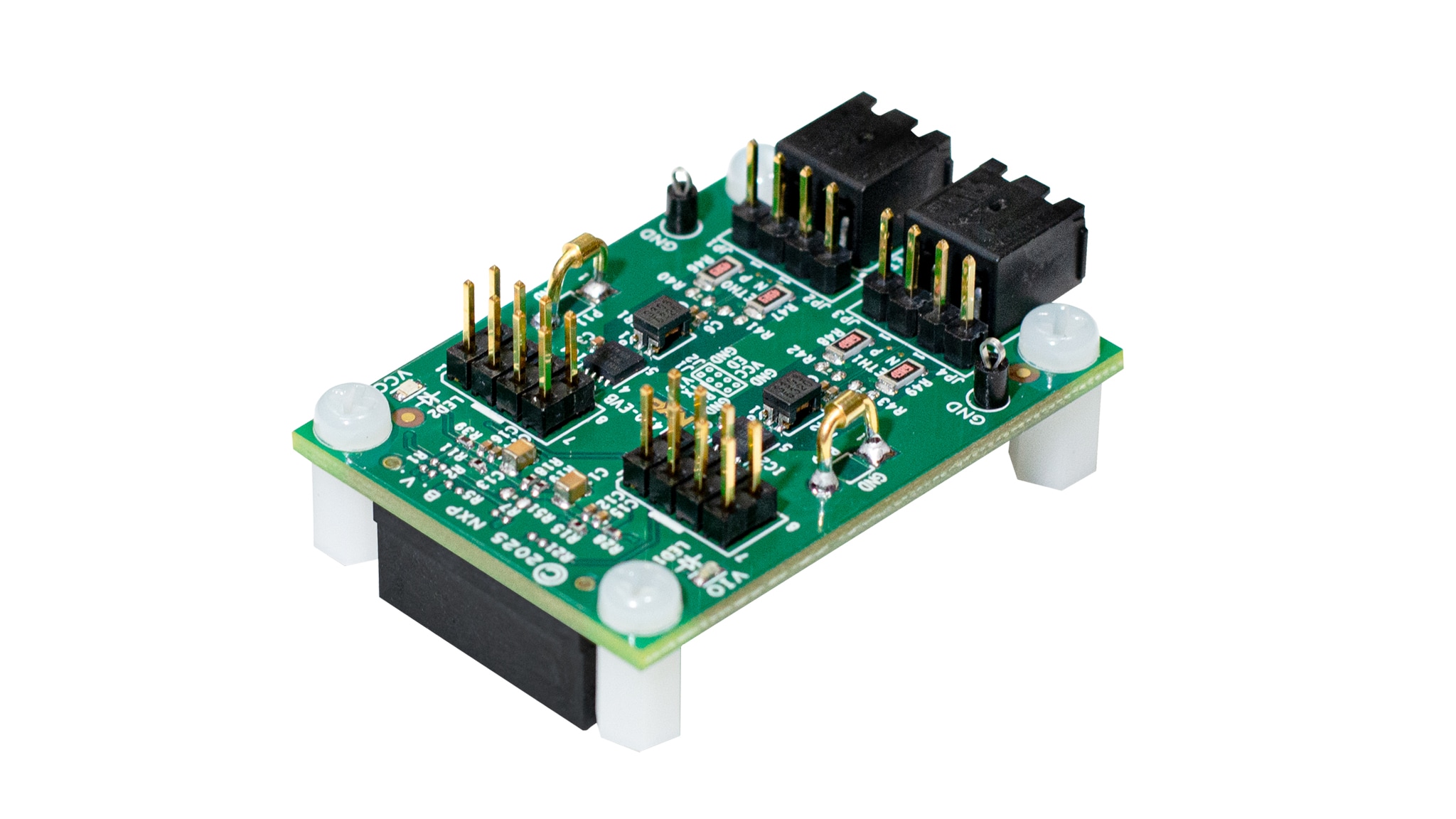

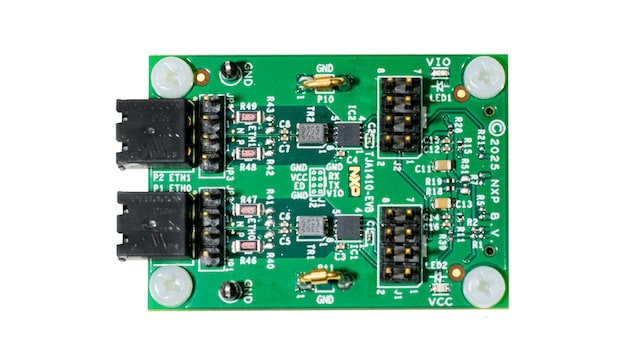

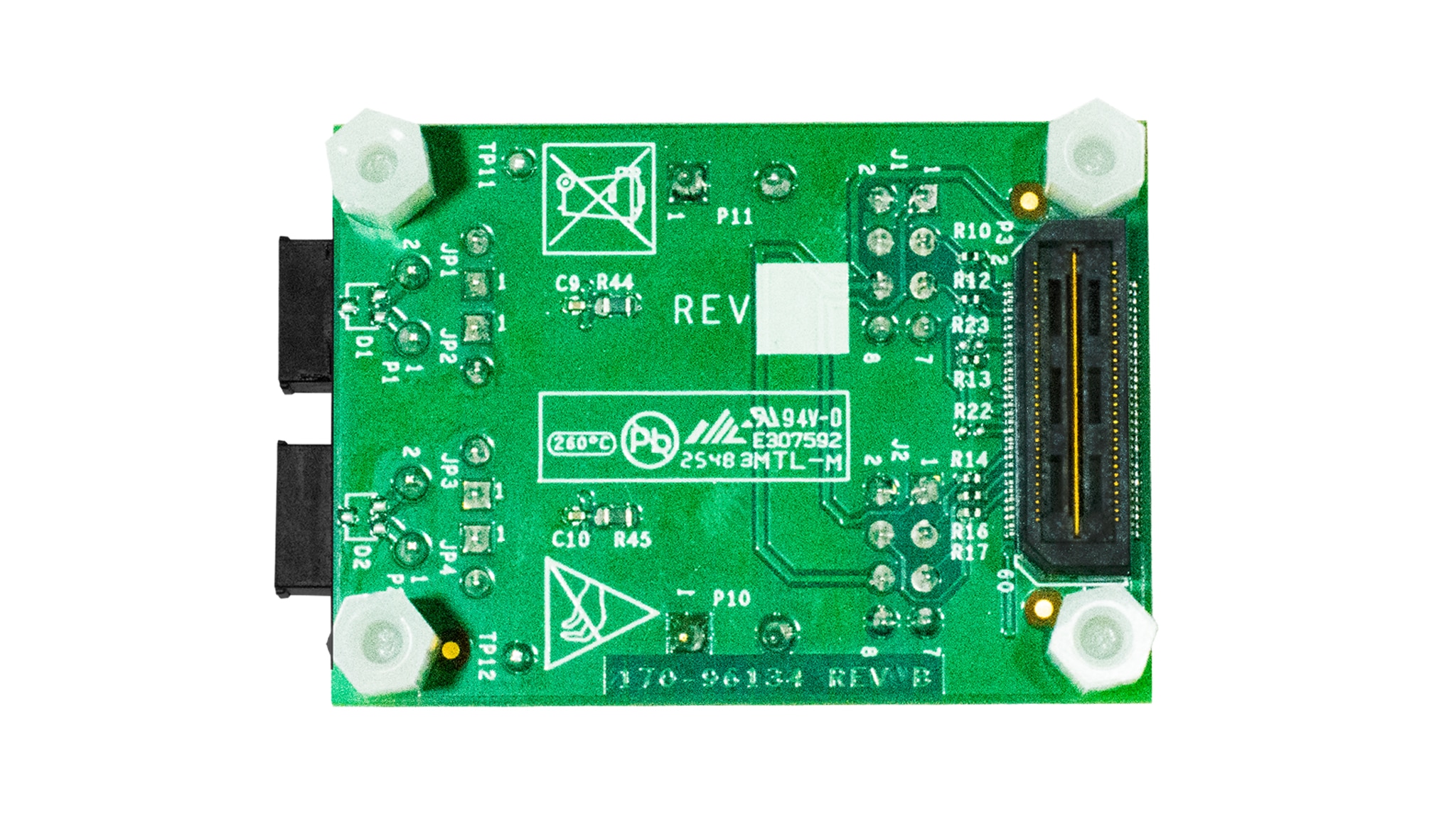

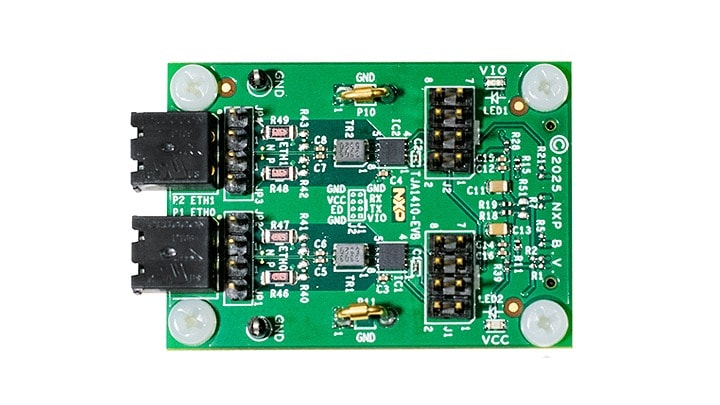

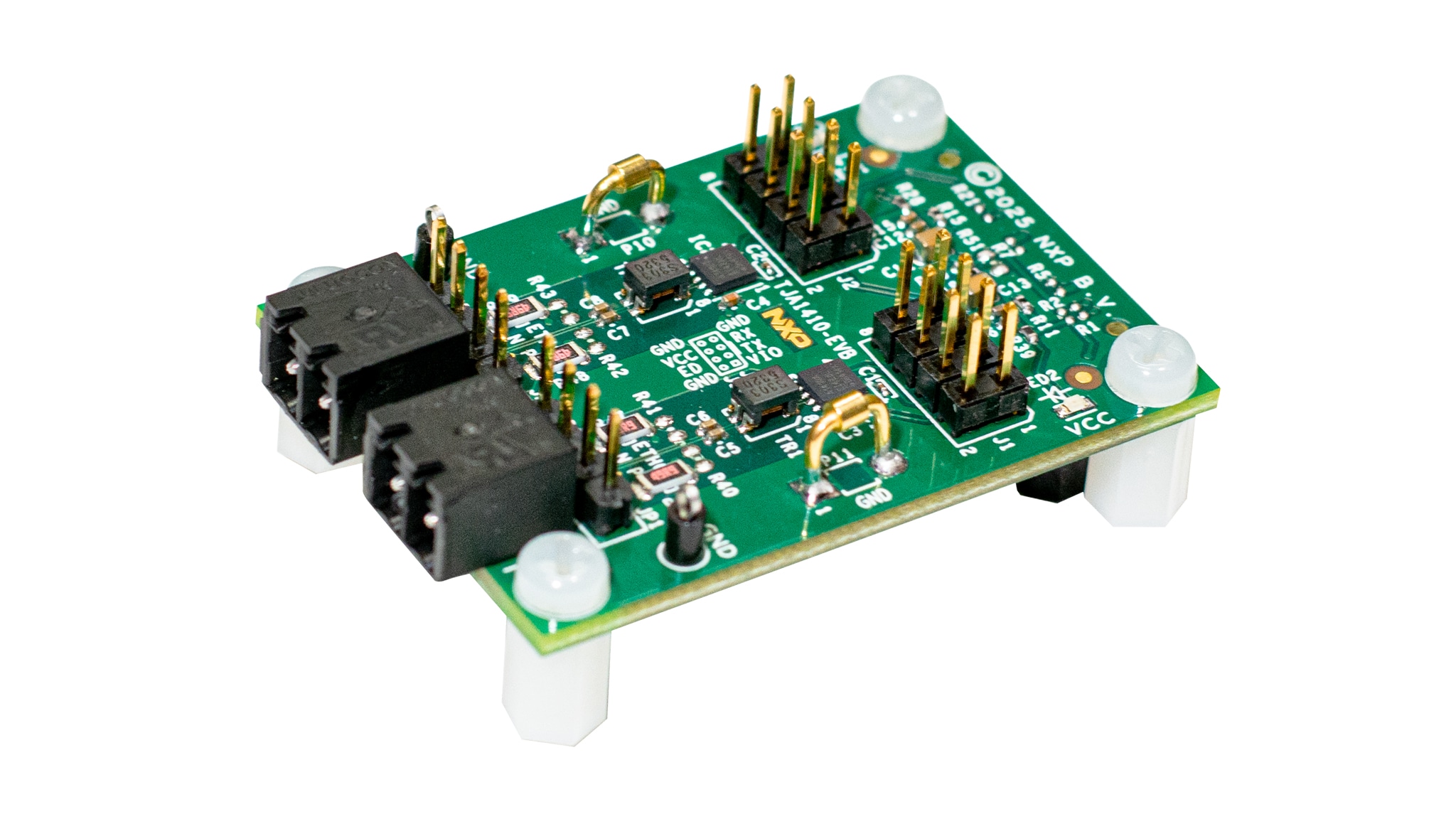

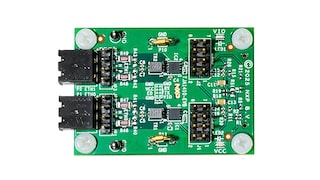

This PMD transceiver evaluation board features two TJA1410 PMD transceivers and 240 µH 10BASE-T1S common-mode chokes. Its compact form factor enables fast and convenient evaluation of 10BASE-T1S networks and the TJA1410 device. The board easily interfaces—via standard ribbon-cable connections—with a wide range of MCU evaluation boards that integrate an Ethernet MAC and 10BASE-T1S digital PHY IP, allowing developers to quickly prototype, test, and characterize PMD-level performance.

Design Files

Software

Product Details

Block Diagram

TJA1410-EVB

Get diagram PDF

Supported Devices

Interfaces

Industrial Ethernet PHYs

TJF1410: 10BASE-T1S Physical Medium Dependent (PMD) Industrial Transceiver

Automotive Ethernet PHYs

TJA1410: TJA1410, 10BASE-T1S PMD Transceiver

Automotive Ethernet Switches and Network Controllers

S32J100: S32J100 High-Performance Ethernet Switch and Network Controller

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

S32K5: S32K5 Automotive Microcontrollers

S32N Vehicle Super-Integration Processors

S32N7: S32N7 Super-Integration Processor for Software-Defined Vehicles

Features

2 10BASE-T1S PMD transceiver channels via 2x TJA1410A
2x 240 uH 10BASE-T1S Common Mode Chokes
End-node termination jumper
MDI connector
Two Open Alliance PMD transceiver interface connector options
Supply indicator LEDs

Buy Options

Click to expand

TJA1410-EVB
Active

TJA1410: Standalone PMD Transceiver Evaluation Board.

Kit Contains

TJA1410-EVB and two plug-in connectors in an antistatic bag

$113.50 USD

Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.
