S32N7 Super-Integration Processor for Software-Defined Vehicles

S32N7
Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.

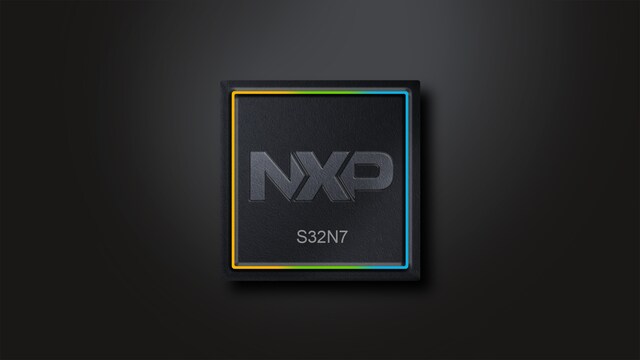

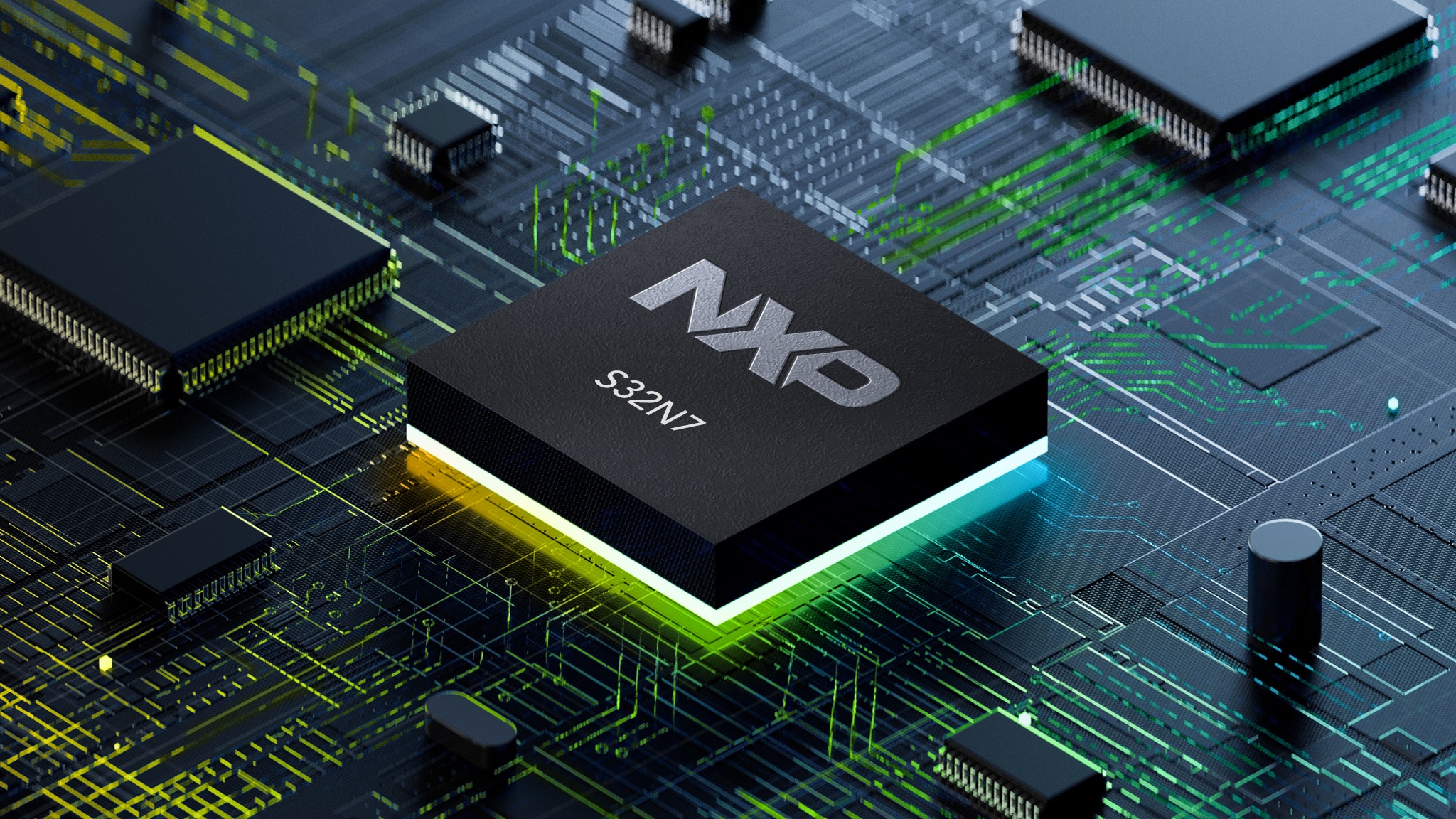

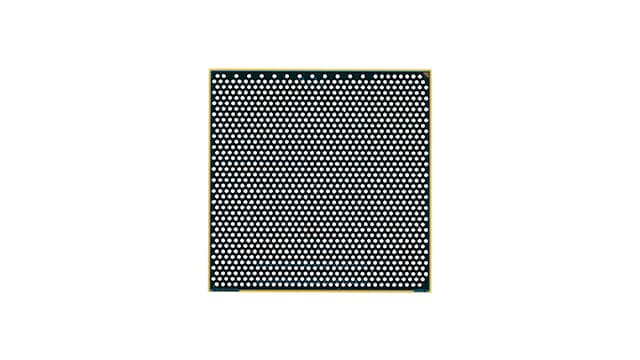

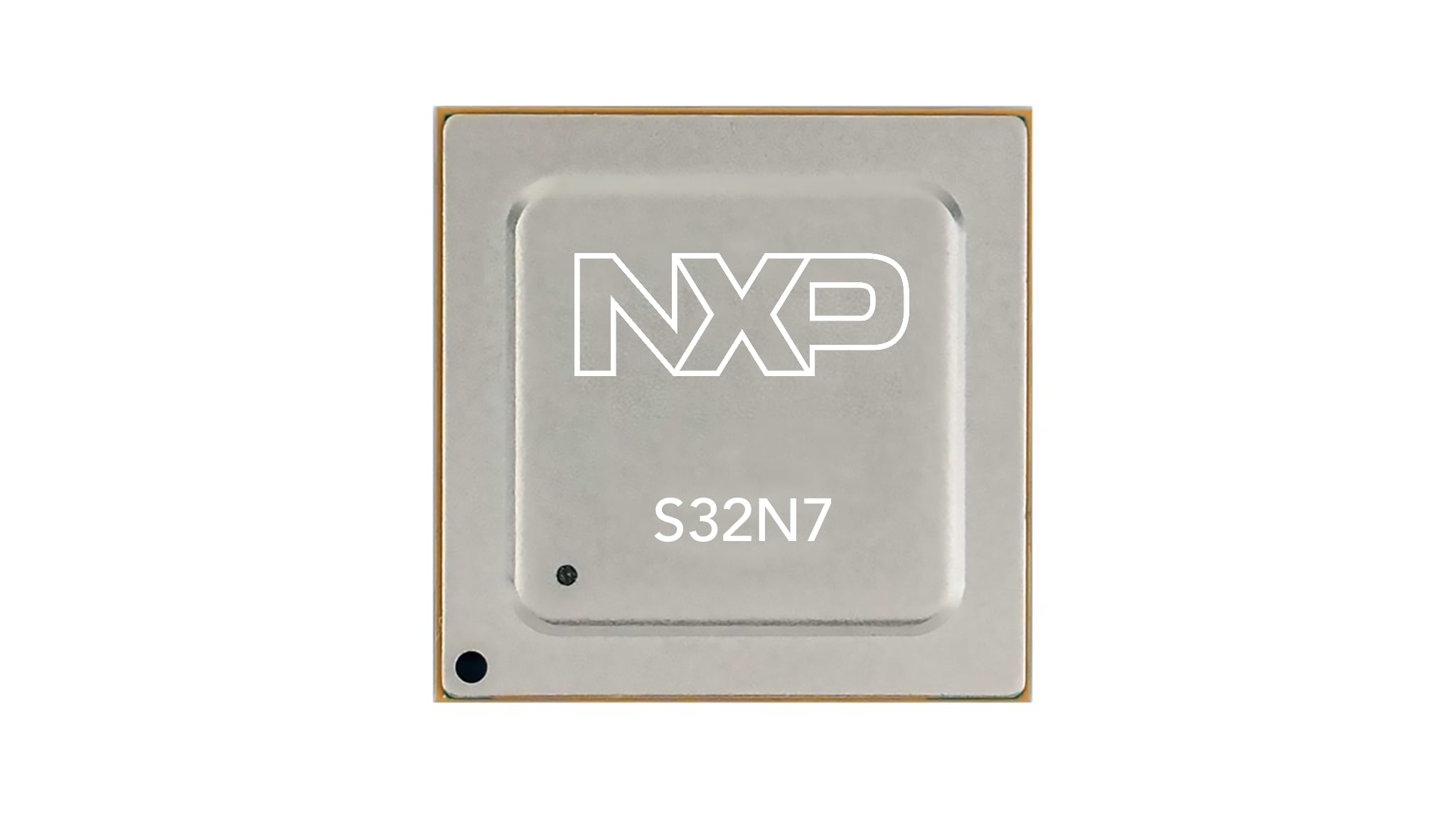

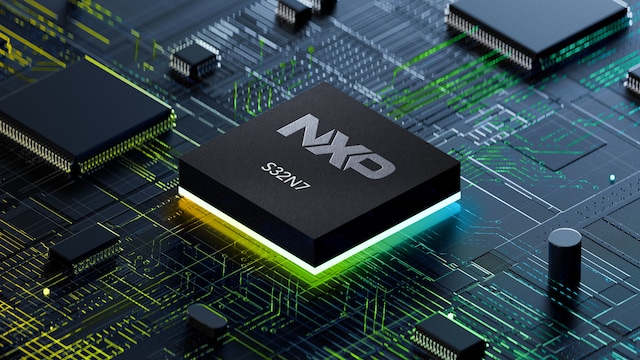

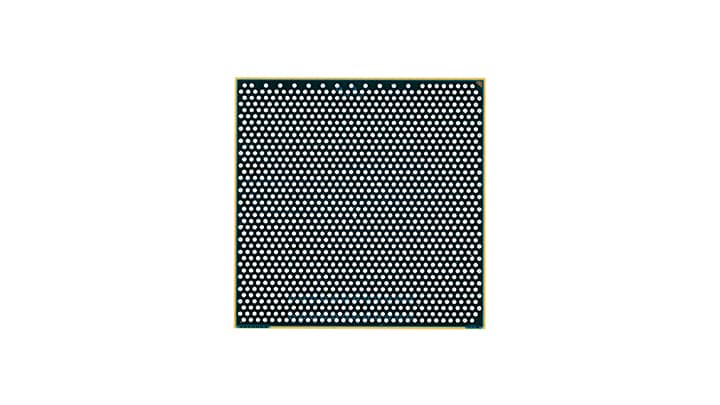

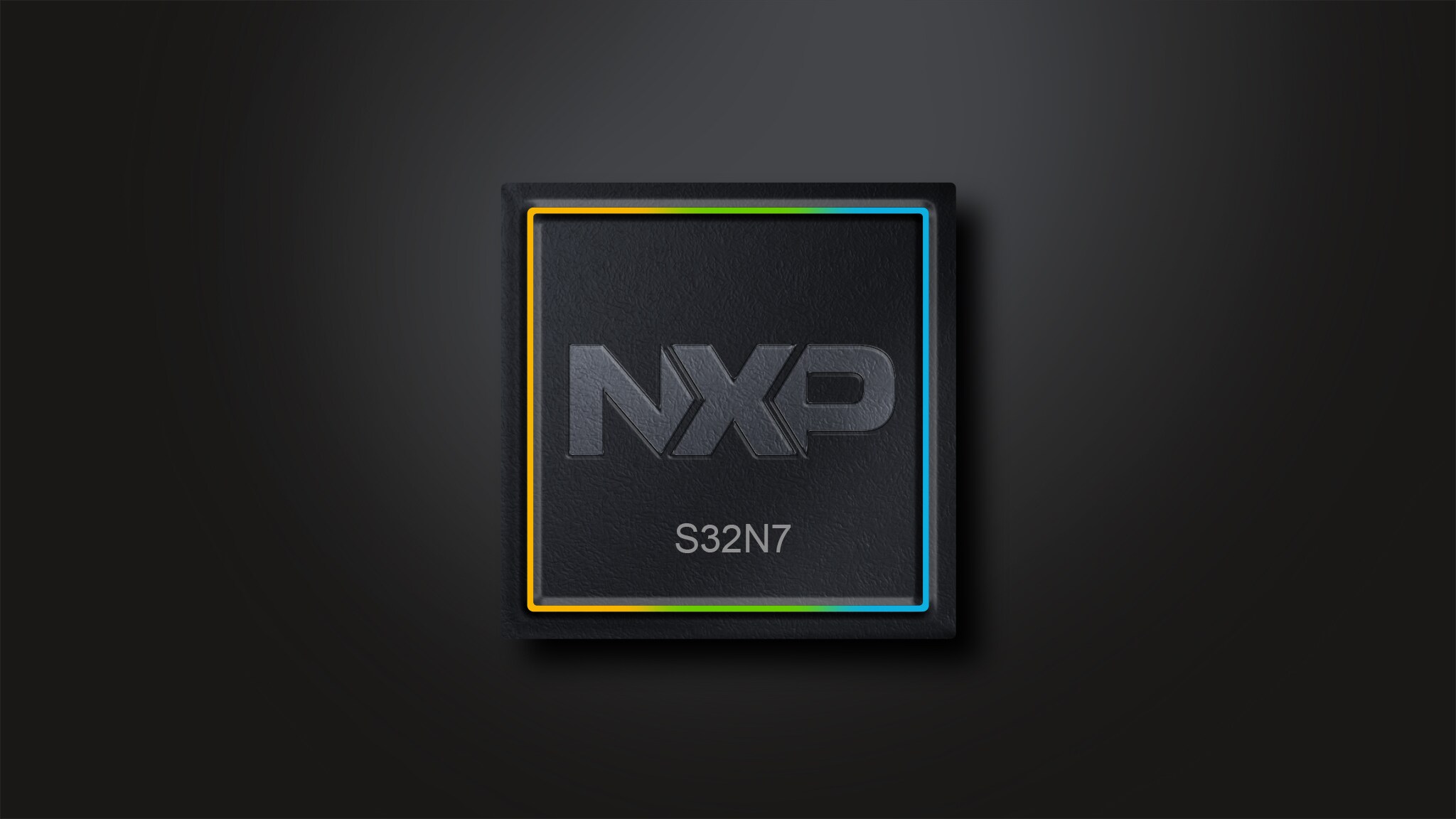

Click image to open expanded view

NXP’s S32N7 processor series breaks silos to drive cross-domain innovation through Edge AI, with a mission to deliver differentiating value at the heart of the software-defined vehicle (SDV).

S32N7 enables vehicles to become intelligent and evolve through AI and frequent over-the-air (OTA) updates. It consolidates up to eight domains within safe hardware partitions, delivering ASIL D real-time performance and robust cybersecurity.

  • Application cores unlock efficient data orchestration
  • Integrated communication engines enable low-latency access to zones, sensors and actuators
  • Built-in AI/data accelerators support predictive intelligence
  • Peripheral Component Interconnect express (PCIe) enables seamless data flow and modular expansion while compatible system on a chip (SoC) variants and a unified software enable reuse and scalable platform implementations

S32N7 empowers OEMs to drive innovation, set new benchmarks for quality and serve multiple markets. Use cases include cost-cutting predictive insights for fleet managers and enhanced user experience for drivers, both delivering unmatched efficiency, safety and personalization.

Block Diagram

S32N7

S32N7 Block Diagram
Get diagram PDF

Features

Processors

  • Up to 8x split-lock Arm® Cortex®-A78AE cores operating at up to 1.8 GHz
  • Up to 12x split-lock Arm Cortex-R52 cores operating at up to 1.4 GHz
  • Reduced instruction set computer (RISC-V)-based accelerator for networking, math and data-intensive workloads
  • eIQ® Neutron neural processing unit (NPU) for vehicle-core NeuroNetwork offload
  • Independent safety system manager
  • Independent safety communication manager
  • Independent housekeeping controller

Low-Power Modes

  • Up to 5x power modes supporting always-ON, ultra-low-power and AI-enabled low-power operation capabilities
  • Suspend-to-RAM support
  • Periodic wake support

Memory

  • Up to 2x low-power double data rate (LPDDR) 4X/5/5X DRAM interfaces
  • Up to 36 MB platform static random-access memory (SRAM)
  • 2x channel non-volatile memory (NVM) interface supporting serial, quad and octal NOR memory
  • 1x universal flash storage (UFS) 3.1 interface
  • eMMC 5.1 NAND flash and SD card/secure digital input output (SDIO) flash support

Application Integration

  • Full on-chip hardware isolation and virtualization for isolated and mixed‑criticality applications applications
  • Core-to-pin virtual hardware isolation technology supports freedom from interference

Functional Safety

  • Independent system manager handles the functional safety across all SoC partitions
  • Hardware provides freedom from interference and virtualized Quality of Service (QoS) mechanisms for shared resources
    • Keeps fault impact at the integrated-ECU level with local reactions
    • Runtime operating mode, safe-stop and reset all controlled individually for each integrated electronic control unit (ECU), reducing the number of faults that lead to SoC reset
  • Processor developed according to processes that are certified to ISO 26262 for ASIL D functional safety

Security

  • The integrated high security engine (HSE2) security engine provides advanced, future‑proof security capabilities and high performance to enable:
    • A post‑quantum hardware root‑of‑trust
    • Fast secure boot plus security services and key management
    • Secure debug and secure update
    • Real‑time, high‑speed message signing, authentication and encryption for secure communications and more
  • Public key infrastructure and side-channel attack resistance
  • Distributed security approach to provide increased availability of security services, increased parallelism of security operations, clearer prioritization between tasks and minimized latency
  • Developed according to cybersecurity processes that are certified to ISO/SAE 21434, UN R155 and also targeted for SESIP Level 2 certification
  • Up to 2x asymmetric crypto accelerators support secure communications and secure OTA updates
  • Up to 2x symmetric accelerators in-vehicle communications

Communication and Networking

  • An independent communication subsystem manages low-speed communication interfaces
  • Controller area network Hub virtualizes CAN I/O and allows applications to share CAN I/O pins, routes CAN frames to multiple CAN controllers and offloads CAN-to-CAN routing from the host core
  • Multiple controller area network flexible data-rate (CAN FD), controller area network extended length (CAN XL), local interconnect network (LIN) and FlexRay® interfaces
  • Integrated Time-Sensitive Networking (TSN) Ethernet switch supporting interfaces speeds between 10 Mbps to 10 Gbps
  • Per-port Inline encryption with media access control security (MACsec) acceleration
  • PCIe Gen 4 (Root Complex)
  • PCle engine with support for multiple services including Non-Transparent Bridge (NTB)
