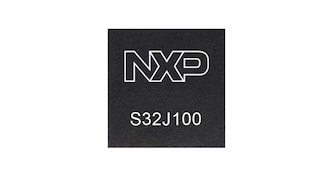

S32J100 High-Performance Ethernet Switch and Network Controller

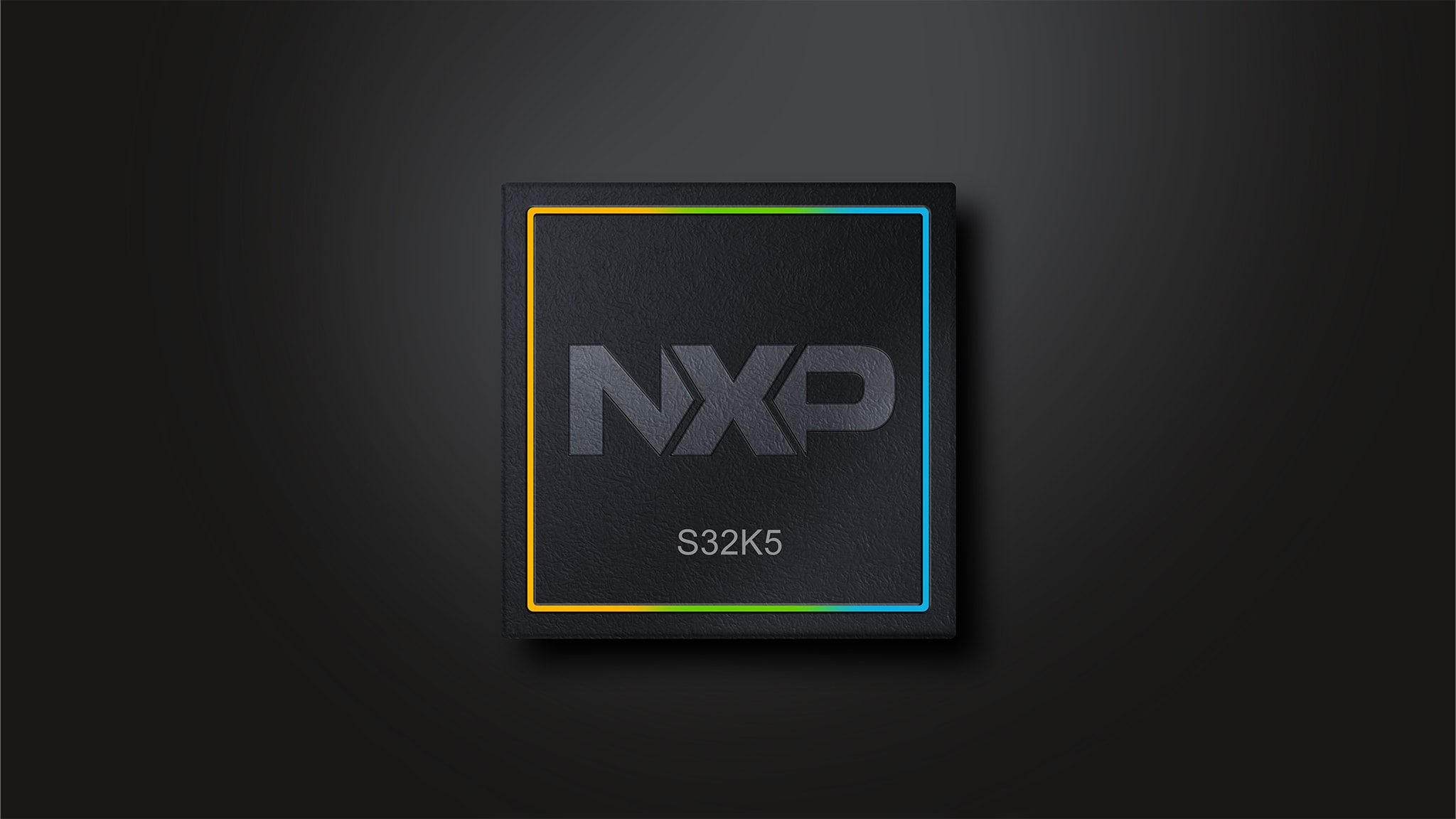

S32K5 Automotive Microcontrollers
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.
The S32K5 product series expands the S32K3 series to higher performance, larger memory, and increased vehicle network communication capability at low power consumption. With Arm® Cortex®-M7 and Cortex-R52 cores in single, multiple or lockstep configurations, Ethernet, CAN FD and the innovative MRAM memory module, the S32K5 offers a scalable setup to develop from IO aggregators to body, comfort or chassis zone controller applications.
- Zone controller or Domain controller
- IO aggregator
- Body control module
- Climate control unit
- Lighting control unit
- Chassis and safety controller
The S32K5 offers multi-layer hardware isolation, safe recovery, hardware security engine (HSE) with post-quantum security features and ASIL D safety compliance to develop safe and secure zone controllers. NXP supports the S32K5 MCU series with a rich set of easy-to-use software and development tools from NXP and certified partners and offers multiple development tools to reduce the complexity of automotive electronic control unit development.
Product Details
Features
Scalable Single Platform
- Single, multiple or lockstep Arm® Cortex-M7® cores and Arm® Cortex® R52 cores, 200-800 MHz plus a signal processor (DSP)
- up to 41 MB MRAM
- Firmware over-the-air (FOTA) - Flexible A/B firmware swap with zero downtime and roll-back support. Automatic address translation
- Low-power run and standby modes, fast wake-up, clock and power gating
- BGA packages
- AEC-Q100 qualified Grade 1: -40 ° C to 125 ° C
Safety, Security and Connectivity
- ISO 26262 up to ASIL D
- The integrated HSE2 security engine provides advanced, future-proof security capabilities and high performance, enabling a post-quantum hardware root-of-trust, fast secure boot, secure debug and secure update; real-time, high-speed message signing, authentication and encryption for secure communications; and more
- Ethernet (2.5 G / 1 G /100 M /10 BaseT1S) switch integrated, CAN FD/XL, serial audio interface, QSPI
Production-Grade Software
- S32 Design Studio IDE - Eclipse, GCC and debugger, 3rd party support
- Real-Time Drivers - free of charge (AUTOSAR and non-AUTOSAR), ASIL-D compliant
- Security firmware - NXP provided, field upgradable
- S32 Safety Software Framework (SAF) and Structural Core Self-Test (SCST) library
- Safety Peripheral Drivers
- Model-Based Design Toolbox (MBDT) for MATLAB®
- Inter-Platform Communication Framework (IPCF)
