UJA1161A Evaluation Board

UJA1161A-EVB
Active

Roll over image to zoom in

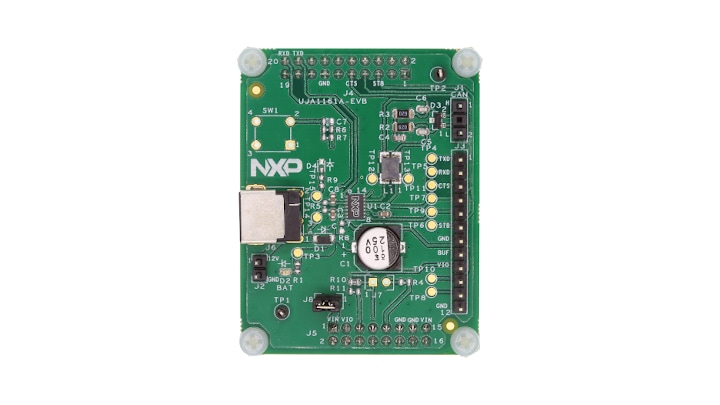

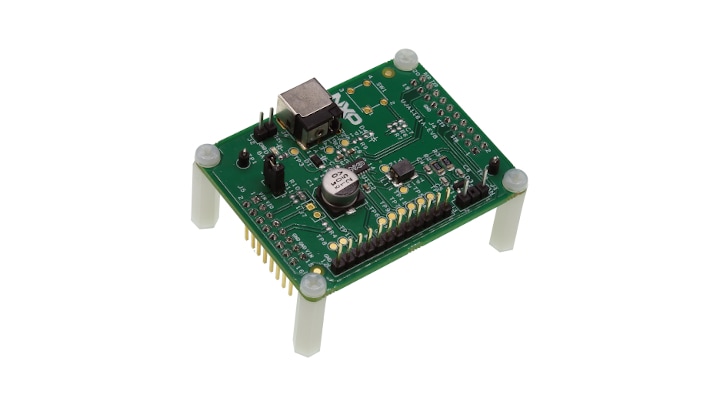

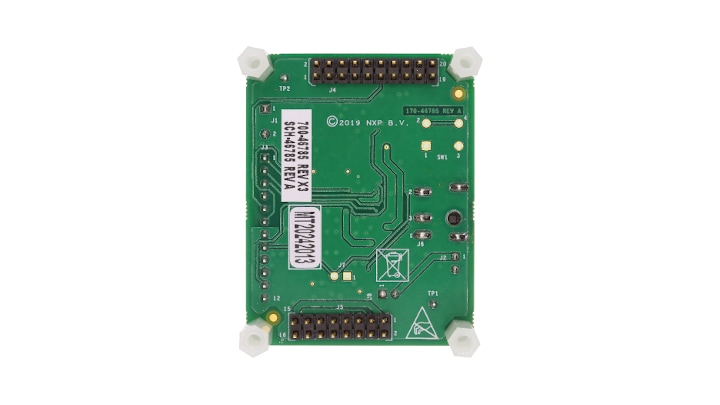

The UJA1161A-EVB evaluation board is a supportive tool to develop system solutions using the UJA1161A Self-Supplied CAN Transceiver. The board is pin compatible with the Arduino Uno pinout order and can be used in combination with any microcontroller board providing USB-to-SPI interfacing.

Supported Devices

Interfaces

CAN with Flexible Data Rate

  • UJA1161ATK: Self-Supplied High-Speed CAN Transceiver with Standby Mode

Features

Key Features

  • Designed to facilitate the testing and evaluation of UJA116xA product features in a variety of microcontroller IO interface environment
  • Supporting Arduino connection with microcontroller board.
  • The board also provides several header rows (2.54 mm pitch) for connecting MCU interface and application signals
  • Board dimensions are 45.1 mm × 58.4 mm. Only components needed to support basic UJA116xA functionality are included
  • An external power supply of 12 V typ. must be connected to power-up the board

Buy Options

UJA1161A-EVB-Image

Click to expand

UJA1161A-EVB
Active

UJA1161A Evaluation Board.

    $81.40 USD
    In Stock :20

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
