Computer to Electrical Transport Protocol Link (ETPL) Dongle

KIT6X02AP2T1 new
Active

Roll over image to zoom in

The KIT6x02AP2T1 enables users to interface Electrical Transport Protocol Link (ETPL) devices with software running on a PC. This tool provides a simple and reliable way to evaluate ETPL communication and interact with NXP Battery Management System (BMS) solutions.

The kit includes a UART‑to‑USB translator cable, which interfaces with the UART‑based gateway and also supplies 5 V power. It also provides an ETPL cable for connecting to NXP BMS evaluation boards or customer hardware featuring the NXP ETPL interface.

Block Diagram

KIT6X02AP2T1

KIT6X02AP2T1 Block Diagram
Get diagram PDF

Supported Devices

Battery Management

Battery Cell Controllers

  • BMA7118: 18 Channel Li-Ion Battery Cell Controller IC ASIL D
  • BMA7418: 18 Channel Li-Ion Battery Cell Controller IC ASIL D with EIS

Battery Communication ICs

  • BMX6X02: General-Purpose BMS Communication Gateway and EIS Synchronization Controller

Battery Sensors

  • BMA8420: Battery Junction Box Monitor IC with EIS Capability
  • MC33777: Battery Junction Box Monitor IC

Features

Connectivity

  • Direct control from a PC via USB connection (VCP)
    • VCP communication speed at 2 Mbit/s
  • Two galvanically isolated eTPL ports
    • Supports TPL3 protocol version

Powering

  • Supply of the KIT-PC2TPLEVB from USB

Debug

  • Four status LEDs

Buy Options

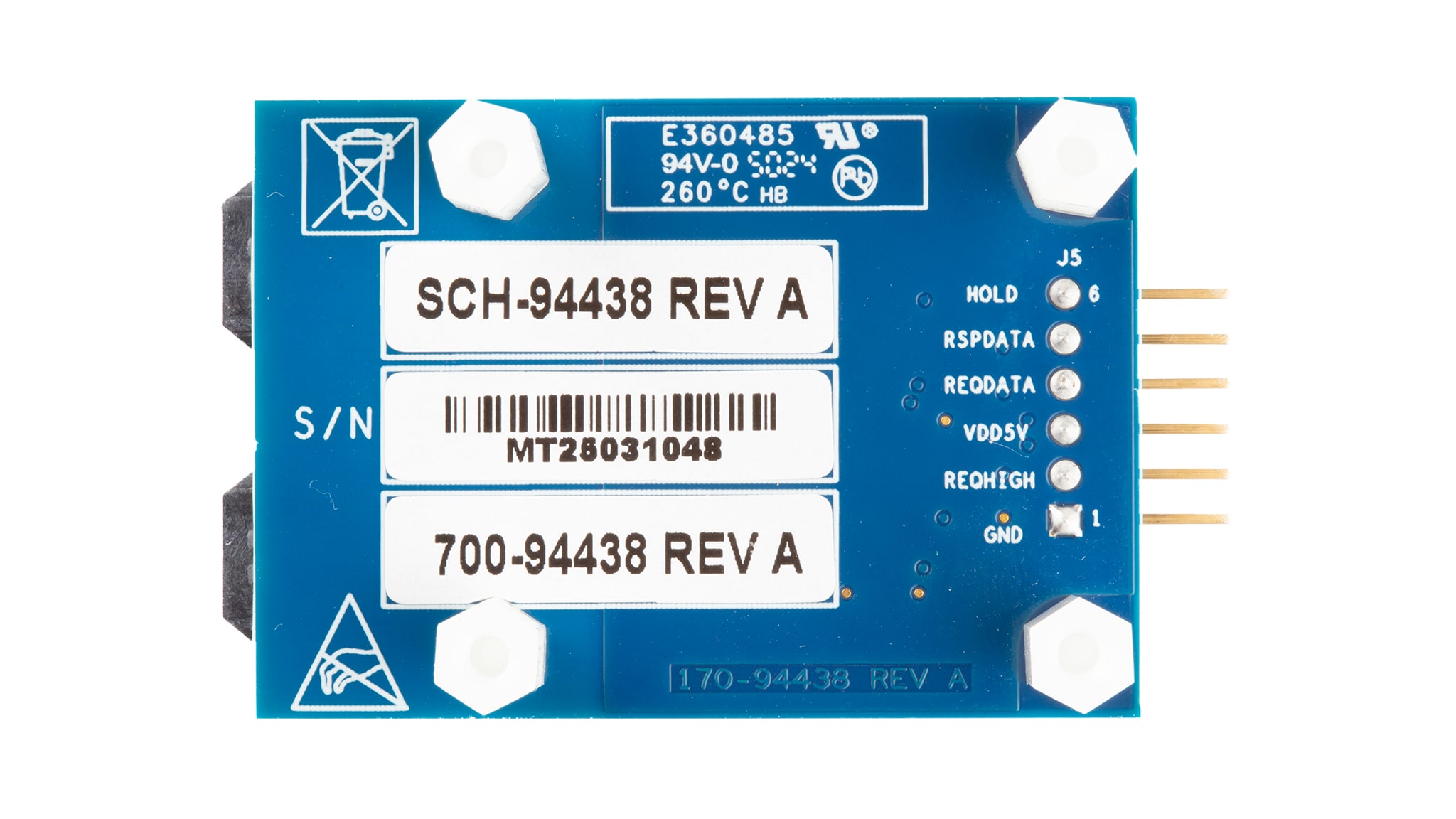

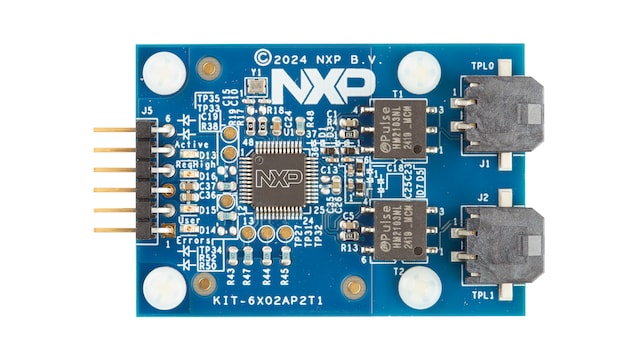

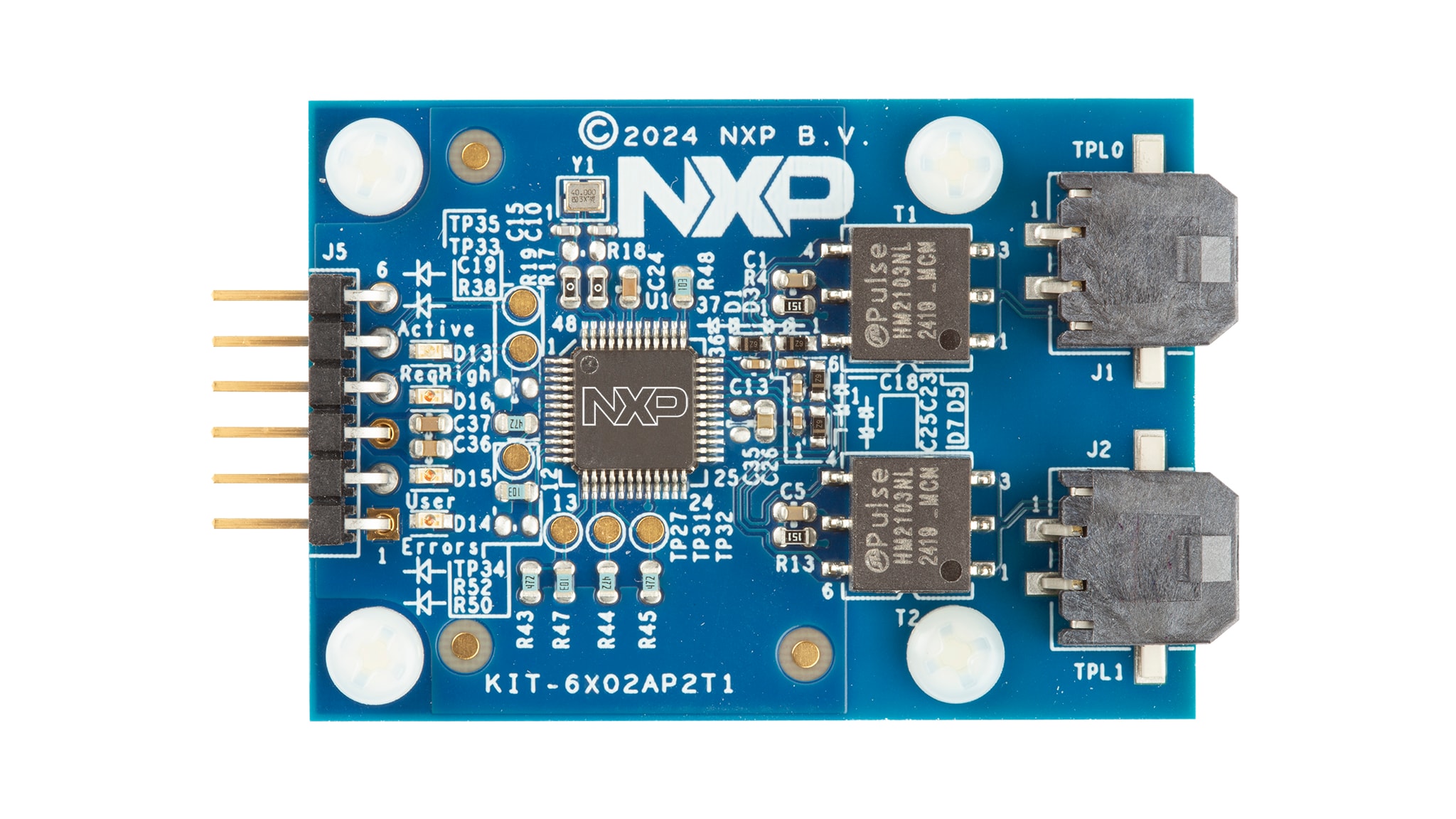

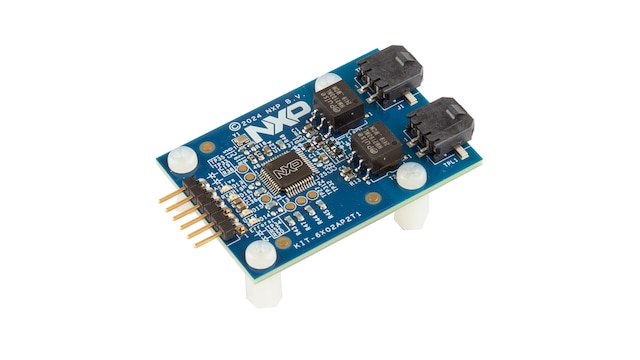

KIT6X02AP2T1-Image

Click to expand

KIT6X02AP2T1
Active

Computer to Electrical Transport Protocol Link (ETPL) Dongle.

    $171.76 USD
    In Stock :19

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
