PCT2075DP-ARD Arduino® Shield - Temperature Sensors

PCT2075DP-ARD

Roll over image to zoom in

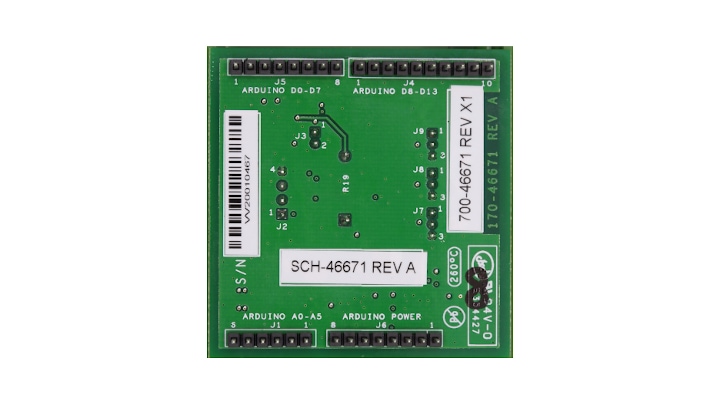

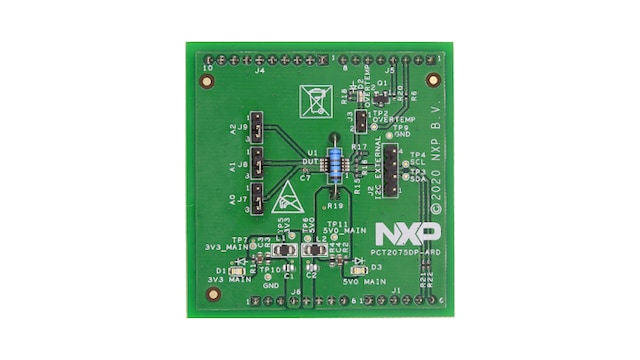

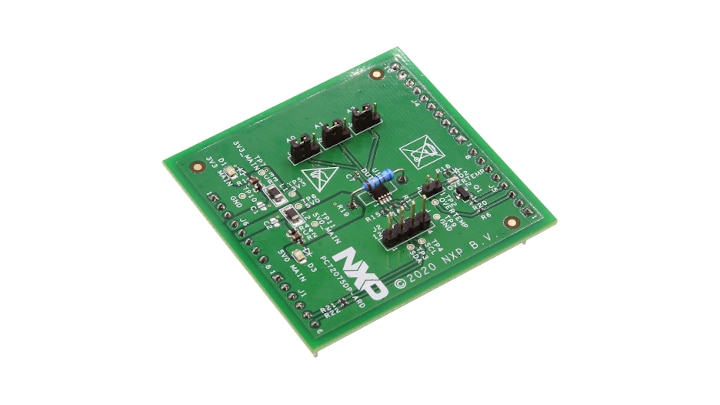

The PCT2075DP Arduino Shield features most of Temperature Sensor functionalities on a board compatible with Arduino R3 pin layout. A graphical interface allows the user to easily explore the different functions of the Temperature sensor.

Moreover, embedded driver and demo application can be found as reference code for quick getting started with your own application.

Product Details

Select a section:

Supported Devices

Sensors

I2C Digital Temperature Sensors

  • PCT2075: I2C-Bus Fm+, 1 Degree C Accuracy, Digital Temperature Sensor And Thermal Watchdog

Features

Power Supply

  • Supply voltage: 2.7 V to 5.5 V
  • Low current consumption in shut-down mode(<1.0uA)

Interface

  • Frequency range 20 kHz to 1 MHz with SMBus time-out to prevent hanging up the bus
  • 1 MHz Fast-mode Plus 30 mA SDA drive allows more devices on the same bus but is backward compatible to Fast-mode and Standard-mode

General Features

  • Pin-for-pin replacement for LM75 series but allows up to 27 devices on the bus
  • 11-bit ADC that offers a temperature resolution of 0.125°C
  • Temperature accuracy of:
    • ±1°C (max.) from -25°C to +100°C
    • ±2°C (max.) from -55°C to +125°C
  • Programmable temperature threshold and hysteresis set points during operation

Package

  • Small 8-pin package types: SO8, TSSOP8 and 2 mm x 3 mm HWSON8
  • Small 6-pin package type: TSOP6

Buy Options

PCT2075DP-ARD-Image

Click to expand

  • PCT2075DP-ARD

  • PCT2075DP-ARD Arduino® Shield - Temperature Sensors.

  • Kit contains:

    • PCT2075DP I2C-bus Fm+, 1 Degree C Accuracy, Digital Temperature Sensor And Thermal Watchdog on Arduino Shield form factor board
    • Quick start guide
  • $162.50 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor

Documentation

Quick reference to our documentation types.

Filters

3 documents

Design Resources

Select a section:

Design Files

Filters

1 design file

  • Printed Circuit Boards and Schematics

    PCT2075DP-ARD Design Files

    ZIPRev B1Feb 26, 2021 14:18:0011.5 MBPCT2075DP-ARD-DESIGN-FILES
    Download

Software

Filters

1 software file

  • Embedded Application Software - miscellaneous

    PCT2075DP_ARD_GUI

    MSIRev 1.0.2Mar 23, 2021 18:20:008.2 MBPCT2075DP_ARD_GUI
    Sign in required
    Download

Note: For better experience, software downloads are recommended on desktop.
