MPC5744P 3-phase PMSM Development Kit

MTRCKTSPS5744P

Roll over image to zoom in

The NXP MTRCKTSPS5744P motor control development kit is ideal for applications requiring one PMSM motor, such as power steering or electric powertrain.

  • Designed to enable rapid prototyping and evaluation of the motor control application early in the design process
  • Includes a 32-bit NXP MPC5744P MCU based controller board and the 3-phase low-voltage power stage board
  • Application software that provides a complete reference implementation of the PMSM motor control application and takes advantage of the Automotive Math and Motor Control Library Set

Product Details

Select a section:

Supported Devices

Interfaces

Automotive LIN Solutions

  • MC33905: SBC Gen2 with High-Speed CAN and LIN

Power Management

Pre-Drivers

  • MC33937: 3-Phase Field Effect Transistor Pre-Driver

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC574xP: Ultra-Reliable MPC574xP MCU for Automotive and Industrial Safety Applications

Features

Microcontroller (MCU)

  • 32-bit Power Architecture® based MPC5744P ultra-reliable MCU

Transistors

  • MC33937: 3 Phase Field Effect Transistor Pre-driver

System Basis Chip (SBC)

  • FS6500: Grade 1 and Grade 0 safety power SBC

Functional

  • DC-bus overvoltage, overcurrent, and under-voltage and stall fault detection

Connectors

  • JTAG and NEXUS debug connector

Power

  • Supports low-voltage PMSM motors with a resolver position sensor

Software enablement

  • ANSI-C based example SW created in S32 Design Studio for Power Architecture®
  • FreeMASTER visualization/configuration support
  • MCAT tool 1.1 part of software package

Buy Options

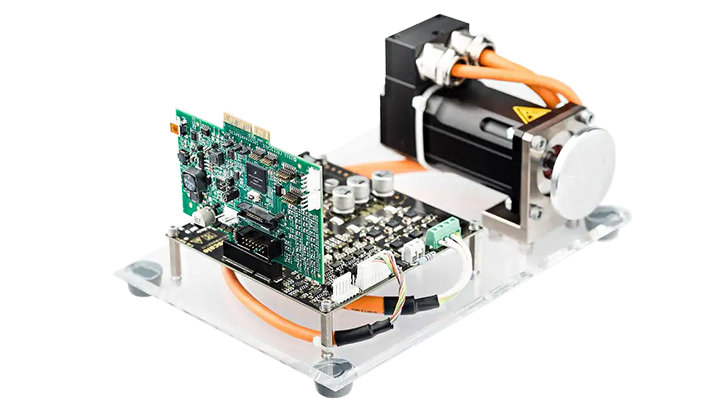

MTRCKTSPS5744P-Image

Click to expand

  • MTRCKTSPS5744P

  • MPC5744P Development Kit for 3-phase PMSM.

    • MPC5744P controller board
    • MC33937A power stage based on SMARTMOS pre-driver
    • 3-phase PMSM low-voltage motor
    • AC/DC 24 V universal power supply
    • USB cable
  • $1999.00 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 1
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
