TWR-KL28Z72M: Kinetis^® KL28 MCU Tower^® System Module

Overview

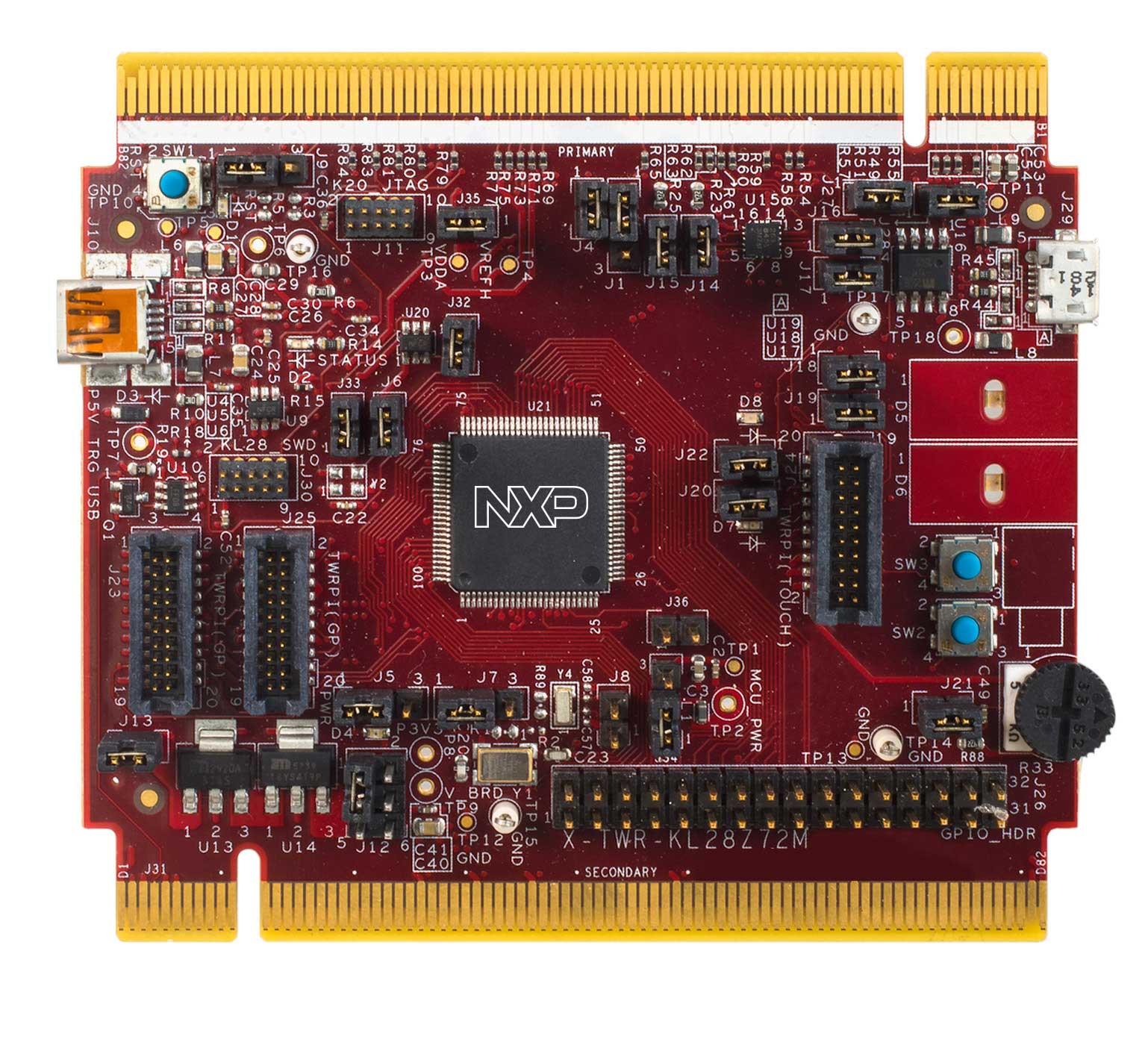

The TWR-KL28Z72M is a development board for the Kinetis KL28 32-bit MCUs.Features the Kinetis KL28 MCU with 512KB Flash, 128KB SRAM. Operates as a standalone debug tool and can also be combined and used as part of the modular Tower System development platform

MoreLess

TWR-KL28Z72M: Kinetis<sup>®</sup> KL28 MCU Tower<sup>®</sup> System Module

TWR-KL28Z72M: Kinetis KL28 MCU Tower System Module

MCU Minutes | MCUXpresso Software and Tools Overview

MCUXpresso Software and Tools

MCUXpresso Config Tools – A comprehensive suite of system configuration tools, including pins, clocks, SDK builder and more.

MCUXpresso SDK – An open-source software development kit (SDK) built specifically for your processor and evaluation board selections.

MCUXpresso IDE – An easy-to-use integrated development environment (IDE) for creating, building, debugging, and optimizing your application.

Specifications

Supported Devices

Processors and Microcontrollers

KL Series Cortex-M0+

KL28 : Kinetis^® KL28-72/96 MHz, 512KB Flash, USB, Ultra-Low-Power Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core

MoreLess

Technical and Functional Specifications

MKL28Z512VLL7 MCU (72 MHz, 512 KB flash, 128 KB RAM, 32 KB ROM, 100 LQFP packages)
Three-Axis Digital Accelerometer, MMA8451Q
Onboard serial and debug adapter
I/O headers for easy access to MCU I/O pins
Flexible power supply options: USB, coin cell battery, external source
Capacitive touchpad
Reset pushbutton
NMI and LLWU buttons
4 x LEDs

Buy

TWR-KL28Z72M ^Active
Tower System Development Board for Kinetis KL28 MCUs
- TWR-KL28Z72M Tower System module
- Quick start guide
- Supporting cable

TWR-KL28Z72M
1 @ US
$149.00

Buy Direct

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.
