TJA1100 Automotive Ethernet 100BASE-T1 PHY Evaluation Board

OM14500-TJA1100

Roll over image to zoom in

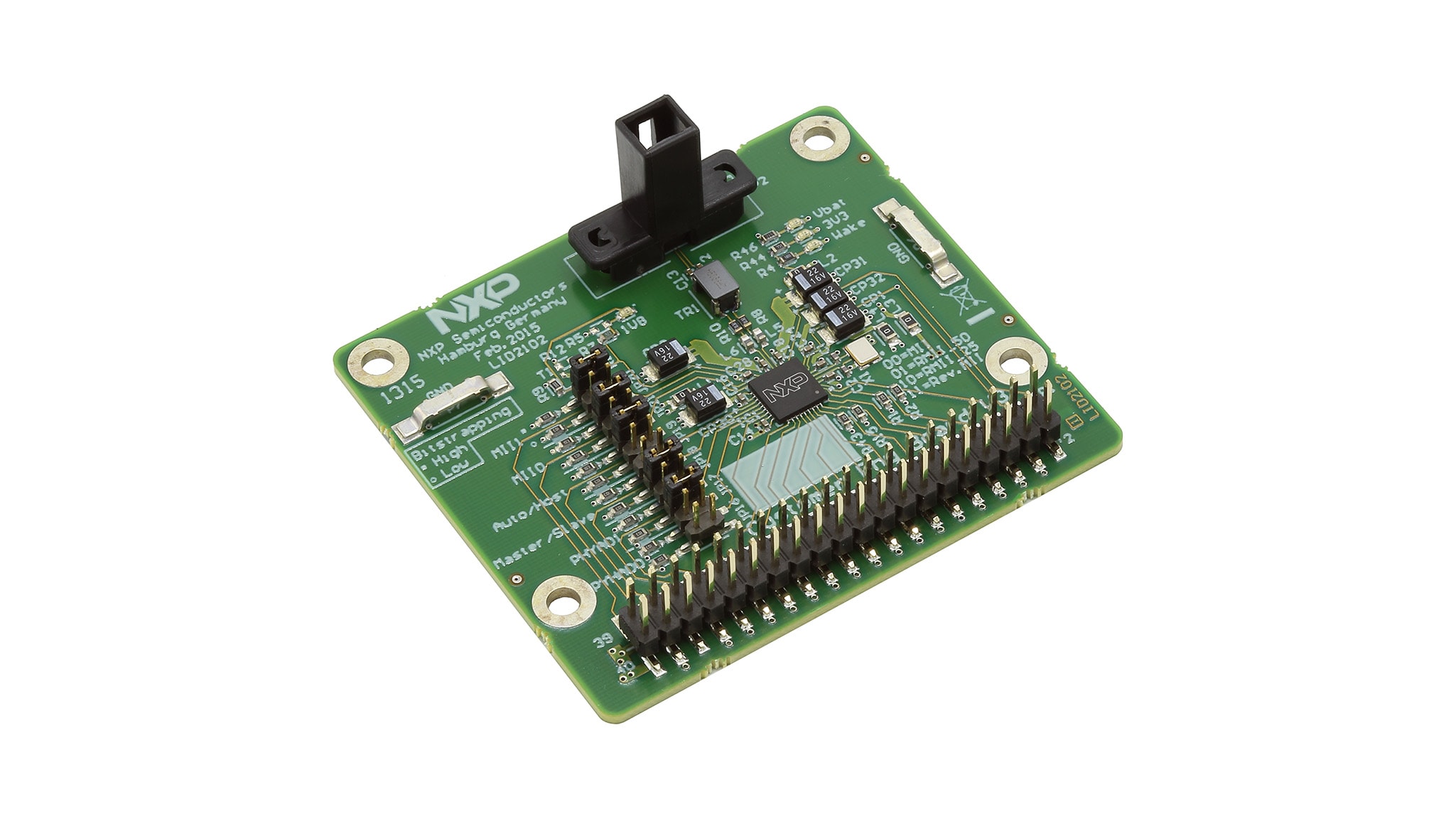

The TJA1100HN customer evaluation board is a low-cost hardware development tool which supports the functional evaluation of the TJA1100HN 100BASE-T1 PHY transceiver.

The board provides straight access to the MDI and MII interfaces of the chip. The 40-pins standard header allows for quick connection to the host controller. Simple screw connectors adapt flexibly an (unshielded) twisted pair of wires. Jumper settings take care of the chip configuration during startup.

Product Details

Select a section:

Supported Devices

Interfaces

Automotive Ethernet PHYs

  • TJA1100HN: IEEE 100BASE-T1 Compliant Automotive Ethernet PHY Transceiver

Features

General Specifications

  • A quick evaluation of TJA1100 and 100BASE-T1 connectivity at ECU prototyping stage
  • Simple chip configuration
  • Config pin strapping by jumper settings
  • Screw connector avoids complicated cable assembly
  • Chip status report via onboard LEDs

Connectivity

  • 40-pin standard header (2,54 mm pitch) to Host Controller MII

Buy Options

OM14500-Image

Click to expand

  • OM14500

  • 100BASE-T1 PHY Evaluation Board.

  • Kit Contains:

    • TJA1100 100BASE-T1 PHY evaluation board
    • 1X TJA1100HN customer evaluation board
    • 1X unshielded twisted pair cable (automotive grade)
Buy Options

Documentation

Quick reference to our documentation types.

Filters

2 documents

Design Resources

Select a section:

Design Files

Filters

2 design files

  • Printed Circuit Boards and Schematics

    LID2262 Gerber Files

    ZIP9.5 MBLID2262-GRBR
    Download
  • Printed Circuit Boards and Schematics

    OM14500 Schematics

    PDFRev AMar 23, 2017 11:18:006.2 MBOM14500-SCH
    Download
