Overview

The DSP56303 is intended for use in telecommunication applications, such as multi-line voice/data/fax processing, videoconferencing, audio applications, control, and general digital signal processing.

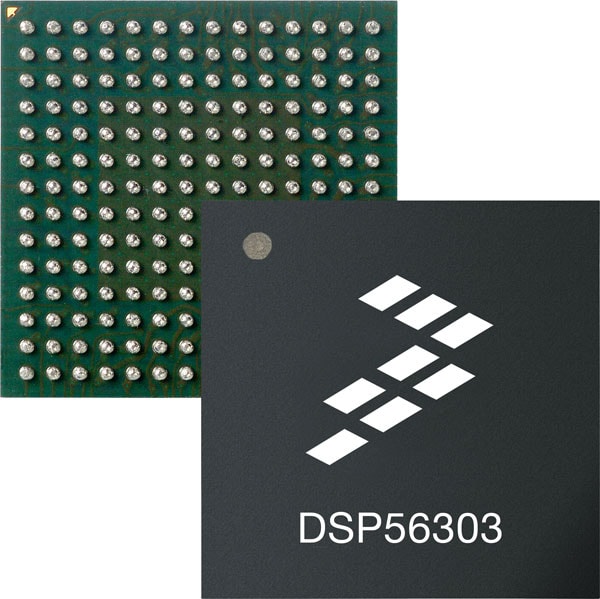

The DSP56303 is a member of the DSP56300 core family of programmable CMOS Digital Signal Processors (DSPs). This family uses a high performance, single clock cycle per instruction engine providing a twofold performance increase over Our popular DSP56000 core family, while retaining code compatibility. Significant architectural enhancements to the DSP56300 core family include a barrel shifter, 24-bit addressing, instruction cache, and DMA. The DSP56303 offers 100 MMACS using an internal 100 MHz clock at 3.0-3.6 volts. The DSP56300 core family offers a new level of performance in speed and power provided by its rich instruction set and low power dissipation, enabling a new generation of wireless, telecommunications, and multimedia products.

Archived content is no longer updated and is made available for historical reference only.

MoreLess

Features

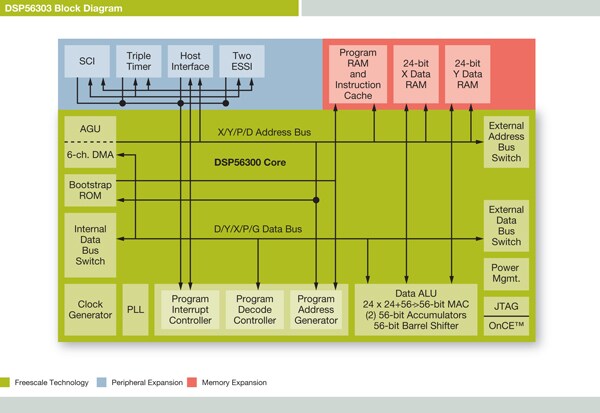

High performance DSP56300 core

100 million multiply-accumulates per second (MMACS) with a 100 MHz clock
Object code compatible with the DSP56000 core
Highly parallel instruction set
Fully pipelined 24 x 24-bit parallel multiplier-accumulator (MAC)
56-bit parallel barrel shifter
24-bit or 16-bit arithmetic support under software control
Position-independent code support
Addressing modes optimized for DSP applications
On-chip instruction cache controller
On-chip memory-expandable hardware stack
Nested hardware DO loops
Fast auto-return interrupts
On-chip concurrent six-channel DMA controller
On-chip phase-lock loop (PLL) and clock generator
On-chip emulation (OnCE) module
JTAG test access port (TAP)
Address Tracing mode reflects internal accesses at the external port

On-chip memories

Program RAM, instruction cache, X data RAM, and Y data RAM size is programmable:

Program RAM Size	Instruction Cache Size	X Data RAM Size	Y Data Ram Size
4096 x 24-bit	0	2048 x 24-bit	2048 x 24-bit
3072 x 24-bit	1024 x 24-bit	2048 x 24-bit	2048 x 24-bit
2048 x 24-bit	0	3072 x 24-bit	3072 x 24-bit
1024 x 24-bit	1024 x 24-bit	3072 x 24-bit	3072 x 24-bit

192 x 24-bit bootstrap ROM

Off-chip memory expansion

Data memory expansion to two 256 K x 24-bit word memory spaces
Program memory expansion to one 256 K x 24-bit word memory space
External memory expansion port
Chip select logic requires no additional circuitry to interface to SRAMs and SSRAMs
On-chip DRAM controller requires no additional circuitry to interface to DRAMs

On-chip peripherals

8-bit parallel host interface (HI08), ISA-compatible bus interface, providing a cost-effective solution for applications not requiring the PCI bus
Two enhanced synchronous serial interfaces (ESSI)
Serial communications interface (SCI) with baud rate generator
Triple timer module
Up to thirty-four programmable general-purpose I/O pins (GPIO), depending on which peripherals are enabled

Reduced power dissipation

Very low power CMOS design
Wait and Stop low power standby modes
Fully-static logic, operation frequency down to DC
Optimized power management circuitry
