TEA1936xDB1520 - USB PD 27 W Mobile Charging

TEA1936XDB1520- Active

Roll over image to zoom in

The Multi-Standard 27W Mobile Charger enables the design of power supplies featuring extreme low standby power with the output voltage in full regulation, very high efficiency and high reliability. The NXP chipset used is targeting mobile and notebook power supplies with power requirements up to 100W. Supplies can be designed easily and with a minimum number of external components.

The Multi-Standard Charger supports the following standards:
  • USB PD2.0 certified

The TEA1936xDB1520 demo board is a derivative version of the TEA1936xDB1475 demo board. The TEA1936xDB1520 uses a different protocol controller (TEA19031), which only supports PD2.0. For evaluation purposes, we recommend ordering the TEA1936xDB1475 demo board, which supports PD2.0 and QC2.0 / 3.0.

Product Details

Supported Devices

Power Management

Secondary Side Controllers

  • TEA1993TS: GreenChip Synchronous Rectifier Controller

AC-DC Controllers

  • TEA19361T: GreenChip SMPS Primary Side Control IC with QR/DCM Operation

Features

Key Features

  • Multi-protocol support for USB-PD 2.0 & 3.0, Quick Charge 2.0 & 3.0
  • Functionality user configurable end of line through the USB type-C interface
  • Best-in-class energy efficiency meeting all DOE & EU CoC requirements
  • No-load power < 30 mW when the USB (type C) cable is left unconnected
  • Low audible noise; low output voltage ripple
  • Excellent thermal magement
  • Small size due to high near-full digital integration level; ≈ 11 W/inch3 power density
  • Safe solution with extensive set of hardware-integrated protection features
  • Complete one-stop-shop solution from NXP Semiconductors minimizing development time and research and development cost

Buy Options

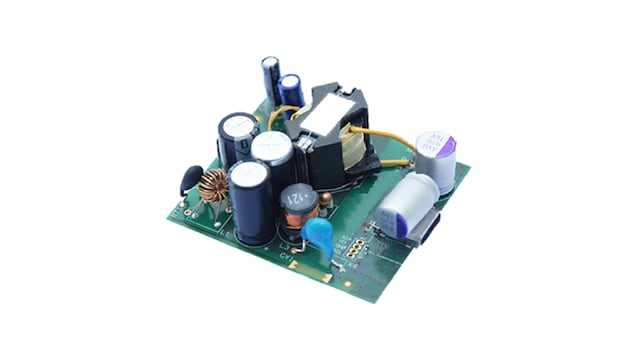

TEA1936XDB1520-Image

Click to expand

  • TEA1936XDB1520
    Active

  • 27W USB PD2.0 demo board.

    • TEA1936XDB1520 demo board
    • Quick start guide
