TEA2095 GreenChip Dual SR Controller Add-on Board for Resonant

TEA2095DB1574

Roll over image to zoom in

The TEA2095 add-on board is designed for incorporation into existing resonant power supplies by replacing the secondary rectifier diodes. The add-on board consists of the TEA2095 Dual SR controller IC and low-ohmic MOSFETs in LFPAK package.

Supported Devices

Power Management

Secondary Side Controllers

  • TEA2095: GreenChip Dual LLC SR Switching Controller

Features

Efficiency

  • Adaptive gate drive of the MOSFETs enables maximum efficiency at any load

Connectivity

  • Can be connected to a wide range of resonant power supplies

Power Management

  • Two low ohmic SR MOSFETs in LFPAK package for power levels up to 300 W
  • Wide supply voltage range (4.5 V to 38 V)

IC used

  • TEA2095TE Dual SR controller in HSO-8 package

Buy Options

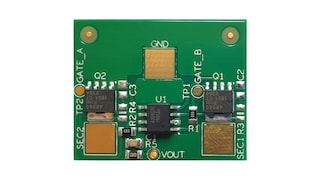

TEA2095DB1574-Image

Click to expand

  • TEA2095DB1574
    Active

  • TEA2095 GreenChip Dual SR Controller Add-on Board for Resonant.

  • $144.90 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
