DSP56F805|Digital Signal Controller

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

The 56F805, a member of the 56800 core-based family of Digital Signal Controllers, combines the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals on a single chip. This creates an extremely cost-effective solution for servo and motor control, power inverter, and converter applications.

The 56800 core is based on a Harvard-style architecture consisting of three execution units which operate in parallel, allowing as many as six operations per instruction cycle. The microprocessor-style programming model and optimized instruction set allow straightforward generation of efficient, compact code for both DSP-and MCU-style applications. The instruction set is also highly efficient for C compilers, enabling rapid development of optimized control applications.

Data Sheet

Reference Manual

Product Details

Block Diagram

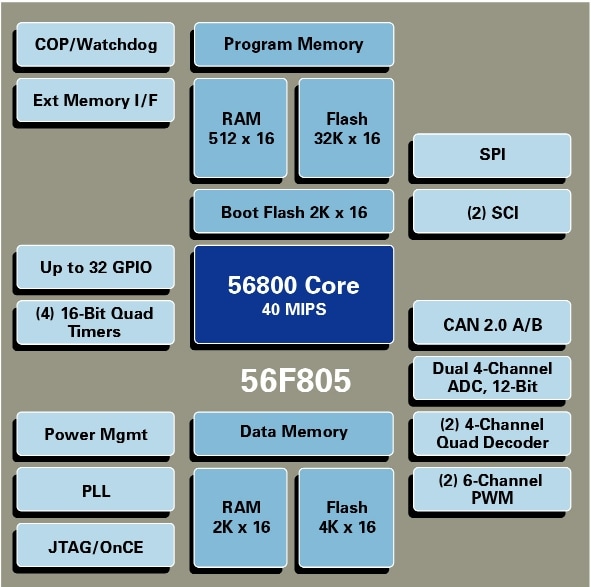

DSP56F805 Block Diagram

Get diagram PDF

Features

Advanced pulse width modulation
Dual analog to digital converters
Programmable 16-bit timers
8 MHz oscillator and PLL with integrated pre- and post-scalers
On-board power conversion and management
NXP^® scalable CAN module
Serial communications interface module (SCI)
Serial peripheral interface module (SPI)
GPIO
JTAG/OnCE debug programming interface

Design Files

1 design file

Clear all

^Models
DSP56F805 BSDL File

ZIPRev 0Feb 26, 200211.5 KBDSP56F805BSDL
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

4 hardware offerings

Clear all

^{Emulators, Probes, and Programmers}
HW Programmers for Production Flash Programming

56800PFPROGR
^{Emulators, Probes, and Programmers}
CodeWarrior^® Flash Programming Tool for 56800/E

56800CWFP
^{Emulators, Probes, and Programmers}
Flash Programming Tool for 56F80x and 56F82x

56F8XXFP
Additional hardware available. View our featured partner solutions.
^{Emulators, Probes, and Programmers}
USB TAP for ONCE DSC

USBTAP_DSC

1-5 of 6 hardware offerings

Clear all

^{Evaluation and Development Boards}
OSBDM_OSJTAG_RESOURCES

OSBDM/OSJTAG resource page, including links for OSBDM/OSJTAG virtual toolkit, firmware updates, driver downloads, design documents, and related information.

By P & E Microcomputer Systems, Inc Gold Partner
^{Evaluation and Development Boards}
OSBDM_OSJTAG_TOOLKIT

A set of Windows-based applications that function with the OSJTAG on NXP's tower board. Includes accelerometer, firmware updater, serial re-director, serial graph...

By P & E Microcomputer Systems, Inc Gold Partner
^{Test Accessories and Debugger}

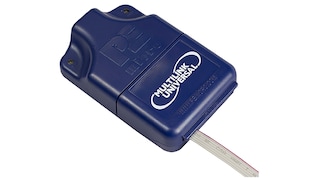

USB Multilink Universal FX
