DSP56F801FA60 | Digital Signal Controller

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

The 56F801FA60, a member of the 56800 core-based family of Digital Signal Controllers, combines the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals on a single chip to create an extremely cost-effective solution for servo and motor control, power inverter, and converter applications.

The 56800 core is based on a Harvard-style architecture consisting of three execution units which operate in parallel, allowing as many as six operations per instruction cycle. The microprocessor-style programming model and optimized instruction set allow straightforward generation of efficient, compact code for both DSP- and MCU-style applications. The instruction set is also highly efficient for C Compilers, enabling rapid development of optimized control applications.

Data Sheet

Reference Manual

Product Details

Block Diagram

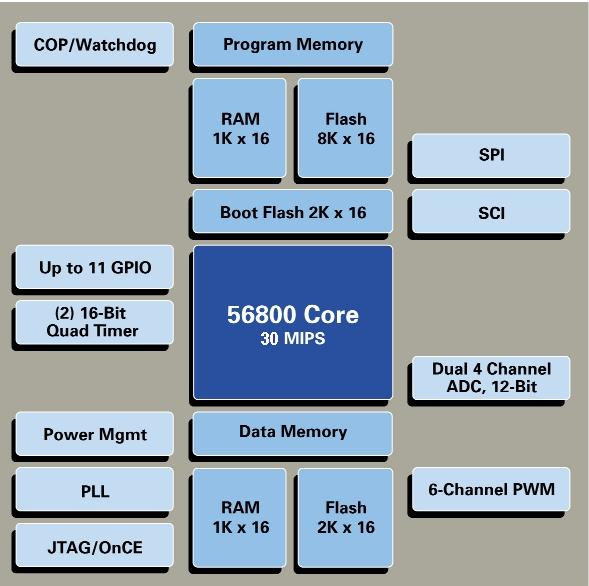

DSP56F801FA60 Block Diagram

Get diagram PDF

Features

Advanced pulse width modulation
Dual analog to digital converters
Programmable 16-bit timers
8 MHz crystal oscillator and PLL with integrated pre and post scalars
On-board power conversion and management
Serial communications interface module (SCI)
Serial peripheral interface module (SPI)
GPIO
JTAG/OnCE debug programming interface
