S12ZVM 3-phase BLDC/PMSM Evaluation Board

S12ZVMEVB
Active

Roll over image to zoom in

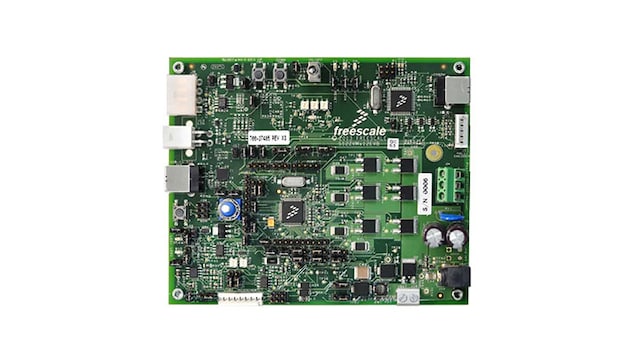

The S12ZVMEVB is a development board for the S12 MagniV® S12ZVM 16-bit MCUs targeted for 2-phase DC and 3-phase BLDC or PMSM motor control applications.

The S12ZVM integrates an MCU with an S12Z core, a 5 V voltage regulator, a LIN physical layer and a gate driver unit capable of controlling up to 6 power MOSFETs and is targeted for automotive applications such as HVAC blowers, engine cooling fans, wiper systems, fuel or water pumps.

There are two versions of the EVB:

  • The S12ZVML12EVB uses the S12ZVML128 integrating a LIN transceiver
  • The S12ZVMC12EVB uses the S12ZVMC128 integrating a voltage regulator controller for an external CAN transceiver

Supported Devices

Processors and Microcontrollers

S12 MagniV Mixed-Signal MCUs

  • S12ZVM: S12ZVM Mixed-Signal MCU for Automotive and Industrial Motor Control Applications

Features

  • S12ZVML128 (LIN version) or S12ZVMC128 (CAN version), in 64 LQFP-EP

Connectivity

  • Connector interface for 2-phase (DC) or 3-phase (BLDC or PMSM) motor
  • USB-to-SCI interface
  • LIN connector
  • External CAN transceiver
  • Hall-sensor interface and connector
  • Resolver interface and connector

Power Management

  • Shunt resistors for current sensing on up to three phases and common DC link

Debug

  • Built-in OSBDM debugger

Components

  • One general purpose potentiometer, two LEDs, two push buttons and one switch
