8-bit with LCD Driver LA MCUs

Overview

Our RS08 microcontrollers (MCUs) with LCD drivers are highly integrated but extremely cost-effective. The MC9RS08LA8 and MC9RS08LE4 MCUs are intended for small appliances, medical equipment and other industrial and multi-market applications.

The LA and LE families provide design flexibility with a large segment-based (8x mode) driver and an integrated charge pump to provide true system-on-chip (SoC) functionality.

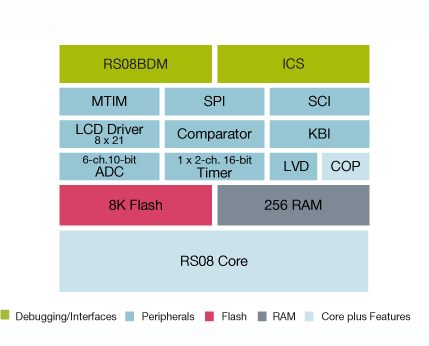

Features

8-bit RS08 Central Processor Unit (CPU)

Up to 10 MHz (bus frequency) RS08 CPU at 2.7V for 100 ns minimum instruction time
Subset of HCS08 instruction set with added BGND instruction

LCD Driver and Internal Charge Pump

Integrated LCD driver supports both standard 3V and 5V LCD glass
Configurable display for 8 x 21 or 4 x 25 segment display
Capable of running in STOP mode
Internal charge pump for LCD
Front plane (FP) and black plane (BP) re-assignments
LCD driver pins are muxed with GPIO and other functions

On-Chip Memory

Up to 8 KB flash over full operating voltage and temperature
2.7V to 5.5V RAM

Peripherals

Analog-to-digital converter (ADC)
- 2.5 µs conversion time
- Automatic compare function
- Internal temperature sensor
- Internal bandgap reference channel
- Operation in STOP mode
6-channel,10-bit resolution
One 2-channel timer
Serial communications interface (SCI)—module offering asynchronous communications,13-bit break option, flexible baud rate generator, double buffered transmit and receive and optional H/W parity checking and generation
Analog comparator with selectable interrupt on rising, falling or either edge of comparator output; compare option to fixed internal bandgap reference voltage; outputs can be optionally routed to TPM module (LA8 only)
Serial peripheral interface (SPI)—one module with full-duplex or single-wire bidirectional; double-buffered transmit and receive; master or slave mode; MSB-first or LSB-first shifting (LA8 only)

Input/Output

33 general purpose input/output (GPIO), one output-only pin and one input-only pin
Eight keyboard interrupt (KBI) pins with selectable polarity

System Protection

Watchdog computer operating properly (COP) reset with option to run from dedicated 1 kHz internal clock source
Low-voltage detection with reset or interrupt
Illegal op code and illegal address detection with reset
Flash protection

Development Support

Single-wire background debug interface
Breakpoint capability

Real-Time Interrupt

Real-time interrupt trigger with 3-bit prescaler
Built-in low-power 1 kHz clock source

Up to 18 GPIOs

Software selectable pull-ups on ports when used as input (internal pull-up on RESET)
Software selectable slew rate control on ports when used on output
8-pin keyboard interrupt module with software selectable polarity on edge or edge/level modes

System Protection

Watchdog computer operating properly (COP) reset with option to run from dedicated 1 kHz internal clock source or bus clock
Low voltage detection with reset or interrupt
Illegal opcode and illegal address detection with reset
Security feature for flash

Background Debugging System

On-chip BDM

Package

Pin-compatible with SH, QG family

Features

8-bit RS08 Central Processor Unit (CPU)

Up to 10 MHz (bus frequency) RS08 CPU at 2.7V for 100 ns minimum instruction time
Subset of HCS08 instruction set with added BGND instruction

LCD Driver and Internal Charge Pump

Integrated LCD driver supports both standard 3V and 5V LCD glass
Configurable display for 8 x 21 or 4 x 25 segment display
Capable of running in STOP mode
Internal charge pump for LCD
Front plane (FP) and black plane (BP) re-assignments
LCD driver pins are muxed with GPIO and other functions

On-Chip Memory

Up to 8 KB flash over full operating voltage and temperature
2.7V to 5.5V RAM

Peripherals

Analog-to-digital converter (ADC)
- 2.5 µs conversion time
- Automatic compare function
- Internal temperature sensor
- Internal bandgap reference channel
- Operation in STOP mode
6-channel,10-bit resolution
One 2-channel timer
Serial communications interface (SCI)—module offering asynchronous communications,13-bit break option, flexible baud rate generator, double buffered transmit and receive and optional H/W parity checking and generation
Analog comparator with selectable interrupt on rising, falling or either edge of comparator output; compare option to fixed internal bandgap reference voltage; outputs can be optionally routed to TPM module (LA8 only)
Serial peripheral interface (SPI)—one module with full-duplex or single-wire bidirectional; double-buffered transmit and receive; master or slave mode; MSB-first or LSB-first shifting (LA8 only)

Input/Output

33 general purpose input/output (GPIO), one output-only pin and one input-only pin
Eight keyboard interrupt (KBI) pins with selectable polarity

System Protection

Watchdog computer operating properly (COP) reset with option to run from dedicated 1 kHz internal clock source
Low-voltage detection with reset or interrupt
Illegal op code and illegal address detection with reset
Flash protection

Development Support

Single-wire background debug interface
Breakpoint capability

Real-Time Interrupt

Real-time interrupt trigger with 3-bit prescaler
Built-in low-power 1 kHz clock source

Up to 18 GPIOs

Software selectable pull-ups on ports when used as input (internal pull-up on RESET)
Software selectable slew rate control on ports when used on output
8-pin keyboard interrupt module with software selectable polarity on edge or edge/level modes

System Protection

Watchdog computer operating properly (COP) reset with option to run from dedicated 1 kHz internal clock source or bus clock
Low voltage detection with reset or interrupt
Illegal opcode and illegal address detection with reset
Security feature for flash
