BGU8061 Evaluation Board

OM17040

Roll over image to zoom in

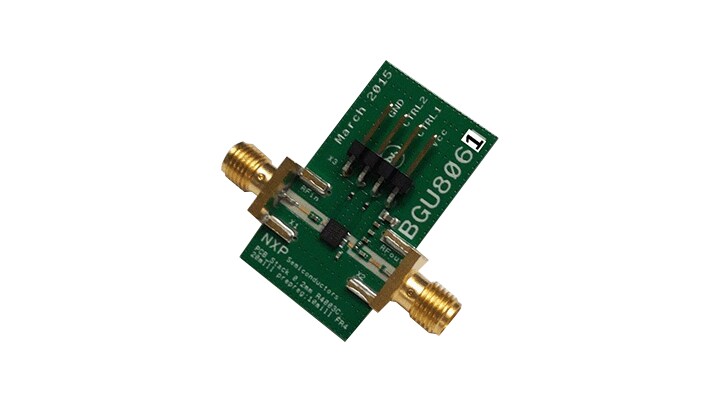

The BGU8061 evaluation board simplifies the RF evaluation of the BGU8061. The evaluation board enables testing the device RF performance and requires no additional support circuitry. The BGU8061 evaluation board is fabricated on a 35 mm x 20 mm, 1 mm thick 3 layer PCB that uses 0.2 mm (8 mill) R4003C for the RF performance testing. The board is fully assembled with the BGU8061, including the external components. The board is supplied with two SMA connectors to connect input and output to the RF test equipment.

Supported Devices

RF

LNAs for Wireless Infrastructure

Features

Key Features

  • Covers 700 MHz to 1500 MHz
  • Low noise performance: NF = 1.1 dB
  • Unconditionally stable up to 20 GHz
  • Small 10-terminal leadless package 3 mm x 3 mm x 0.85 mm
  • ESD protection at all terminals
  • Moisture sensitivity level = 1
  • Fast shutdown for TDD systems

Power Management

  • +5 V single supply

Connectivity

  • High Linearity performance: IP3O = 36.5 dBm
  • High input return loss > 10 dB
  • High output return loss > 10 dB

Buy Options

OM17040-Image

Click to expand

  • OM17040

  • BGU8061 evaluation board.

    • BGU8061 LNA with By-pass evaluation board in ESD safe package
  • $160.00 USD
  • For a quantity of 1
