BGU8063 evaluation board

OM17041

Roll over image to zoom in

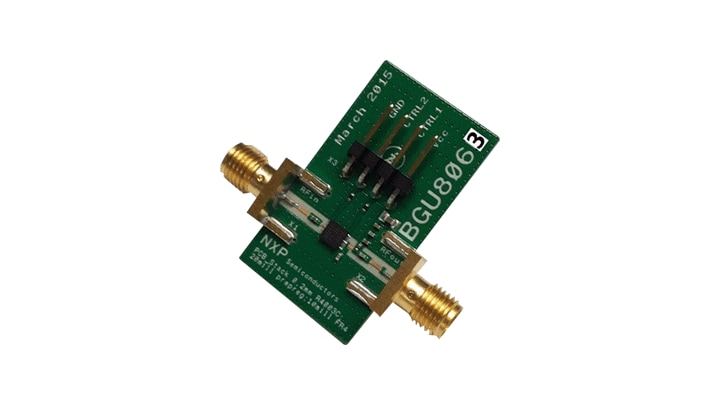

The BGU8063 evaluation board simplifies the RF evaluation of the BGU8063. The evaluation board enables testing the device RF performance and requires no additional support circuitry. The BGU8063 evaluation board is fabricated on a 35 x 20 mm, 1 mm thick 3 layer PCB that uses 0.2 mm (8 mill) R4003C for the RF performance testing. The board is fully assembled with the BGU8063, including the external components. The board is supplied with two SMA connectors to connect input and output to the RF test equipment.

Product Details

Select a section:

Features

  • Covers 2500 MHz to 4000 MHz
  • Low noise performance: NF = 1.6 dB
  • Moisture sensitivity level = 1
  • Unconditionally stable up to 20 GHz
  • High Linearity performance: IP3O = 34 dBm
  • High input return loss > 10 dB
  • High output return loss > 10 dB

Power Management

  • Fast shutdown for TDD systems
  • +5 V single supply
  • Small 10-terminal leadless package 3 mm x 3 mm x 0.85 mm
  • ESD protection at all terminals

Buy Options

  • OM17041

  • BGU8063 evaluation board.

    • BGU8063 LNA with By-pass evaluation board in ESD safe package
  • $160.00 USD
  • For a quantity of 1

Design Resources

Select a section:

Design Files

Filters

3 design files

  • Models

    BGU8063 S-parameters

    ZIPRev 1.0Jun 7, 2016 00:00:0035.0 KBBGU8063_SPARAMETERS
    Download
  • Printed Circuit Boards and Schematics

    OM17041 Gerber File

    ZIPRev 1.0May 20, 2016 00:00:0033.0 KBOM17041_GERBER_FILE
    Download
  • Design Files - miscellaneous

    OM17041 DEX file

    DXFRev 1.0May 20, 2016 00:00:00462.0 KBOM17041_DEX_FILE
    Download
