NTAG I2C plus Explorer Kit with NFC Reader

OM5569-NT322ER
No Longer Manufactured

Roll over image to zoom in

This kit includes all components of OM5569-NT322E and on top an NFC reader. Use the PC demo application with the external reader to communicate with the NTAG I²C plus Explorer board instead of using an NFC-enabled phone.

NXP’s NTAG I²C plus Explorer Kit is an all-in-one demonstration and development resource for NFC connected tags. Designed to emulate using an NTAG I²C plus tag chip in an embedded electronic system, the kit centers around a multi-purpose microprocessor-based development/demo board, and includes a full complement of hardware and software tools to support investigation of the NTAG I²C chip operation, the NFC RF communication link, and the I²C serial bus connected link; perform a variety of demonstrations; and develop/test your own applications.

Product Details

Supported Devices

RFID

Connected NFC Tags

  • NTAG213F_216F: NTAG213F, NTAG216F: NFC Forum Type 2 Tag Compliant IC with 144/888 B User Memory and Field Detection

Features

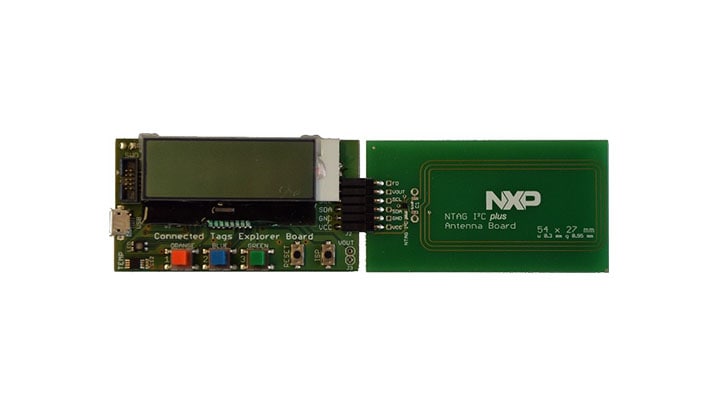

NFC Explorer Board with PCB antenna board

  • FCC and CE certified
  • Dual purpose demonstration and development hardware board based on the NXP LPC 11U24 microcontroller
  • Onboard LCD display
  • NXP LM75B temperature sensor
  • Voltage monitors
  • I²C serial bus connector
  • JTAG debug connector

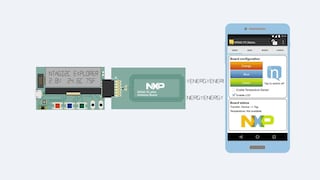

  • Demonstrate bidirectional I²C serial bus/NFC communication
  • Illustrate NDEF messaging
  • Monitor energy harvesting capability
  • Provides a localized application development environment

Additional components

  • NTAG I²C plus tag chips mounted on a Class 6 Flex-board with built-in I²C serial bus interface connectors for easier product insertion and testing
  • 10 NTAG I²C plus packed SO8 samples may be used for first prototypes
  • Field Detector Board with visual (LED) output to facilitate location of the optimum RF field, or to ensure that NFC has been enabled
  • Additional Identive CLOUD 3700F reader (kit also available without reader to be used with an NFC-enabled phone OM5569 NT322E)

Applications

  • Windows-based application and source code available under Downloads
  • Peek and Poke Application: A PC-based NTAG I²C device register and memory exploration software tool with a graphical user interface

Buy Options

OM5569-NT322ER-Image

Click to expand

  • OM5569-NT322ER
    No Longer Manufactured

  • NTAG I2C plus Explorer Kit with NFC Reader.
