NTAG® 5 Switch: NFC Forum-Compliant PWM GPIO Bridge for Lighting and Gaming
Design Files
Receive the full breakdown. See the product footprint and more in the eCad file.
Please check the new online NFC Antenna Tool for tag and reader devices.

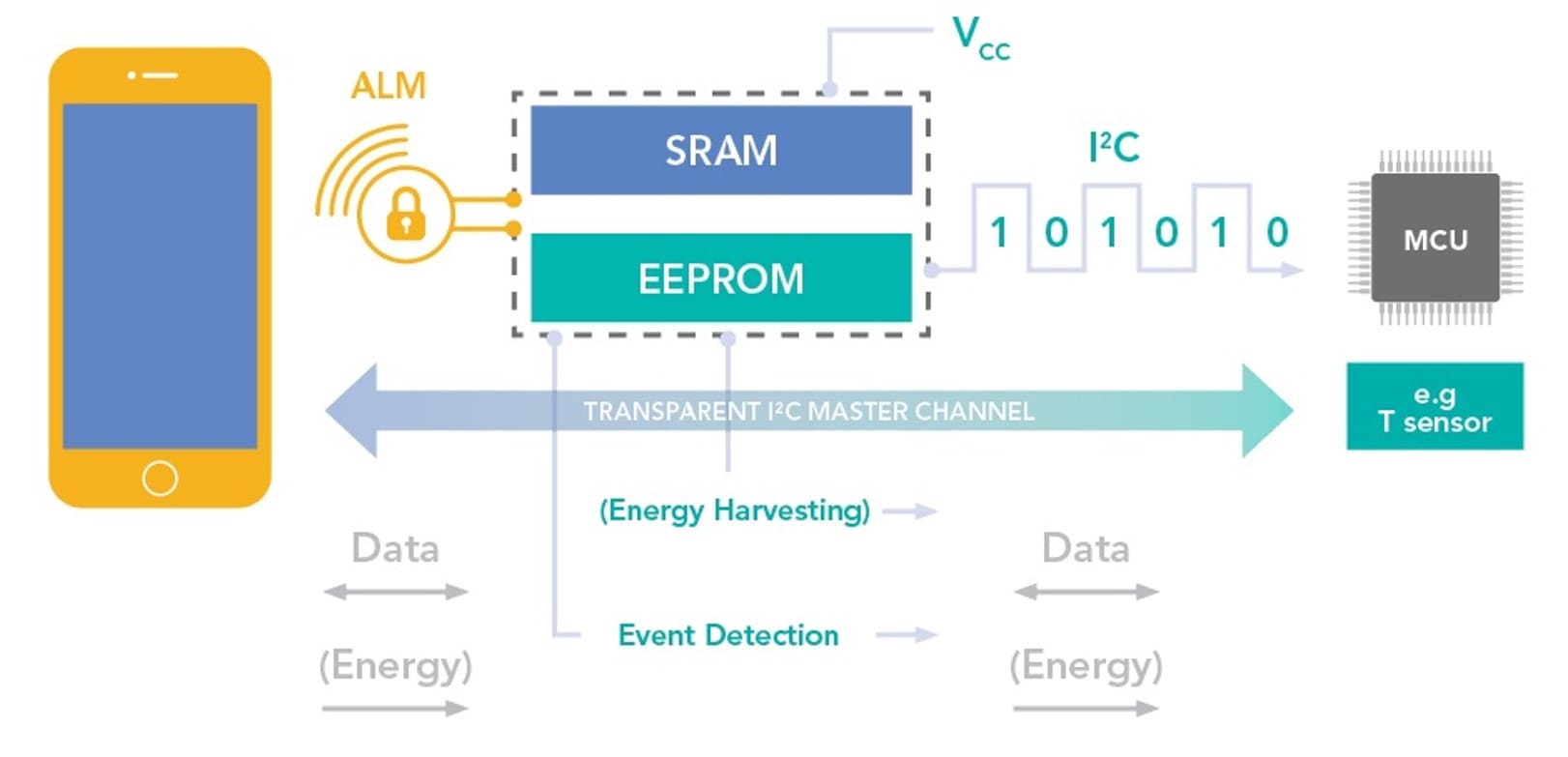

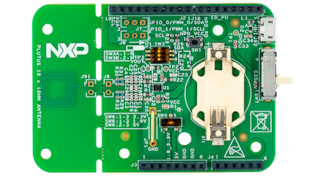

NXP’s NTAG 5 boost shrinks the NFC footprint while adding AES security, so designers can deliver ultra-compact devices for use in IoT, consumer, and industrial applications.
It is an NFC Forum-compliant contactless tag that delivers exceptional read range, giving tiny devices the ability to interact with the cloud, and other NFC-enabled devices, including smartphones.
Commitment to Longevity
NTA53321G0F is ready to support your development today, tomorrow and beyond through its longevity program. The Product Longevity program ensures a stable supply of products for your embedded designs
Part numbers include: NTA53321G0FHK, NTA53321G0FTT.
Feature | NTAG 21xF | NTAG 5 switch | NTAG I²C plus | NTAG 5 link | NTAG 5 boost |
---|---|---|---|---|---|
NFC Forum type tag | 2 | 5 | 2 | 5 | 5 |
Max. interface speed - NFC/I²C | 106 kbps/- | 53 kbps/- | 106 kbps/400 kHz | 53 kbps/400 kHz | 53 kbps/400 kHz |
Memory size | 144 or 888 bytes | 512 bytes | 888 or 1912 bytes 64 bytes SRAM |
2048 bytes 256 bytes SRAM |
2048 bytes 256 bytes SRAM |
Memory protection from NFC perspective |
Read only locking and 32-bit PWD |
Read only locking and 32- or 64-bit PWD |
Read only locking and 32-bit PWD |
Read only locking and 32- or 64-bit PWD AES mutual authentication* |
Read only locking and 32- or 64-bit PWD or AES mutual auth. |
Memory protection from connected host |
- | - | Restrict access to NFC password protected area |
32-bit PWD | 32-bit PWD |
Memory areas | 2 | 3 | 2 | 3 | 3 |
Originality Signature | fixed | re-programmable | fixed | re-programmable | re-programmable |
Energy harvesting | - | regulated up to 30 mW | yes up to 15 mW |
regulated up to 30 mW | when used as passive regulated up to 30 mW |
Wired Interface | Field Detect Pin | PWM, GPIO; Event Detect Pin | I²C target; Event Detect Pin | PWM; GPIO; I²C target, I²C transparent controller*; Event detection | PWM; GPIO; I²C target, I²C transparent controller; Event detection |
Typical stand-by and hard-power-down values | - | 6 µA/0,25 µA | - | 6 µA/0,25 µA | 10 µA/0,25 µA |
Active load modulation | - | - | - | - | yes, when VCC supplied |
Temperature range | -25°C to +70°C | -40°C to +85°C | -40°C to +105°C | -40°C to +85°C | -40°C to +85°C |
* Only available for NTP5332
