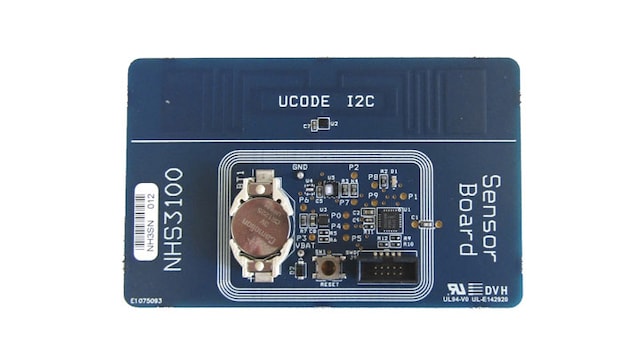

NHS3100 Sensor Board

NHS3100SENSORADK

Roll over image to zoom in

This solution contains 3 NXP® ICs, connected via I2C: the NHS3100, the FXLS897X, and the SL3S4011FHK. The FXLS897X is a compact 3-axis MEMS accelerometer optimized for low-power operation. The SL3S4011FHK is a UCODE-I2C IC. The starter kit also includes a third-party humidity sensor.

The NHS3100 is the leader of the solution. It controls the monitoring of different sensor values: temperature, shock, vibrations, tilting, and humidity. Through the UHF interface, one sees the identity of the goods plus the status of handling. Via NFC, the sensors are selected, activated, and started. NFC is also used to upload the logged values and events to the cloud.

Product Details

Select a section:

Supported Devices

RFID

NTAG SmartSensor

  • NHS3100: NTAG® SmartSensor with Temperature Sensor and Digital IOs

Sensors

Accelerometers

  • FXLS8962AF: ±2g/±4g/±8g/±16g, Low Power 12-bit Digital Accelerometer

Features

User components

Board:
  • NHS3100SENSORDB demo board + LPC-Link2 board and the necessary cable to develop firmware on both PC and MAC

Support

Software:
  • Cross-platform desktop and mobile applications to configure, start, and stop a monitoring session; to read out the status; and to read out the data logs
  • + A cross-platform desktop application that reads out multiple demo boards using the Rain RFiD interface and displays the monitoring status per board

Buy Options

NHS3100SENSORADK-Image

Click to expand

    • Availability: In stock
    • Inventory: 3
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor

Documentation

Quick reference to our documentation types.

Filters

1-5 of 6 documents

Show All

Design Resources

Select a section:

Software

Filters

5 software files

  • Application Example Software

    NTAG Smart Sensor Monitor iOS App

    IPARev 1Sep 11, 2019 16:26:0014 KBSENSORBOARD-IOS
    Download
  • Application Example Software

    NTAG Smart Sensor Monitor Android App

    APKRev 1Sep 11, 2019 16:19:0014 KBSENSORBOARD-ANDROID
    Download
  • Middleware

    NHS3100 SDK - v12.6

    ZIPRev 12.6Mar 30, 2023 13:05:00release_mra2_nhs3100
    Sign in required
    Download
  • Middleware

    NHS3152 SDK - v12.6

    ZIPRev 12.6Mar 30, 2023 13:02:00release_mra2_nhs3152
    Sign in required
    Download
  • Development IDEs and Build Tools

    MCUXpresso Integrated Development Environment (IDE)
