NHS3100UCODEADK: NHS3100 - UCODE-I²C

Name: NHS3100 - UCODE-I 2 C
Price: 125.00 USD

Overview

This solution is composed of two NXP ICs, the NHS3100 NTAG SmartSensor and the SL354011FHK; connected via I2C. The NHS3100 is the leader of the solution, running the temperature monitor and forwarding the state of the controlled goods to the Rain RfiD (UHF) interface. The logger is configured and started via the NFC interface. Full data readout also happens via NFC and can be uploaded via an NFC-enabled device to the cloud. Via the Rain RFiD interface, the package is identified via its NFC ID and a status indication is given. That state information can be as simple as a go / no go decision, or can be expanded to contain more information. For example - depending on the firmware - incident timing can be displayed as well.

MoreLess

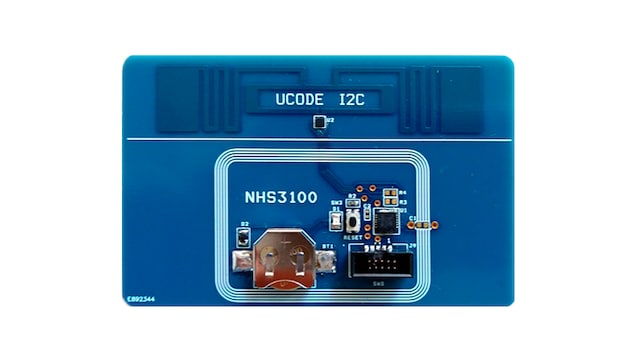

NHS3100UCODEDB Development Board

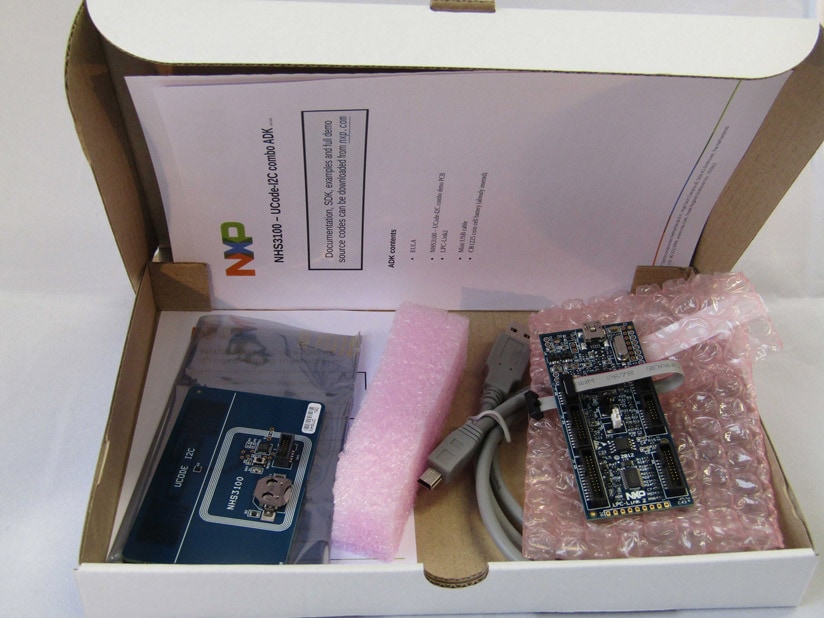

NHS3100UCODEADK Kit

Specifications

Supported Devices

RFID

NTAG SmartSensor

NHS3100 : NTAG^® SmartSensor with Temperature Sensor and Digital IOs

MoreLess

Technical and Functional Specifications

Board	NHS3100UCODE demo board LPC-Link2 board and the necessary cable to develop firmware on both PC and MAC
Software	A desktop application that reads out multiple NHS3100UCODE demo boards using the Rain RFiD interface and displays the monitoring status per board A desktop application, Android APP and iOS APP to configure, start and stop a monitoring session; and to read out the data logs.

Buy

NHS3100UCODEADK ^Active
NHS3100 - UCODE-I²C

NHS3100UCODEADKUL
1 @ US
$125.00

Use Coupon

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Don't have an NXP coupon? You can purchase this product from one of our authorized distributors.

NHS3100UCODEDB ^Active
NHS3100 - UCODE-I²C

NHS3100UCODEDBUL
1 @ US
$50.00

Use Coupon

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Don't have an NXP coupon? You can purchase this product from one of our authorized distributors.
