Name: Motor Control Shield for DEVKIT
Price: 69.00 USD
Availability: InStock

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

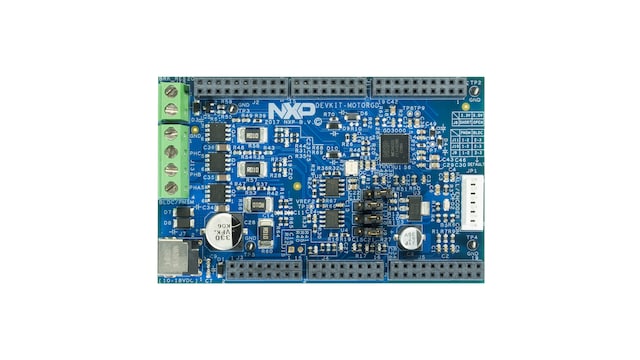

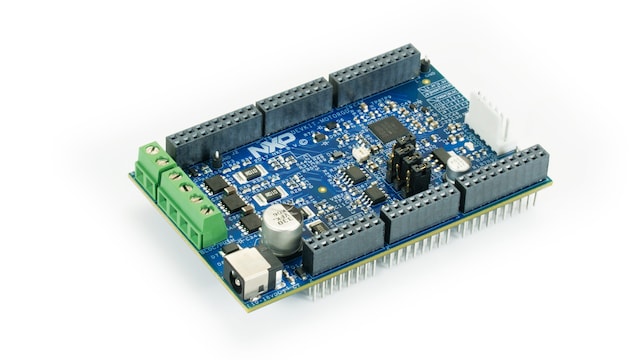

The DEVKIT-MOTORGD is an integrated motor control shield from NXP for the DEVKIT platform. This offering combines the functionality of the FRDM-GD3000EVB and FRDM-PWRSTG for a full automotive solution. DEVKIT-MOTORGD is compatible with the low-cost evaluation board of the S32K and MPC5744P, S32K144EVB-Q100 and DEVKIT-MPC5744P, respectively, and can drive a 3-phase BLDC/PMSM motor. The built-in Hall/Encoder interface means DEVKIT-MOTORGD can support both sensored and sensorless motor control applications.

In addition to DEVKIT-MOTORGD, NXP also offers a comprehensive motor control software suite. Check this product page to see our enablement offerings.

Design Files

Software

Product Details

Supported Devices

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

S32K1: S32K1 Microcontrollers for Automotive General Purpose
S32K3: S32K3 Microcontrollers for Automotive General Purpose

Ultra-Reliable MPC57xx MCUs

MPC574xP: Ultra-Reliable MPC574xP MCU for Automotive and Industrial Safety Applications

BLDC, H-Bridge, Stepper

GD3000: 3-Phase Brushless Motor Pre-Driver

Pre-Drivers

MC33937: 3-Phase Field Effect Transistor Pre-Driver

Features

Power Management

Built-in Voltage Regulator
Support for 3-Phase BLDC/PMSM Motor
- Output Parameters:
  - 3 phase outputs
  - 10-18 V
  - 5 A phase current (RMS)

Connectivity

10-18 V Barrel Connector

Tools and OS Support

Arduino^® pin compatibility
Hall/Encode Interface

General

GD3000 MOSFET Gate Driver
Compatible with S32K144EVB-Q100 and DEVKIT-MPC5744P Evaluation Boards
Linux 45ZWN24-40 BLDC or Nanotec DB41M024030-A motor recommended for evaluation purposes

Buy Options

Click to expand

DEVKIT-MOTORGD
Active

DEVKIT for MOTOR CONTROL.

Kit Contains

DEVKIT-MOTORGD Motor Control Shield

$69.00 USD

In Stock :5

Normally ships 1-2 business days
