MLC ASL5015SHN Evaluation / Development Board

ASL5015EVBSLAV

Roll over image to zoom in

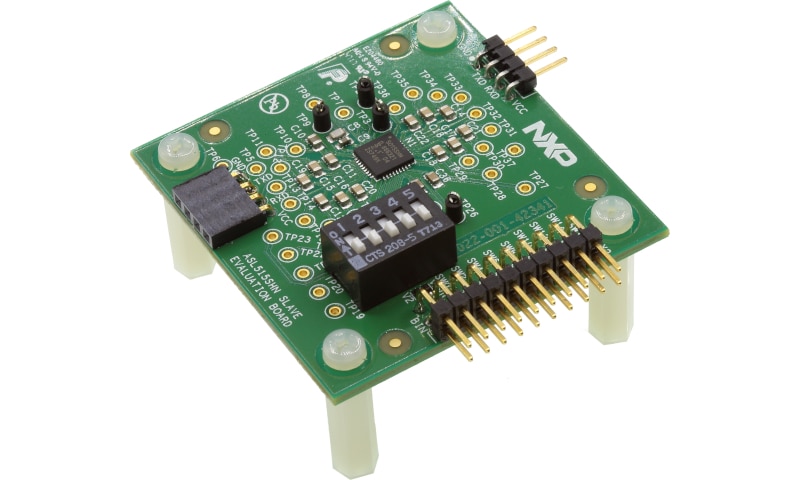

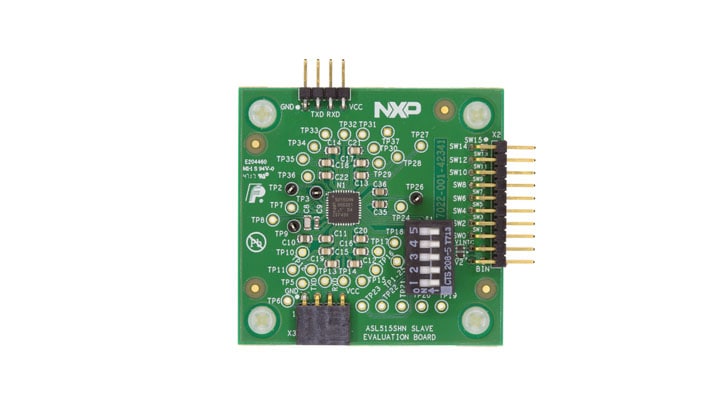

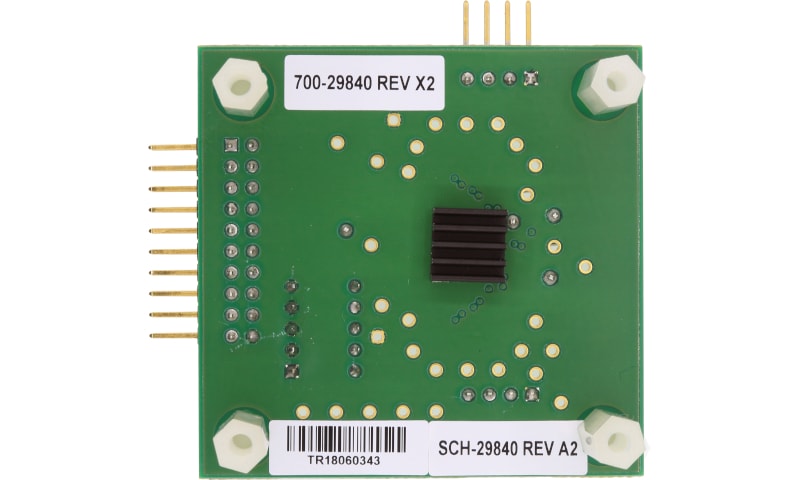

ASL5015EVBSLAV features the ASL5015SHN. The ASL5xxxyHz family is a fully-featured and flexible Matrix LED Controller (MLC). It provides a cost-effective design solution, specifically targeting advanced automotive exterior lighting applications. Smart PWM part numbers determine the PWM dimming duty cycle from information stored inside the MLC in the form of dimming polynomial curve coefficients. These coefficients are programmable by the customer according to the dimming profile they would like to see. The MLC uses these polynomial coefficients to calculate the PWM duty cycle to 12- bit resolution.

Supported Devices

Power Management

Automotive Lighting LED Driver ICs

  • ASL5XXXYHZ: Smart Matrix LED Controller for Automotive Lighting

Features

MLC Key Specifications

  • 12 integrated switches in 4 floating blocks
  • 1.5 A maximum current per switch
  • 12 bit resolution PWM
  • Automated phase shifting to avoid large peak current during switching
  • Single LED open/short detection
  • Direct NTC and ID resistor input
  • CAN interface (FD available)
  • Integrated oscillator
  • QM (B) support

Buy Options

ASL5015EVBSLAV-Image

Click to expand

  • ASL5015EVBSLAV
    Active

  • MLC ASL5015SHN Evaluation / Development Board.

  • Contact you local sales or distributor for board availability

  • $121.52 USD
  • For a quantity of 1
Order from distributors
