MLC ASL5115SHN Evaluation / Development Board

ASL5115EVBSLAV

Roll over image to zoom in

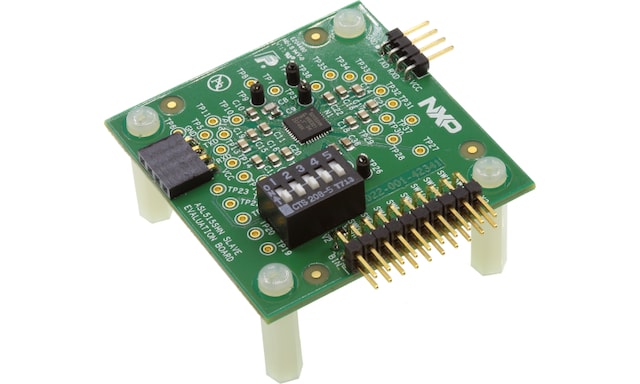

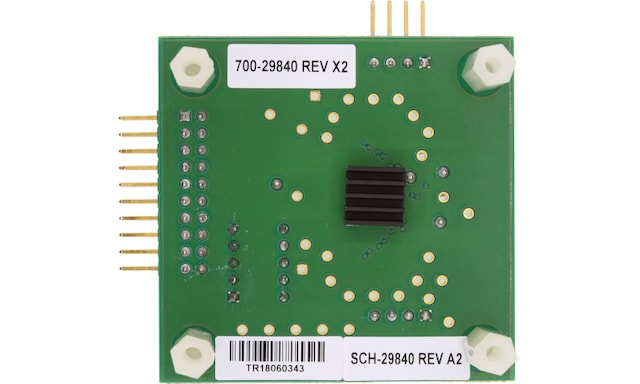

ASL5115EVBSLAV features the ASL5115SHN. The ASL5xxxyHz family is a fully-featured and flexible Matrix LED Controller (MLC). It provides a cost-effective design solution, specifically targeting advanced automotive exterior lighting applications. ASL5115SHN is controlled in direct mode, where the microcontroller updates the PWM information of each channel in a determined cycle. ASL5115SHN offers a 12-bit resolution in the PWM output, ensuring a smooth dimming performance to avoid glitches in the output light.

Supported Devices

Power Management

Automotive Lighting LED Driver ICs

  • ASL5XXXYHZ: Smart Matrix LED Controller for Automotive Lighting

Features

MLC Key Spefifications

  • 12 integrated switches in 4 floating blocks
  • 1.5 A maximum current per switch
  • 12 bit resolution PWM
  • Automated phase shifting to avoid large peak current during switching
  • Single LED open/short detection
  • Direct NTC and ID resistor input
  • CAN interface (FD available)
  • Integrated oscillator
  • QM(B) support

Buy Options

ASL5115EVBSLAV-Image

Click to expand

  • ASL5115EVBSLAV
    Active

  • MLC ASL5115SHN Evaluation / Development Board.

  • Contact you local sales or distributor for board availability

  • $121.52 USD
  • For a quantity of 1
Order from distributors
