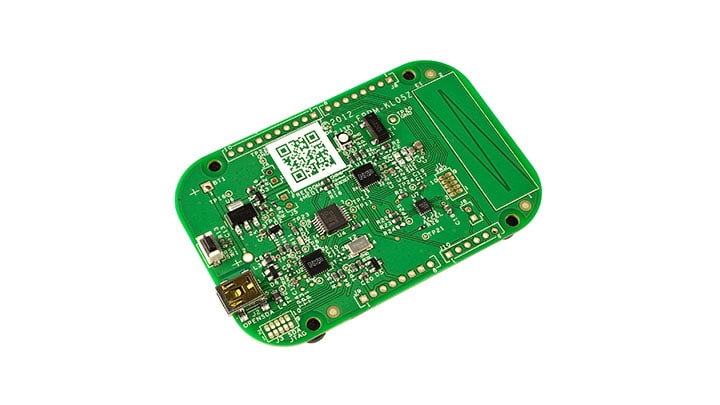

Freedom Development Platform for the Kinetis® KL05 and KL04 MCUs

FRDM-KL05Z Active

Roll over image to zoom in

The FRDM-KL05Z is an ultra-low-cost development platform enabled by the Kinetis® L Series KL0x MCU family built on the Arm® Cortex®-M0+ processor. Features include easy access to MCU I/O, battery-ready, low-power operation, a standards-based form factor with expansion board options and a built-in debug interface for flash programming and run-control. The FRDM-KL05Z is supported by a range of NXP® and third-party development software.

Product Details

Supported Devices

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL0x: Kinetis® KL0x-48 MHz, Entry-Level Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Features

Microcontroller

    MKL05Z32VFM4 MCU

  • 48 MHz
  • 32 kB flash
  • 4 kB SRAM
  • 32QFN

Memory

  • Mass storage device flash programming interface (default) – no tool installation required to evaluate demo apps

Connectivity

  • Easy access to MCU I/O
  • P&E Multilink interface provides run-control debugging and compatibility with IDE tools

Debug

  • Sophisticated OpenSDA debug interface

Sensors

  • Capacitive touch slider
  • MMA8451Q accelerometer

Components

  • tri-color LED

Buy Options

FRDM-KL05Z-Image

Click to expand

  • FRDM-KL05Z
    Active

  • Freedom Development Board for Kinetis KL04 and KL05 MCUs.

    • FRDM-KL05Z Hardware
    • Quick Reference Card
    • Additional hardware required: USB A-to-MiniB cable (not included).
  • $17.25 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
