Half-Bridge Evaluation Kit for P6 IGBT/SiC Modules Featuring the GD3100

FRDMGD3100HB8EVM

Roll over image to zoom in

Product Details

Select a section:

Supported Devices

Power Management

Powertrain and Engine Control

Features

  • Compatible with P6 SiC MOSFET module
  • SPIGEN graphical user interface available for use with kit
  • Daisy chain SPI interface configurability
  • Easy to configure jumper options
  • SPI configurable register options using SPIGEN GUI
  • Double pulse and short circuit evaluations
  • Translator board to translate 3.3 V signals to 5.0 V signals between the MCU and MC33GD3100 gate drivers

Buy Options

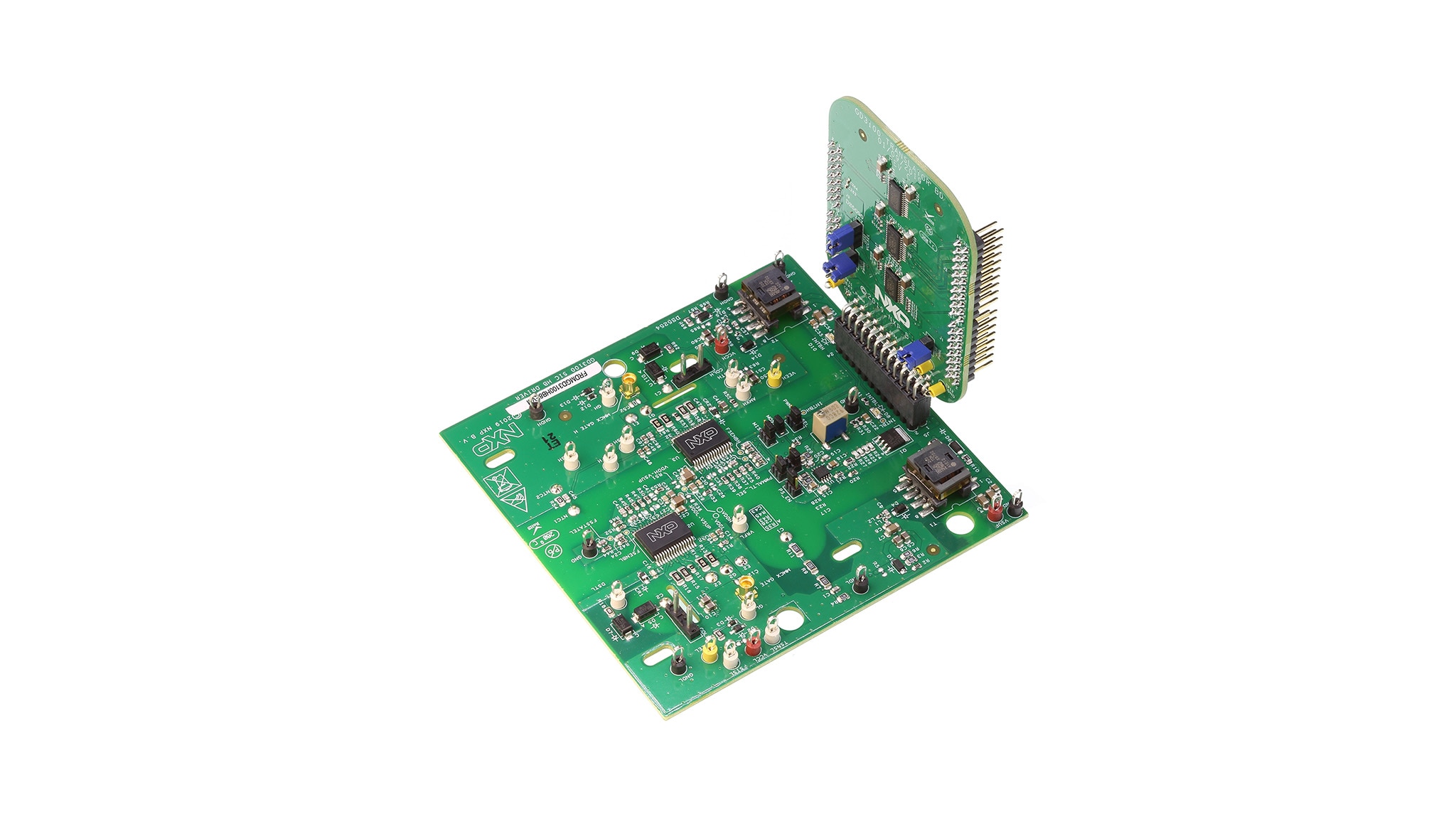

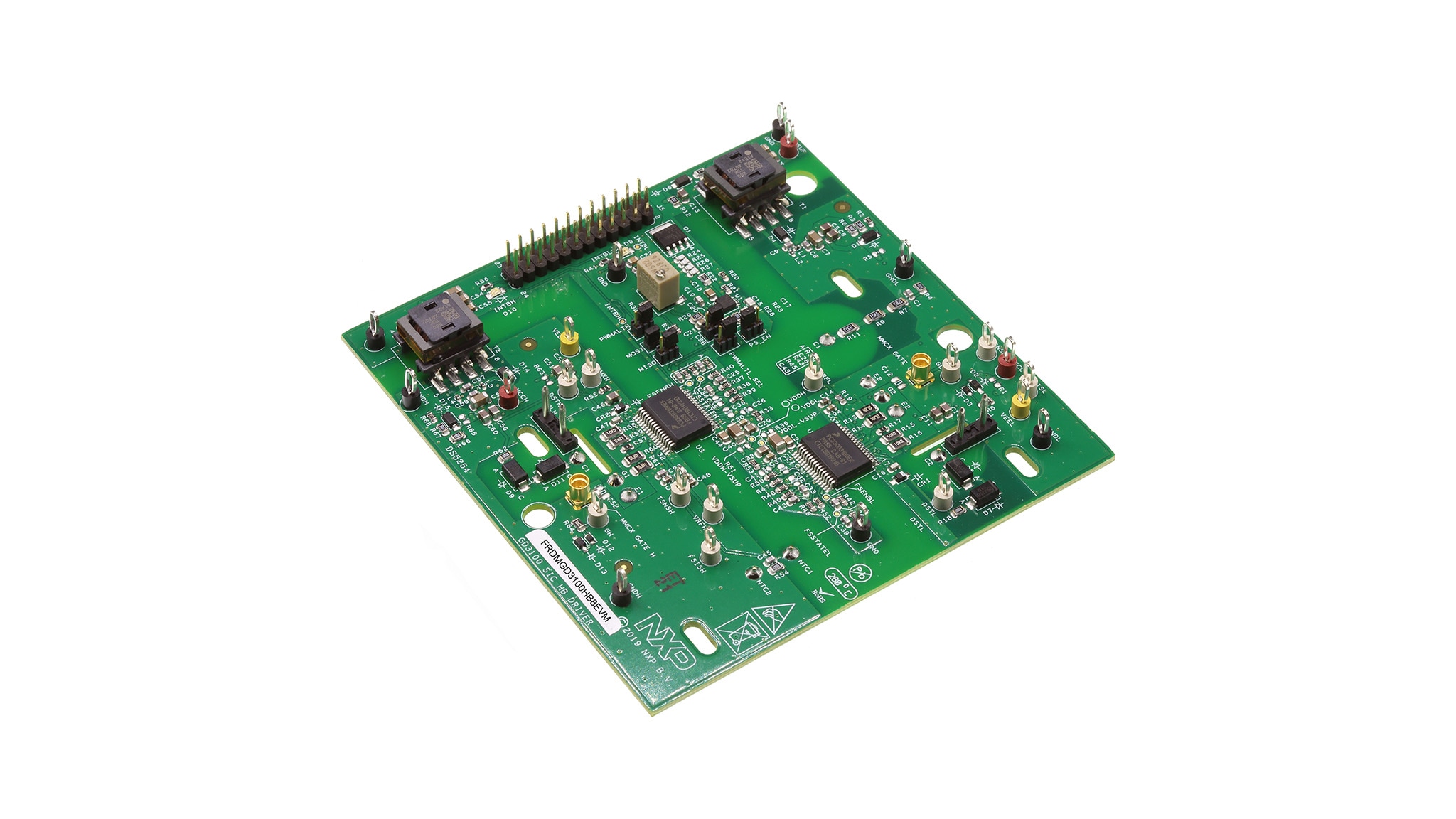

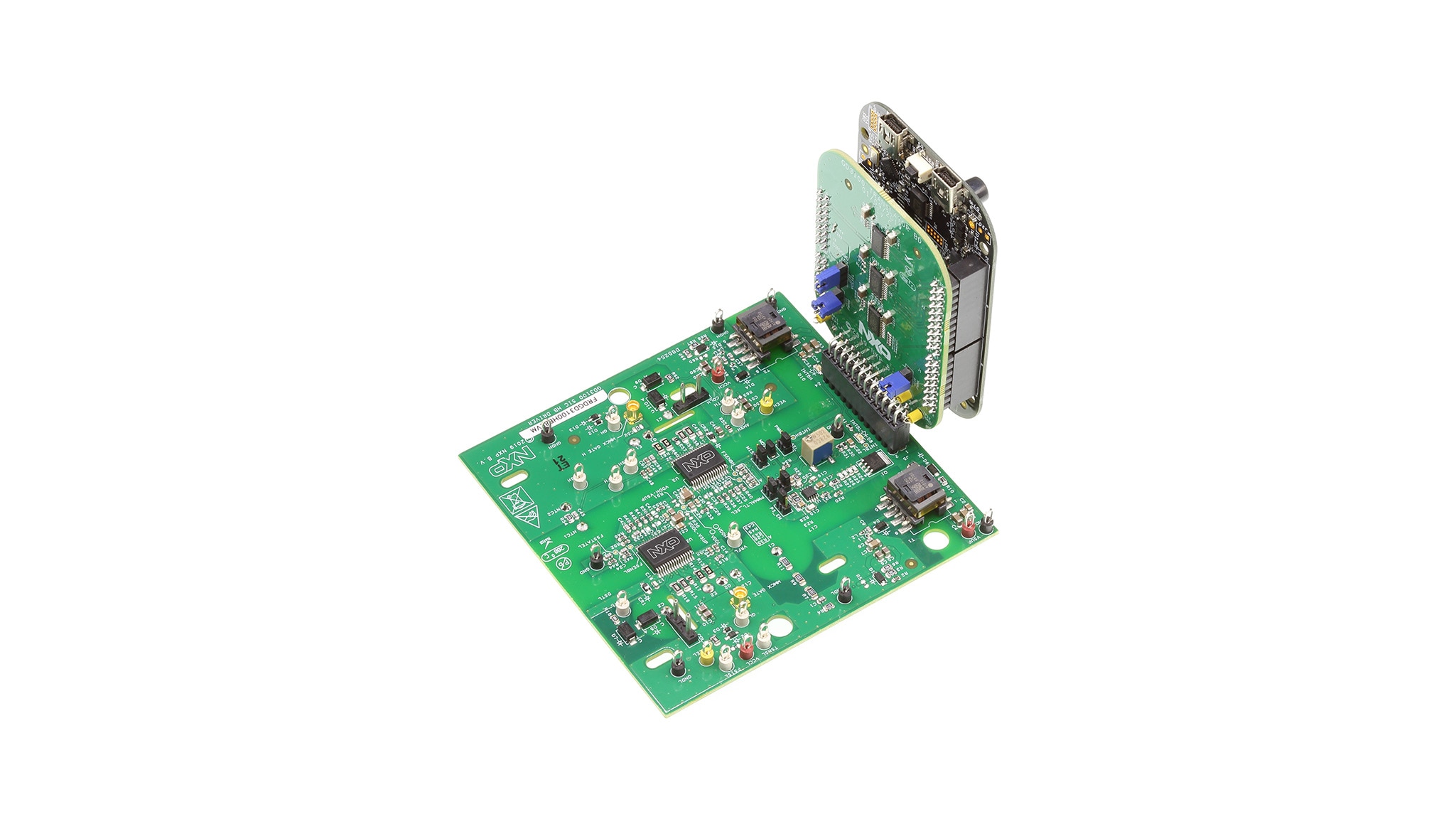

FRDMGD3100HB8EVM-Image

Click to expand

  • FRDMGD3100HB8EVM

  • Half-Bridge evaluation kit featuring GD3100 gate drive devices for IGBT/SiC MOSFET.

  • $534.06 USD
  • For a quantity of 1
Buy From Distributor
