FRDM-K32L2A4S: NXP Freedom Platform for K32 L2A MCUs

Low-cost development platform for the K32 L2 Family of MCUs

Overview

The FRDM-K32L2A4S Freedom development platform provides an ideal board for evaluation and development of the K32 L2A MCU family based on the Arm^® Cortex^®-M0+ architecture. This platform includes an onboard debug probe, accelerometer/magnetometer, a full-speed USB and easy access to K32 L2A's MCU I/O.

The FRDM-K32L2A4S board is fully supported by the MCUXpresso suite of tools, which provides device drivers, middleware and examples to allow rapid development, plus configuration and an optional free of charge IDE.

MoreLess

Target Applications

Door Locks
Factory Automation
USB Preripherals
Air Conditioning (AC)

FRDM-K32L2A4S Top

FRDM-K32L2A4S Front

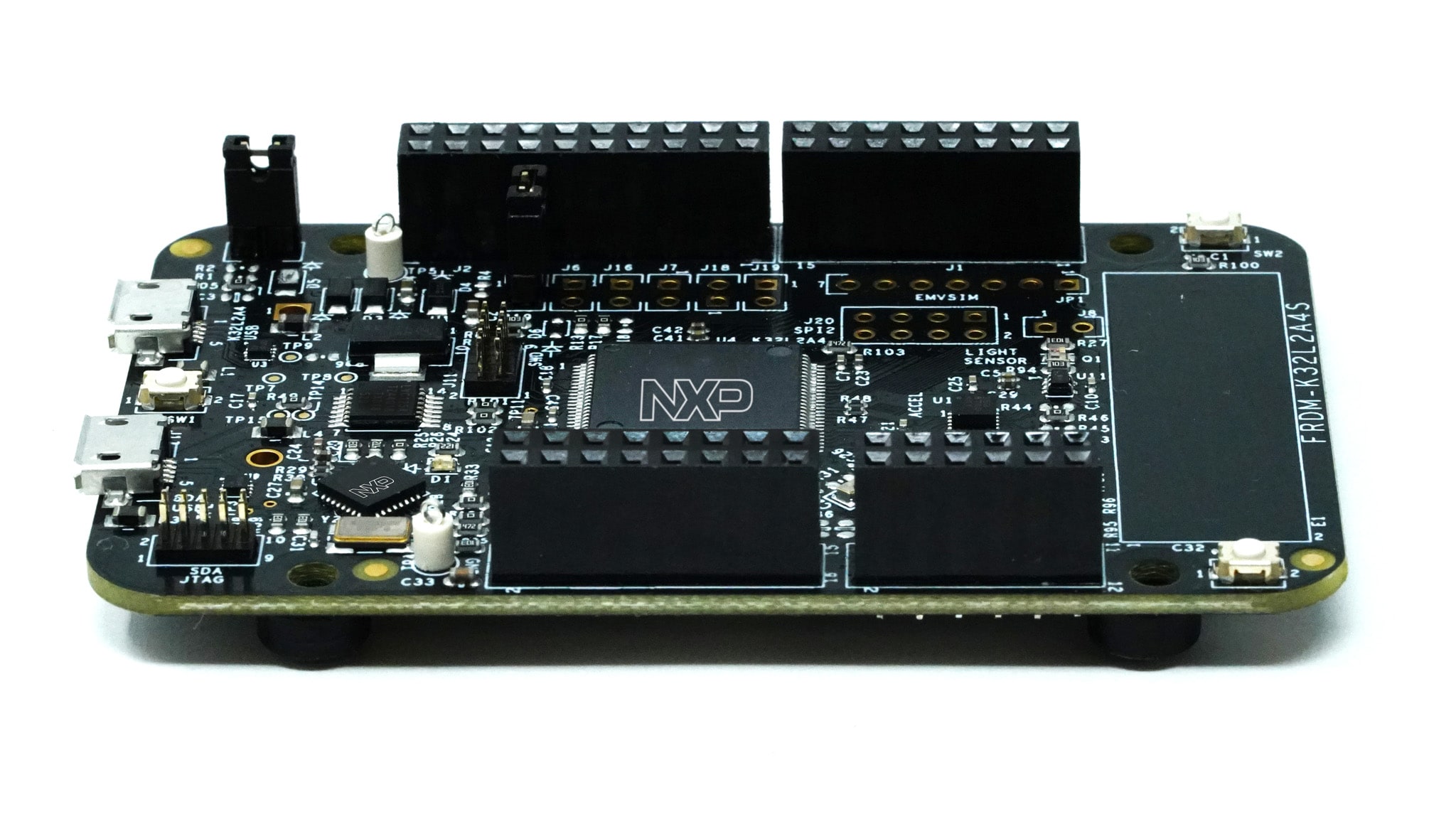

FRDM-K32L2A4S Side

Specifications

Supported Devices

Processors and Microcontrollers

K32 L Series Cortex-M4/M0+

K32-L2 : Ultra-Low-Power, Highly Integrated MCU

Sensors

Accelerometers

FXOS8700CQ : Digital Motion Sensor - 3D Accelerometer (±2g/±4g/±8g) + 3D Magnetometer

MoreLess

Technical and Functional Specifications

Microcontroller	K32L2A41VLL1A MCU running at up to 72 MHz 512 kB Flash Memory 128 kB SRAM Memory
Connectivity	Full-speed USB with micro A/B connector for OTG functionally Easy Access to K32 L2A MCU I/O
Debug	OpenSDA debug interface P&E Debug interface provides run-control debugging and compatibility with IDE tools
Sensors	NXP FSO8700CQ digital sensor, 3D accelerometer (±2g/±4g/±8g) + 3D magnetometer
Power Management	Flexible power supply options
Expansion Options	Form factor compatible with Arduino^® Rev3 pin layout
Software and support application development	MCUXpresso SDK with optional FreeRTOS support MCUXpresso IDE MCUXpresso Config Tools

Buy

FRDM-K32L2A4S ^Active
NXP Freedom Platform for K32 L2A MCUs
Kit Contains:
- FRDM-K32L2A4S hardware
- USB cable

Use Coupon

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Don't have an NXP coupon? You can purchase this product from one of our authorized distributors.

Design Resources

Documents

Data Sheet ( 1 )

K32 L2A Microcontroller with 512 KB Flash and 128 KB SRAM^{(REV
2
)}

72 MHz Cortex-M0+ based Microcontroller Supports ultra-low-power Arm based microcontroller with crystalless USB feature, large flash and RAM, evolutionary low-power peripherals and security features. This is an ideal solution forSen sor Hub applications, Smart Energy, Internet of Things, and Edge and Concentrator.
- PDF
- 1.4 MB
- 23 Jan 2020
- K32L2Ax
- [ English ]
- Supported Parts

Reference Manual ( 1 )

K32 L2A Reference Manual^{(REV
2
)}

The K32 L2A is based on the Arm® Cortex®-M0+ processor. This device provides up to 96 MHz (HSRUN mode) CPU performance. It supports ultra low power, up to 512 KB Flash with 128 KB SRAM and integrates functions such as USB with crystal-less recovery.
- PDF
- 12.2 MB
- 23 Jan 2020
- K32L2AxRM
- [ English ]
- Supported Parts

User Guide ( 2 )

FRDM-KL32L2A4S User’s Guide^{(REV
0
)}

The FRDM-K32L2A4S supports power supply voltage range from 1.71 V to 3.6 V. It features a K32L2A4S, a device running a maximum operating frequency of 96 MHz, up to 512 KB Flash and numerous analog and digital peripherals.
- PDF
- 1.9 MB
- 06 Feb 2020
- FRDMK32L2A4SUG
- [ English ]
Getting Started with the FRDM-K32L2A4S
- GS-FRDM-K32L2A4S
- 20 Mar 2020
- GS-FRDM-K32L2A4S
- [ English ]

Design Resources

Design Tools & Files ( 1 )

Printed Circuit Boards and Schematics ( 1 )

FRDM-K32L2A4S Design Files^{(REV
0
)}
- ZIP
- 3.8 MB
- 2020-05-19 12:04:00
- FRDM-K32L2A4S-DF
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file size downloads.
- View Queue

Software

Embedded Software ( 1 )

BSP, Drivers and Middleware ( 1 )

MCUXpresso SDK Builder for the K32L2A4 Freedom Board^{(REV
1
)}

MCUXpresso Software Development Kit for the K32L2A4 Freedom Board. (Can also be downloaded directly in MCUXpresso IDE).
- EXTERNAL
- 1 KB
- 2021-02-09 08:44:00
- MCUXPRESSO-SDK-FRDM-K32L2A4S
Download
