MCIMX8M-EVK: Evaluation Kit for the i.MX 8M Applications Processor

Overview

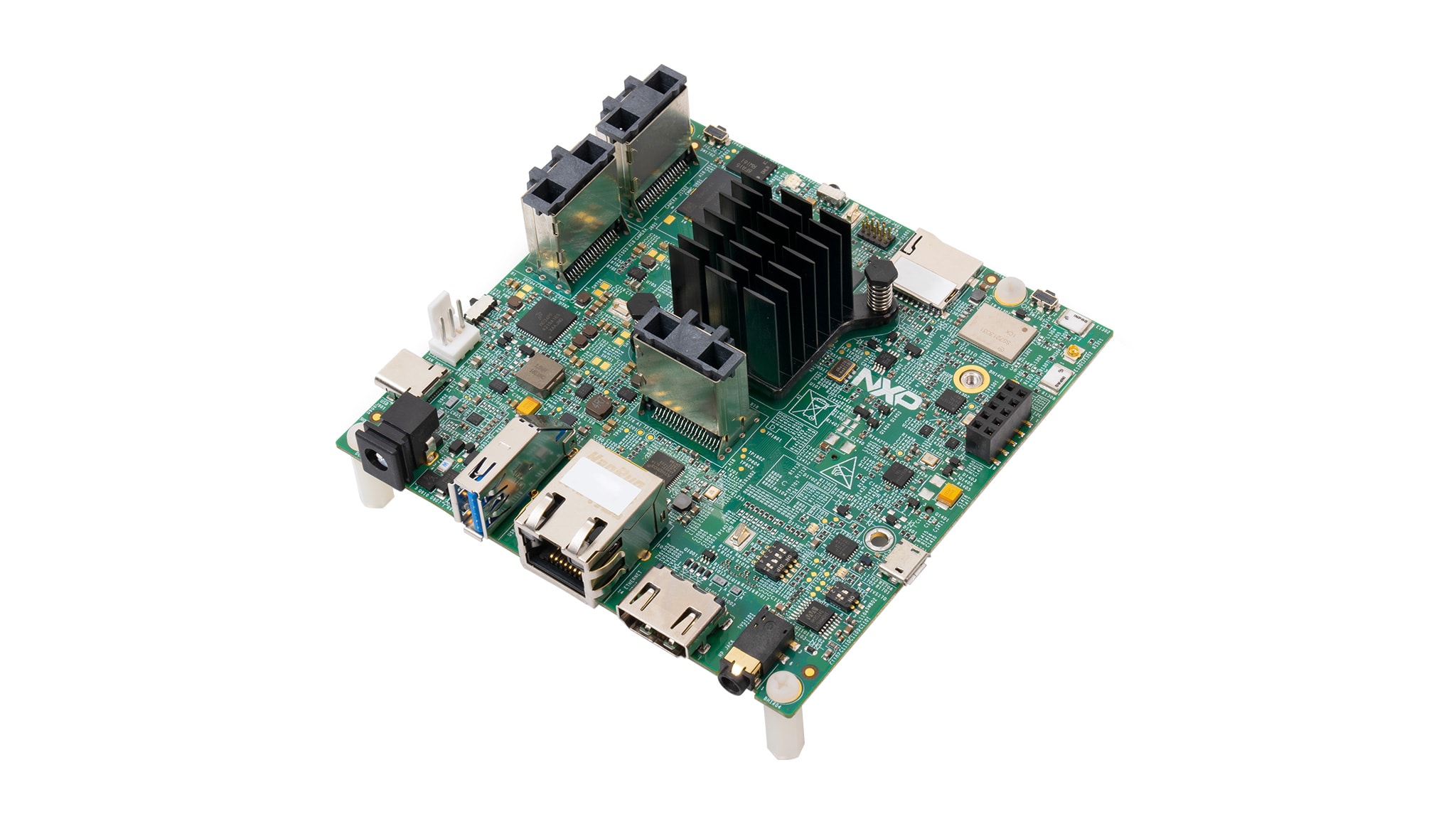

Evaluation Kit for the i.MX 8M Applications Processor - Top

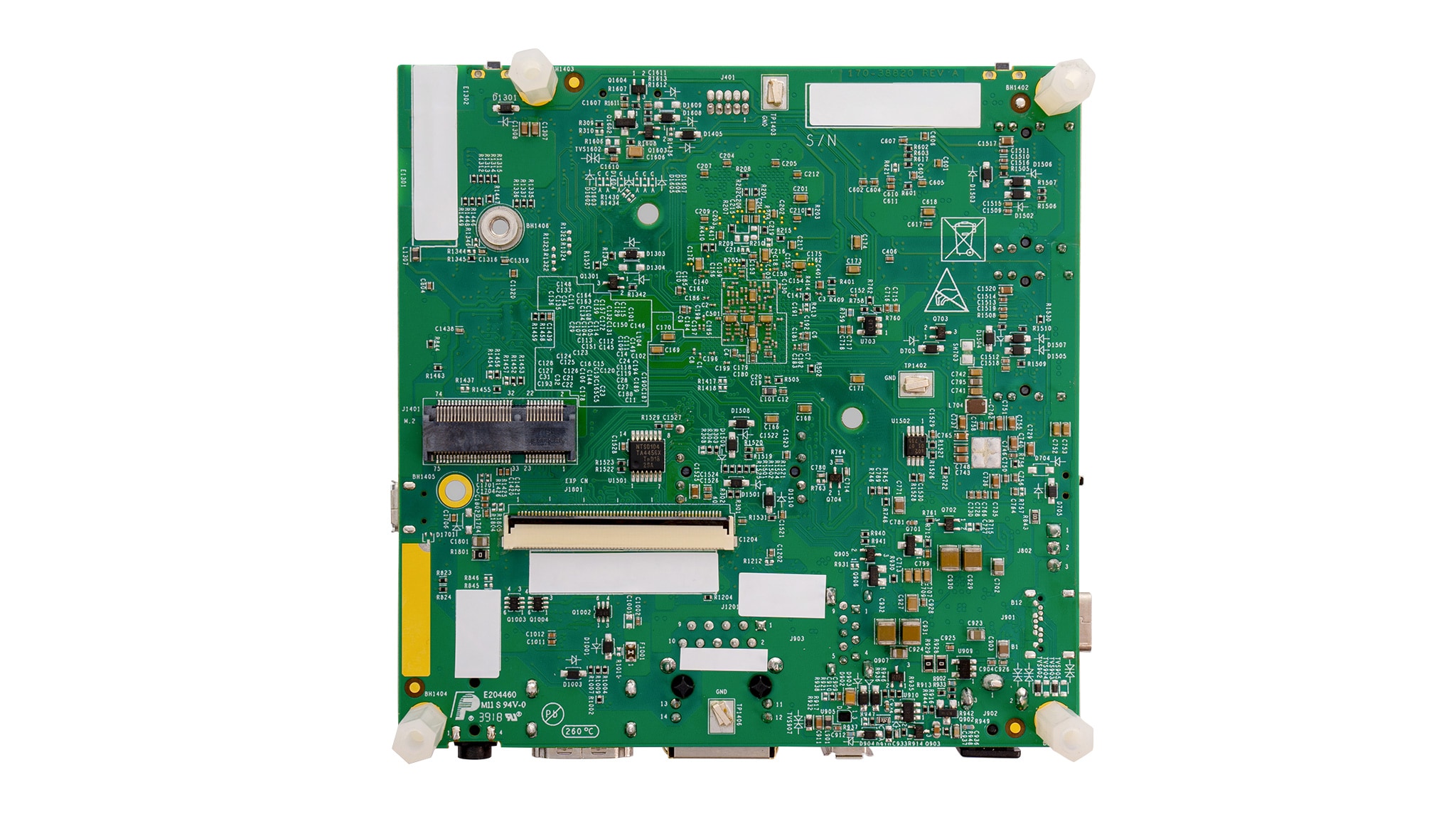

Evaluation Kit for the i.MX 8M Applications Processor - Bottom
Evaluation Kit for the i.MX 8M Applications Processor

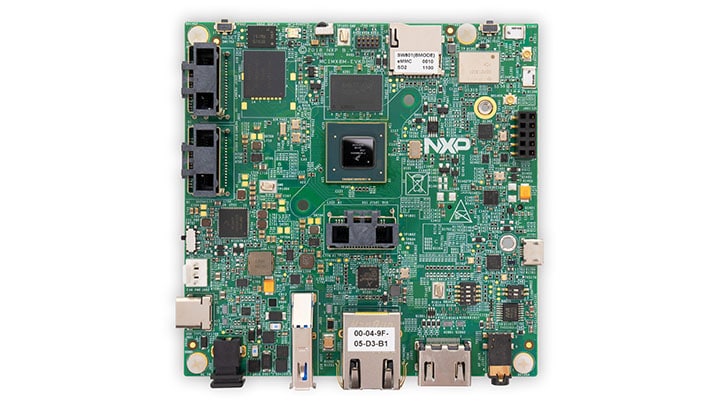

Evaluation Kit for the i.MX 8M Applications Processor - Top

Evaluation Kit for the i.MX 8M Applications Processor - Top

Evaluation Kit for the i.MX 8M Applications Processor - Bottom

Evaluation Kit for the i.MX 8M Applications Processor - Bottom

Evaluation Kit for the i.MX 8M Applications Processor

Evaluation Kit for the i.MX 8M Applications Processor

i.MX 8M Introduction

i.MX 8M Introduction

Solutions for Secure, Connected Industrial Designs Enabled by i.MX 8M Applications Processor

Solutions for Secure, Connected Industrial Designs Enabled by i.MX 8M Applications Processor

Dual Displays with i.MX 8M Evaluation Kit

Dual Displays with i.MX 8M Evaluation Kit

Getting Started with the i.MX 8M Evaluation Kit

Getting Started with the i.MX 8M Evaluation Kit

Sound Bar and AV Receiver Solution Powered by i.MX 8M EVK

Sound Bar and AV Receiver Solution Powered by i.MX 8M EVK

NXP Smart Home

NXP Smart Home

i.MX 8-based Neural Networks for Object Recognition

i.MX 8-based Neural Networks for Object Recognition

Specifications

Supported Devices

Processors and Microcontrollers

i.MX 8 Processors
  • i.MX8M : i.MX 8M Family - Arm® Cortex®-A53, Cortex-M4, Audio, Voice, Video

Products

  • NTBA104GU12 : Dual supply translating transceiver; auto direction sensing; 3-state

Power Management

Load Switches
  • NX5P3090UK : USB PD and Type-C Current-Limited Power Switch
  • NX5P3290UK : USB PD and Type-C Current-Limited Power Switch

MoreLess

Technical and Functional Specifications

Processor
  • i.MX 8MQuad
  • 4x Arm Cortex-A53 @ 1.5 GHz
  • 1 MB L2 cache
  • Arm Cortex-M4 @ 266 MHz
Power Management
 NXP PMIC PF4210
Memory
  • LPDDR4 x32 @3200MT w/ 4 GB
  • eMMC 5.0 w/ 16 GB
  • MicroSD connector
  • QSPI w/ 256 GB
Display / Camera Connectors
  • HDMI 2.0a Type-A connector
  • MIPI-CSI Camera mini-SAS connector
  • MIPI-DSI Display mini-SAS connector
Wireless
  • Bluetooth® 4.1 / EDR
  • Wi-Fi 802.11 a/b/g/n/ac MIMO 2x2
  • Onboard chip antenna
  • External antenna connector
Audio
  • Audio DAC 24-bit 192 kHz Stereo
  • HP Jack 3.5 mm audio connector
  • Board Expansion Connector for Audio Interfaces
Connectivity
  • 10/100/1000 Ethernet
  • USB 3.0 Type A connector
  • USB 3.0 Type C connector
  • PCIe M.2 interface
  • Infrared
Debug
  • JTAG connector
  • UART via USB
Tools & OS support
  • Linux®
  • AndroidTM
  • FreeRTOSTM

Buy

  • MCIMX8M-EVKB   Active

  • Evaluation Kit for the i.MX 8M Applications Processor
    • i.MX 8MQuad applications processor-based system
    • Power Supply
    • Quick Start Guide
      • USB 3.0 Type C to Type A
      • USB 2.0 Type A to Type Micro
    • 1 @ US
    • $449.00
