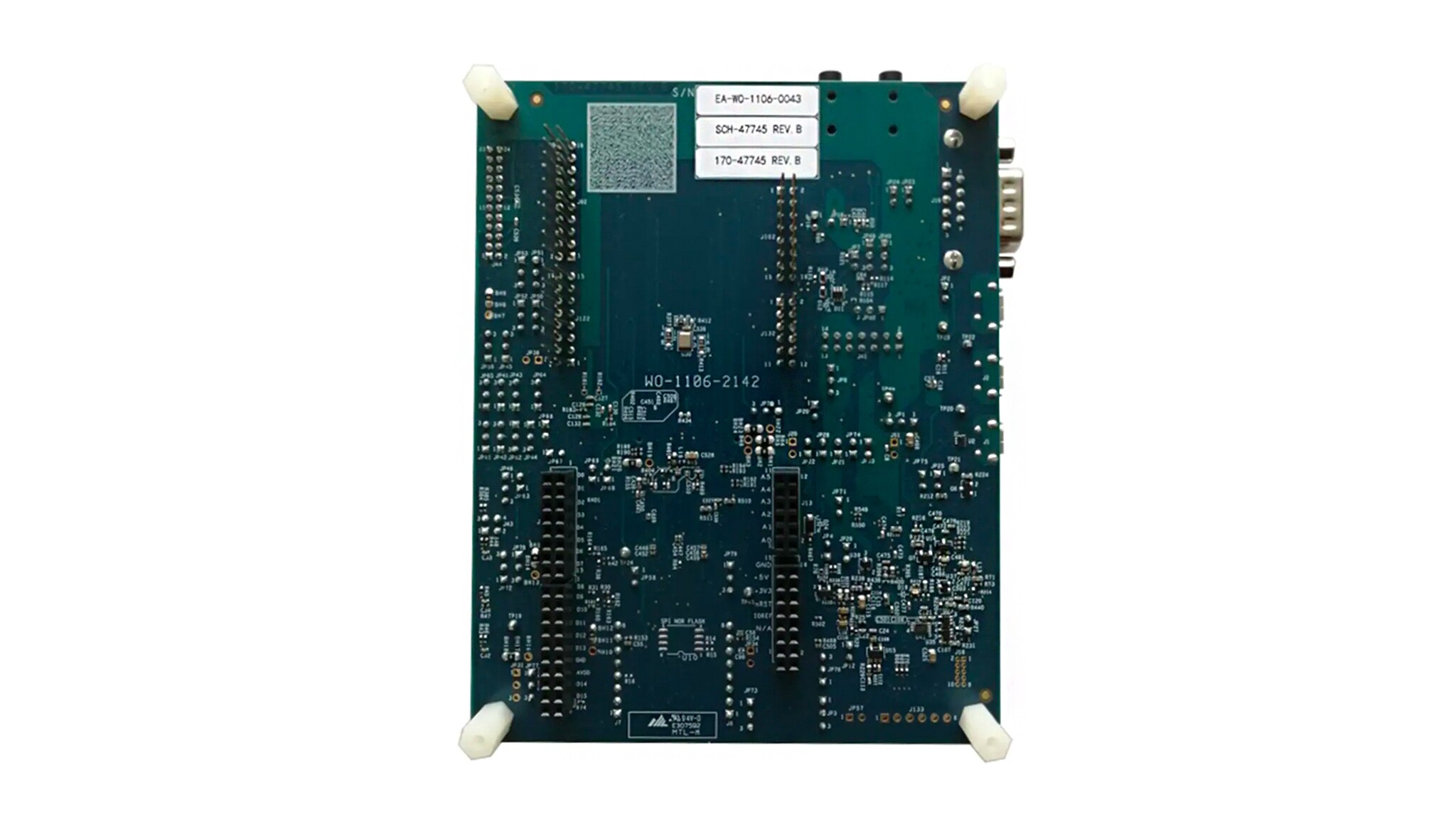

LPCXpresso55S36 Development Board

LPCXpresso55S36

Roll over image to zoom in

Product Details

Select a section:

Features

Connectivity

  • I2C, UART and SPI port from LPC55S36, CAN-FD transceiver and D-sub connector compatible with PCAN-USB FD adaptor

Debug Capabilities

  • On-board, high-speed USB, MCU-link debug probe with CMSIS-DAP and SEGGER J-Link protocol options
  • Hardware support for external debug probe or external debug target

Expansion Connectors

  • MikroEletronika Click expansion option
  • LPCXpresso-V3 expansion connectors, compatible with arduino UNO R3
  • PMod compatible expansion / host connector

User Interface

  • RGB user LED, plus reset, ISP, wake and user buttons

Buy Options

LPC5536-EVK-Image

Click to expand

  • $70.43 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor

Design Resources

Select a section:

Documentation

Quick reference to our documentation types.

4 documents

Design Files

1 design file

Software

2 software files

Note: For better experience, software downloads are recommended on desktop.

Support
