LPCXpresso54628 Development Board

OM13098 Active

Roll over image to zoom in

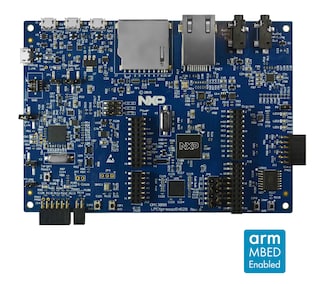

The board is comprised of target LPC54628 device with an onboard, CMSIS-DAP / SEGGER® J-Link compatible debug probe. The onboard probe is compatible with MCUXpresso IDE and other leading toolchains such as those from Keil™ and IAR®. The board is also equipped with a standard 10-pin header enabling the use of 3rd party to debug probes. In addition to standard LPCXpresso V3 features, this board includes a complete set of peripheral interfaces to enable developers to fully explore the capabilities of LPC546xx devices.

The LPCXpresso54628 is binary backward compatible with the LPCXpresso54608 and LPCXpresso54618 boards.

MCUXpresso configuration tools and extensive SDK drivers/examples are available for the board at mcuxpresso.nxp.com.

The LPCXpresso54628 board is an Arm® Mbed™-Enabled platform for developing the Internet of Things with a free, open-source embedded operating system. Click here to learn more.

Product Details

Supported Devices

Processors and Microcontrollers

LPC54000 Arm Cortex-M4

  • LPC546XX: Power-Efficient Microcontrollers (MCUs) With Advanced Peripherals Based on Arm® Cortex®-M4 Core

Features

Microcontroller

    LPC54628 Arm® Cortex® - M4

  • Running at up to 220 MHz

Power Management

  • Built-in power consumption measurement for target LPC546xx MCU

Display / Camera Connectors

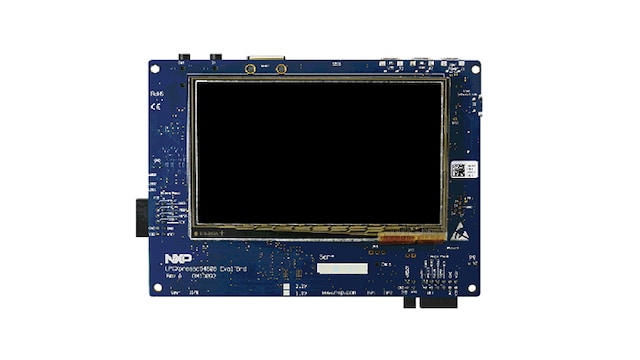

  • 272x480 color LCD with a capacitive touchscreen

Connectivity

  • High-speed USB
  • Link2 debug probe with CMSIS-DAP and SEGGER J-Link protocol options
  • UART and SPI port bridging from LPC546xx target to USB via the onboard debug probe
  • Support for external debug probe
  • High and full speed USB ports with micro A/B connector for host or device functionality
  • 10/100Mbps Ethernet (RJ45 connector)
  • Multiple Expansion options, including Arduino® UNO and PMod

Memory

  • Winbond 128 Mb W25Q128JVFIM Quad-SPI flash
  • Winbond 128 Mb W9812G6JB-6I SDRAM
  • Full-size SD/MMC card slot

User Components

  • 3 x user LEDs
  • Plus reset
  • ISP (3)
  • User buttons

Sensors

  • NXP MMA8652FCR1 accelerometer

Audio

  • Knowles SPH0641LM4H digital microphone
  • Stereo audio codec with line in/out

Buy Options

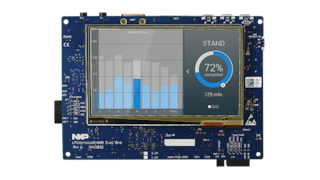

OM13098-Image

Click to expand

  • OM13098
    Active

  • LPCXpresso board for LPC54628.

  • 1x LPCXpresso54628 Development Board

  • $79.35 USD
  • For a quantity of 1
    • Availability: Pending Stock
