The real-time edge software enables real-time applications for the i.MX and Layerscape products and can be easily integrated with the Yocto SDKs for these products. Real-time edge software enables real-time capabilities via support for Preempt-RT for low latency applications, baremetal framework and support for real-time operating system (RTOS) on the Arm®-Cortex®-A or Cortex®-M cores. Real-time edge software also supports real-time protocols and stacks for IEEE1588 PTP network synchronization, time sensitive networking (real-time ethernet), EtherCAT leader, CANOpen and OPC-UA.

Complete with reference software a system-validated board support package (BSP), NXP provides you with the tools to test and maximize the performance of the applications you develop.

Software Details

Select a section:

Diagram

Real-Time Edge Software Block Diagram

Real-Time Edge Software Block Diagram
Get diagram PDF

Features

Real-Time System

  • Real-time Linux enabled with PREEMPT_RT
  • U-Boot based baremetal framework low latency scenarios
  • Real-time operating system on Arm® Cortex®-A cores and Cortex®-M core for low latency
  • Jailhouse as partitioning hypervisor for hardware resource partitioning

Real-Time Networking

  • IEEE802.1AS clock synchronization
  • TSN standards implementation
  • TSN Configuration with Linux tc command and NETCONF/YANG
  • GenAVB/TSN stack
  • Network redundancy for seamless recovery with 802.1CB, HSR and ERPS

Protocols

  • IGH EtherCAT leader stack and EtherCAT-capable native drivers
  • CANopen over EtherCAT framework based on IGE CoE interface and multiples axes control
  • OPC-UA and OPC-UA pub/sub
  • FlexCAN and CANopen

Supported Devices

  • LS1046A: Layerscape® 1046A and 1026A Processors
  • i.MX6ULL: i.MX 6ULL Single-Core Processor with Arm® Cortex®-A7 Core
  • LS1028A: Layerscape® 1028A Applications Processor
  • i.MX8MMINI: i.MX 8M Mini - Arm® Cortex®-A53, Cortex-M4, Audio, Voice, Video
  • LX2160A: Layerscape® LX2160A, LX2120A, LX2080A Processors
  • LS1043A: Layerscape® 1043A and 1023A Processors
  • IMX8MPLUS: i.MX 8M Plus – Arm® Cortex®-A53, Machine Learning, Vision, Multimedia and Industrial IoT
  • LS1021A: Layerscape® 1021A Dual-Core Processor with LCD Controller
  • LS1012A: Layerscape® 1012A Low Power Processor
  • i.MX8X: i.MX 8X Family – Arm® Cortex®-A35, 3D Graphics, 4K Video, DSP, Error Correcting Code on DDR
  • i.MX93: i.MX 93 Applications Processor Family – Arm® Cortex®-A55, ML Acceleration, Power Efficient MPU

Current Release

Release and Documentation​ Build Sources Supported Platforms/Pre-Built Binary​ What's New

Real Time Edge Software v2.6

  • Release Date: Jul 2023

Documentation
  • See README on instructions for each release.
  • Real-time System
    • Preempt-RT Linux 6.1.22-rt8
    • Baremetal
      • LS1028A
        • Preempt-RT Linux + Baremetal
        • All cores running under Baremetal
        • Math library support
      • DM mode for Baremetal example and driver: I2C, QSPI
    • Harpoon 2.4.0
  • Heterogeneous Multicore Framework
    • VirtIO Ethernet sharing RFP
  • Protocols
    • EtherCAT master: CODESYS networking optimization
      • i.MX 8M Plus, i.MX 8M Mini, i.MX 93, i.MX 6ULL
    • TSN
      • Enhancements for Avnu Alliance Conformance Test for IEEE802.1Qbu/IEEE802.3br
    • AVB Milan 1.1 Test Suite conformance
  • Benchmark
    • Heterogeneous multicore performance: networking
    • CODESYS EtherCAT master stack benchmarking
  • NPI
    • i.MX 93 A0 9*9:
      • Preempt RT, AVB/TSN, TSN stack& config tool
    • i.MX 8DXL: AVB Media Clock Recovery
  • Based on i.MX Linux 6.1.22_2.0.0
    • U-Boot v2023.04
    • LTS 6.1.22
    • Yocto mickledore 4.2
  • Based on MCUXpresso SDK 2.13.1

Real-Time Edge Past Releases​​

Release​ Build Sources​ and Documentation Supported Platforms/Demo Images​ What's New
Real-Time Edge Software 2.5
  • Real-Time System
    • Heterogeneous multi-core
      • RPMSG Vring buffer increasing from 256 KB to 8 MB
      • VirtIO Network sharing with performance optimization
    • Baremetal improvements on LS1046A
      • All Cortex-A cores running under baremetal
      • Flextimer
      • Baremetal example and driver change to DM mode: GPIO
    • Integration of Harpoon 2.3
      • Support for AVB Talker in FreeRTOS audio app
      • Support for RPMsg control (FreeRTOS, all boards)
      • Support for Virtual Ethernet
      • Basic support for i.MX 93 ("hello world")
  • Protocols
    • EtherCAT master
      • Basic CodeSYS PLC control support and native driver optimization
      • MX 8M Plus, i.MX 8M Mini, i.MX 93, i.MX 6ULL
  • NPI
    • i.MX 93
      • Baremetal, RPMSG based UART sharing
      • AVB Media Clock Recovery
    • MX8DXL: AVB audio talker/listener
  • Platform
    • eMMC booting on LS1028ARDB and LS1046ARDB
    • Removal of test and doc support, keeping code inclusion for:
      • LS1021AIOT, LS1021ATSN, LS1021ATWR, LS1012ARDB
  • Based on i.MX Linux 5.15.71_2.2.0
    • LTS 5.15.71
    • Yocto Kirkstone 4.0
    • U-Boot v2022.04
Real-Time Edge Software 2.4
  • Real-Time System
    • PREEMPT-RT Linux-5.15.52-rt
    • Heterogeneous multi-core
      • Inter-core communication between Cortex-A Core and Cortex-A/M Core on i.MX8M Plus and i.MX8M Mini
        • UART 9-bit Multidrop mode (RS-485) support
        • RPMSG between Cortex-A Cores
          • SGI mailbox driver on Linux
          • RPMSG Lite with SGI mailbox on RTOS
      • Loading binaries on i.MX8M Mini and i.MX8M Plus to the Cortex-M from Linux
    • Baremetal extensions on LS1046A
      • Single hardware interrupt routed to multiple cores
      • Newlib math library
    • Integration of Harpoon 2.2.0
  • Protocols
    • AVB Milan extensions
    • EtherCAT master stacks
      • EtherCAT master multiple axes control system
    • HMI: LS1028A and i.MX8MP Plus
      • HTML5/chromium
    • Modbus
      • Libmodbus package integration
      • Modbus-simulator client and server
    • WIFI enabled on i.MX8DXL
  • Reference Design
    • EtherCAT master multiple axes control system
      • HCFA 60-axes servo using CSP mode
  • NPI
    • i.MX93 A0 11*11: Preempt RT, EtherCAT master, AVB/TSN, TSN stack and config tools, TSN performance, OPC-UA Pub/Sub
    • i.MX8DXL: Preempt RT, EtherCAT master, TSN stack and config tools, OPC-UA Pub/Sub
  • Based on i.MX Linux 5.15.52_2.1.0
    • LTS 5.15.52
    • Yocto Kirkstone 4.0
    • U-boot v2022.04
Real-Time Edge Software 2.3
  • Industrial Networking
    • TSN
      • Dynamic TSN configuration (EAR)
        • Qci configuration
        • CAF configuration based on 802.1 Qch
      • YANG modules updating to latest version
    • AVB
      • Endpoint support on i.MX 6ULL, i.MX 8M Plus and i.MX 8M Mini
  • Real-Time System
    • PREEMPT-RT Linux-5.15.5-rt22
    • Heterogeneous AMP software
      • Yocto based unified delivery for Cortex-A and Cortex-M
      • Resource sharing
        • RPMSG based UART sharing
          • Virtual UART to physical UART 1:1 mapping
          • Virtual UART to physical UART n:1 mapping
          • Virtual UART to physical UART flexible mapping
    • Harpoon (RTOS on Cortex-A 2.1)
      • Zephyr integration on i.MX 8M Plus and i.MX 8M Mini
      • Audio Application
        • sine wave playback
        • playback and recording (loopback)
        • audio pipeline
    • Industrial application:
      • AVB/TSN over ethernet test application
      • CAN test application
  • Protocols
    • EtherCAT master stack
      • IGH EtherCAT master native driver on LS1043A and LS1046A
      • Multiple EtherCAT masters
      • Flexible port selection for EtherCAT and Ethernet
    • SOEM EtherCAT master stack enablement (PRC):
      • RTOS on Cortex-M on i.MX 8M Plus
      • RTOS on Cortex-M on i.MX 8M Mini
      • FreeRTOS or without an operating system
  • Benchmark
    • Scheduling latency on Preempt_RT and Harpoon RTOS
    • Inter-core communication bandwidth of BareMetal
    • Packet processing time of TSN
    • Packet processing time of EtherCAT
  • NPI
    • i.MX93 A0 11*11: Preempt RT, EtherCAT master, AVB/TSN, TSN stack and config tools, TSN performance, OPC-UA Pub/Sub
    • i.MX8DXL: Preempt RT, EtherCAT master, TSN stack and config tools, OPC-UA Pub/Sub
  • Based on i.MX Linux 5.15.5_1.0.0
    • Linux 5.15.5-rt22
    • U-Boot v2021.04
    • Yocto Honister 3.4
Real-Time Edge Software 2.2
  • Industrial Networking
    • TSN
      • 802.1AS: PHY delay correction calibration
      • AF_XDP performance improvements
      • IEEE 1588 PTP UDP on LS1028ARDB TSN switch
  • Real-time System
    • PREEMPT-RT Linux-5.10.72-rt53
    • Harpoon (RTOS on Cortex-A)
      • Integration of Harpoon on i.MX 8M Plus and i.MX 8M Mini
  • Protocols
    • EtherCAT master stack
      • IGH EtherCAT master native driver on LS1043A and LS1046A
        • Multiple EtherCAT masters
        • Flexible port selection for EtherCAT and Ethernet
      • SOEM EtherCAT master stack enablement (EAR)
        • RTOS on Cortex-M on i.MX 8M Plus
        • FreeRTOS
        • or without an operating system
  • Based on i.MX Linux 5.10.72_2.2.0
    • Linux 5.10.72-rt
    • U-Boot v2021.04
    • Yocto Hardknott 3.3
Real-Time Edge Software 2.1
  • Industrial Networking
    • TSN
      • 802.1AS-2020
        • CMLDS (generic interface to PTP stack)
      • TSN Applications
        • TSN application with AF_XDP data path
      • TSN Configurations
        • Path selection for Qbv
  • Real-time System
    • PREEMPT-RT Linux 5.10.52-rt47
    • Jailhouse
      • GPIO in non-root cell Linux support on LS1028ARDB
      • ENETC in non-root cell Linux support on LS1028ARDB
  • Protocols
    • Native EtherCAT-capable network driver module on ENETC (LS1028ARDB)
    • Native EtherCAT-capable network driver module on FEC (i.MX8M Plus EVK)
    • EtherCAT: CoE 6-8 axis control
    • OPC UA PubSub
    • OPC UA PubSub over TSN
  • Based on i.MX Linux 5.10.52_2.1.0
    • Linux 5.10.52-rt
    • U-Boot v2021.04
    • Yocto Hardknott 3.3
Real-Time Edge Software 2.0
  • Based on Yocto project 3.2 (Gatesgarth)
  • Real-time System
    • PREEMPT-RT Linux
    • Heterogeneous architecture
      • Baremetal: PREEMPT-RT Linux on A core + Baremetal architecture on A core
        • i.MX 8M Plus EVK, i.MX 8M Mini EVK, LS1028ARDB, LS1046ARDB, LS1043ARDB, LS1021A-IoT
      • Jailhouse: PREEMPT-RT Linux on A core + Jailhouse + PREEMPT-RT Linux on A core
        • i.MX 8M Plus EVK, LS1028ARDB, LS1046ARDB
  • Industrial Networking
    • TSN
      • TSN Standards
        • IEEE 802.1Qav
        • IEEE 802.1Qbv
        • IEEE 802.1Qbu
        • IEEE 802.1Qci
        • IEEE 802.1CB
        • IEEE 802.1AS-2020 (gPTP)
        • IEEE 802.1Qat-2010 (SRP)
      • TSN Configurations
        • Linux tc command and tsntool
        • NETCONF/YANG
        • Dynamic TSN configuration - web-based TSN configuration, dynamic topology discovery
      • TSN Applications
        • Example for real-time traffic processing
    • Networking
      • 802.1 Q-in-Q
      • VCAP tc flower chain mode
        • Priority set, VLAN tag push/pop/modify, Policer Burst and Rate Configuration, drop/trap/redirect
  • Protocols
    • EtherCAT master
      • IGH EtherCAT master stack
      • Native EtherCAT-capable network driver module (i.MX 8M Mini EVK)
    • FlexCAN
      • SocketCAN on Linux kernel
    • CANOpen
      • CANOpen master and slave example code
    • CoE: CANOpen over EtherCAT
      • CiA402(DS402) profile framework based on IGH CoE interface
      • EtherCAT CoE 6-8 axis control (i.MX 8M Mini EVK)
    • OPC-UA/OPC-UA pub/sub
      • open62541
    • Modbus
      • Modbus master and slave
      • Modbus-RTU
      • Modbus-TCP
      • Modbus-ASCII
  • New Added Platform

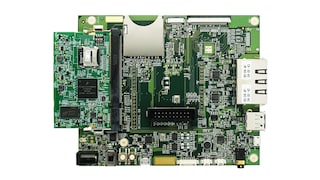

    • i.MX 6ULL EVK
