TEA2208T Active Bridge Rectifier Controller Demo Board

TEA2208DB1576
No Longer Manufactured

Click image to open expanded view

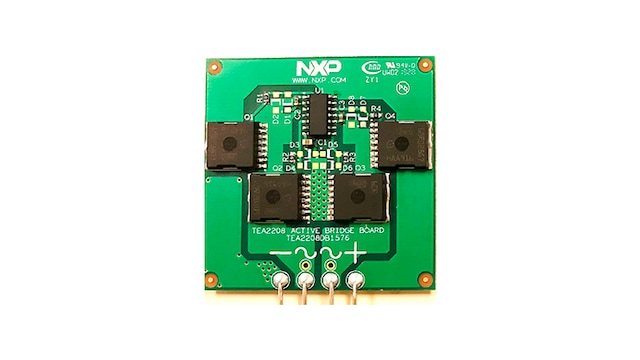

The TEA2208T is an active bridge rectifier controller, which replaces the traditional diode bridge. Using the TEA2208T with low-ohmic high voltage external MOSFETs, significantly improves the efficiency of the power converter as the typical rectifier diode forward conduction losses are eliminated. Additionally, the TEA2208T incorporates an X-capacitor discharge function. This demo board contains a TEA2208T and four low ohmic high voltage MOSFETs.

Supported Devices

Power Management

AC-DC Controllers

  • TEA2208T: Full Wave Active Bridge Rectifier Controller

Features

Power Management

  • Increased efficiency by saving forward conduction losses of conventional bridge rectifier
  • Directly drives all four rectifier MOSFETs with very low external part count
  • Integrated X-capacitor discharge (2 mA)
  • Self-supplying and very low IC power consumption (2 mW)

Buy Options

TEA2208DB1576-Image

Click to expand

TEA2208DB1576
No Longer Manufactured

TEA2208T Active Bridge Rectifier Controller Demo Board.
