FS5600 Evaluation Board

KITFS5600FRDMEVM

Roll over image to zoom in

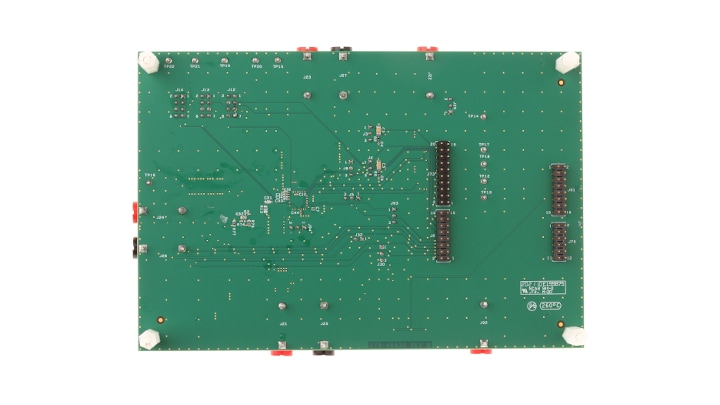

The KITFS5600FRDMEVM is the customer evaluation board featuring the FS5600 dual DC-DC converter.

The kit integrates all hardware needed to fully evaluate the FS5600. It integrates a communication bridge based on the FRDM-K82F freedom board to interface with the FS5600 GUI software interface and fully configure and control the FS5600.

Product Details

Select a section:

Supported Devices

Power Management

Safety SBCs

  • FS5600: Automotive Dual Buck Regulator and Controller with Voltage Monitors and Watchdog Timer

Features

General

  • Dual-Output
  • OTP Programmable
  • Fit to ASIL-B Safety Level

Buy Options

  • KITFS5600FRDMEVM

  • FS5600 Evaluation Board.

  • Kit Contains

    • Assembled and tested evaluation board in an anti-static bag
    • Pre-programmed FRDM-K82F freedom development platform
    • USB cable
    • Quick start guide
  • $414.00 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 1
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
