S12ZVC Mixed-Signal MCU for Automotive and Industrial CAN Applications

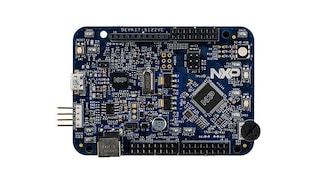

S12ZVC

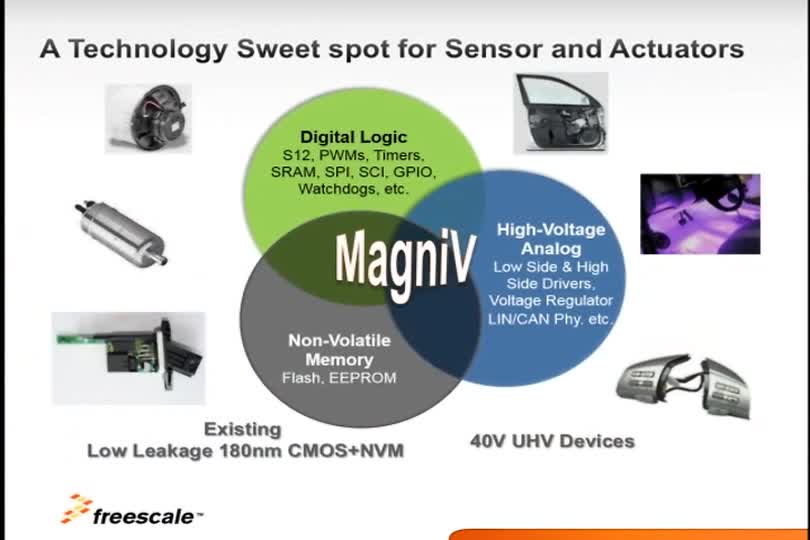

Click over video to play

The S12ZVC platform, part of the S12 MagniV® mixed-signal MCU family, offers a low-cost, highly integrated solution that enables the design of smallest possible automotive CAN-termination nodes, while the family concept gives you scalability for platform design.

The S12ZVC integrates a sophisticated S12Z core together with a 12 V to 5 V voltage regulator and a CAN physical layer for automotive and industrial applications such as sensors, actuators switch panels or other user interfaces.

For additional information and sample availability, contact your local NXP® Sales Office.

Block Diagram

S12 MagniV Mixed-Signal MCU for CAN Applications Block Diagram

S12 MagniV Mixed-Signal MCU for CAN Applications
Get diagram PDF

Features

General

  • Enhanced S12Z core at 32 MHz bus speed
  • Up to 192 KB Flash (with ECC)
  • 2 KB EEPROM (with ECC)
  • Up to 12 KB RAM (with ECC)
  • Vreg for 3.5 to 20-volt operating range, scalable in supply for on- and off-chip systems
  • CAN physical layer

High-resolution mixed signal

  • 12-bit resolution ADC
  • 16ns resolution PWM and Timer

SafeAssure Program

SafeAssure Functional Safety Program

When it comes to functional safety, NXP stands for quality and reliability. Our SafeAssure program simplifies system-level safety requirements in accordance with ISO 26262.
Read more

S12ZVC Family Members

Feature S12ZVCA S12ZVCA S12ZVC S12ZVC
Package 64-pin LQFP-EP 48-pin LQFP 64-pin LQFP-EP 48-pin LQFP
Flash memory (ECC) (KByte) 192 128 96 64 192 128 96 64 192 128 96 64 192 128 96 64
EEPROM (ECC) (KByte)
(4-byte erasable)		 2 2 2 1 2 2 2 1 2 2 2 1 2 2 2 1
RAM (ECC) (KByte) 12 8 8 4 12 8 8 4 12 8 8 4 12 8 8 4
High Speed CAN Physical Layer 1 1 1 1
High Voltage Inputs 2 2 2 2
Vreg for CAN PHY with ext. ballast
(BCTLC)		 yes yes yes yes
VDDX/VSSX pins 2/2 2/2 2/2 2/2
msCAN 1 1 1 1
SCI/SPI/IIC 2/2/1 2/1/1 2/2/1 2/1/1
SENT (Transmitter) 1 1 1 1
16-bit Timer channels 8 + 4 (20 ns resolution) 4 + 4 (20 ns resolution) 8 + 4 (20 ns resolution) 4 + 4 (20 ns resolution)
16-bit PWM channels 4 + 4 (20 ns resolution) 4 + 3 (20 ns resolution) 4 + 4 (20 ns resolution) 4 + 3 (20 ns resolution)
ADC channels 16 (12-bit) 10 (12-bit) 16 (10-bit) 10 (10-bit)
8-bit DAC 1 1 - -
ACMP 5V (with rail-to-rail inputs) 2 2 - -
EVDD (20 mA source) 1 1 1 1
N-GPIO (25 mA sink) 4 4 4 4
