A71CH | Plug and Trust for IoT | NXP Semiconductors

Product Details

Block Diagram

Choose a diagram:

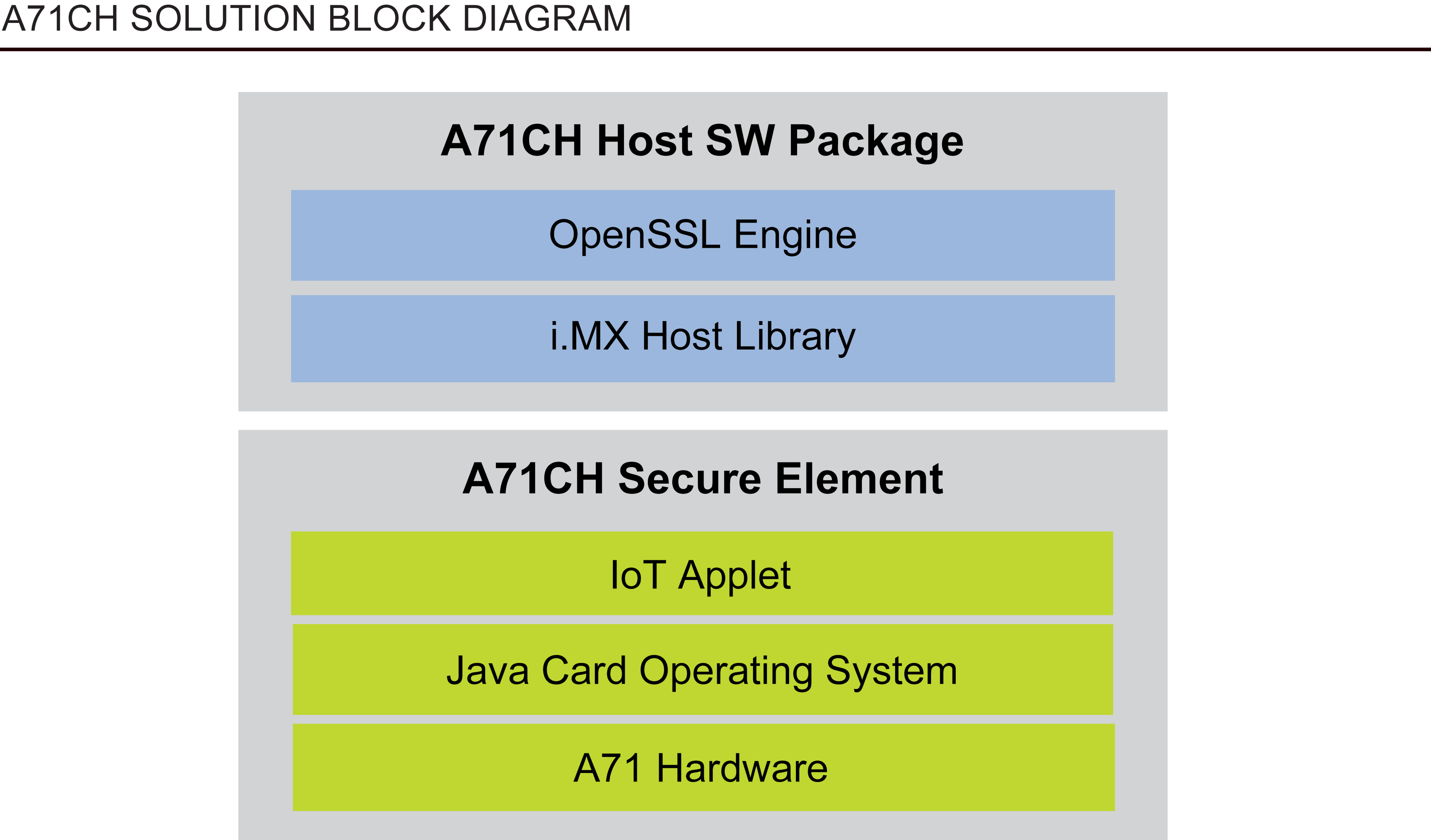

A71CH Block Diagram
A71CH Block Diagram

A71CH Block Diagram

Get diagram PDF

Features

Secure, zero-touch connectivity
End-to-end security, from chip to edge to cloud
Secure credential injection for root of trust at IC level
Protected access to credentials
Fast design-in with complete product support package
Easy to integrate with different MCU and MPU platforms
Encrypted/authenticated interface to host processor
ECC-based authentication
TLS set-up (TLS-PKI, TLS-PSK)
Connectionless message authentication (HMAC)
Protected storage for product leader secrets with key wrapping and key derivation functions, key locking mechanism
Optional trust provisioning by NXP and qualified partners
Standard (-25 to +85 ^°C, A7101) and extended (-40 to +90 ^°C, A7102) temp ranges
HVSON8 (4x4 mm) and WLCSP (2x2 mm) package

K82_150

Active

Complementary

Kinetis^® K82-150 MHz HW Cryptographic Co-Processor and QuadSPI Microcontrollers (MCUs) Based on Arm^® Cortex^®-M4 Core

Data Sheet:
PDF

KW41Z

Active

Complementary

Kinetis^® KW41Z-2.4 GHz Dual Mode: Bluetooth^® Low Energy and 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm^® Cortex^®-M0+ Core

Data Sheet:
PDF

K64_120

Active

Complementary

Kinetis^® K64-120 MHz, 256 KB SRAM Microcontrollers (MCUs) Based on Arm^® Cortex^®-M4 Core

Data Sheet:
PDF

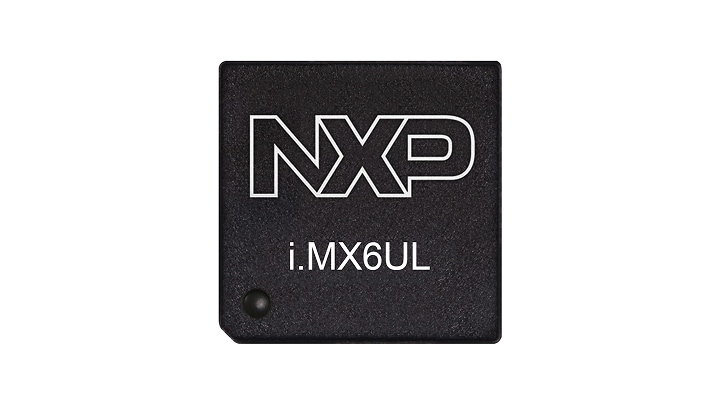

i.MX6UL

Active

Complementary

i.MX 6UltraLite Processor - Low-Power, Secure, Arm^® Cortex^®-A7 Core

Data Sheet:
PDF

SE051

Active

Similar

EdgeLock® SE051: Proven, Easy-to-Use IoT Security Solution with Support for Updatability and Custom Applets

Data Sheet:
PDF

SE050

Active

Similar

EdgeLock® SE050: Plug and Trust Secure Element Family – Enhanced IoT Security with High Flexibility

Data Sheet:
PDF

Documentation

Quick reference to our documentation types.

1-10 of 17 documents

Compact List

A71CH for secure connection to IBM Watson IoT[AN12186]

PDFSep 26, 2018Rev 1.0
A71CH for secure connection to Google Cloud IoT Core[AN12199]

PDFSep 12, 2018Rev 1.1
A71CH Host software porting guidelines[AN12185]

PDFJul 9, 2018Rev 1.0
A71CH Host software package documentation[AN12133]

PDFApr 23, 2018Rev 1.3
A71CH for secure connection to AWS[AN12131]

PDFMar 29, 2018Rev 1.0
A71CH for secure connection to OEM cloud[AN12132]

PDFMar 7, 2018Rev 1.1
A71CH for electronic anticounterfeit protection[AN12120]

PDFMar 7, 2018Rev 1.1
A71CH Quick start guide for OM3710A71CHARD and i.MX6UltraLite[AN12119]Featured

PDFMar 7, 2018Rev 1.1
How to start a development with A71CH[AN12121]Featured

PDFFeb 20, 2018Rev 1.0
A71CH Quick start guide for Windows[AN12134]Featured

PDFJul 9, 2018Rev 1.0
A71CH Quick start guide for OM3710A71CHARD and Kinetis[AN12135]Featured

PDFJul 9, 2018Rev 1.0

IoT Security Brochure[A71CH-IOT]

PDFNov 6, 2020Rev 2.3

A71CH Product Datasheet[A71CH]

PDFSep 27, 2018Rev 1.2

A71CH Leaflet[A71CH-LEAFLET]

PDFSep 25, 2018Rev 2.0

A71CH APDU Specification[AN12229]

PDFJul 18, 2018Rev 3
A71CH Security Guidelines[AN12211]

PDFJul 13, 2018Rev 1
SCI2C Protocol Specification[AN12207]

PDFJun 11, 2018Rev 1.6
