i.MX Surround View System

SURROUND-VIEW-APPLICATION

Roll over image to zoom in

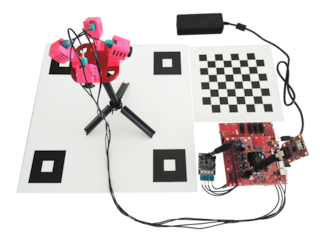

The NXP Surround View System is a technology which provides a 360-degree wraparound a view that can be used for automotive, industrial, and consumer use cases. Providing a 360-degree view assists the driver of an automobile in parking the vehicle safely. Industrial and consumer use cases include building, store and home views of the surrounding property or interior of key rooms for both security, safety and key retail use cases such as customer counting.

Block Diagram

Surround View Application

Surround View Application Software block diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

i.MX 8 Applications Processors

  • i.MX8: i.MX 8 Family – Arm® Cortex®-A53, Cortex-A72, Virtualization, Vision, 3D Graphics, 4K Video

i.MX 6 Processors

  • i.MX6QP: i.MX 6QuadPlus Processor - Quad-Core, High-Performance, Advanced 3D Graphics, HD Video, Advanced Multimedia, Arm® Cortex®-A9 Core

i.MX 9 Processors

  • i.MX95: i.MX 95 Applications Processor Family: High-Performance, Safety Enabled Platform with eIQ® Neutron NPU
  • i.MX-952: i.MX 952 Applications Processor: High-Performance AI-powered Vision Processing

Features

General

  • Supports the i.MX 8QuadMax, 8QuadPlus, 8DualMax and i.MX 6QuadPlus families of application processors
  • Automatic (system) camera calibration tool
  • Wide-angle MIPI cameras (1280 x 800) support
  • High application performance (>30 fps, @HD 1080p)
  • Rendering code optimized for OpenGL® ES 3.0
  • OpenCV 3.4 compliant
  • Supports different vision perspectives (2D – top-down view, 3D – bowl view)
  • Supports different application inputs: camera, static images, video (raw and compressed)

Buy Options

MCIMX6QAICPU2-Image

Click to expand

MCIMX6QAICPU2
Active

SABRE Automotive Platform, Hardware, i.MX 6Quad/6Dual, No Display, No Camera.

    $1299.00 USD
    In Stock :5

    Normally ships 1-2 business days

    ADD TO CART
    MCIMX6QPAICPU3-Image

    Click to expand

    MCIMX6QPAICPU3
    Active

    i.MX 6QuadPlus/DualPlus SABRE Automotive Platform CPU Card.

      $799.00 USD
      Pending Stock
      ADD TO CART
      MCIMXABASEV1-Image

      Click to expand

      MCIMXABASEV1
      Active

      SABRE Automotive Platform, Hardware, i.MX 6Quad/6Dual/6DualLite/6Solo, Expansion Board.

        Order from distributors
        MCIMX8M-EVKB-Image

        Click to expand

        MCIMX8M-EVKB
        No Longer Manufactured

        Evaluation Kit for the i.MX 8M Applications Processor.
