MCUXpresso SDK for Motor Control

MCUXPRESSO-SDK-MOTOR-CONTROL

Roll over image to zoom in

Software Details

Select a section:

Diagram

Choose a diagram:

3-Phase Brushless DC Motor Control Block Diagram

3-Phase Brushless DC Motor Control Block Diagram

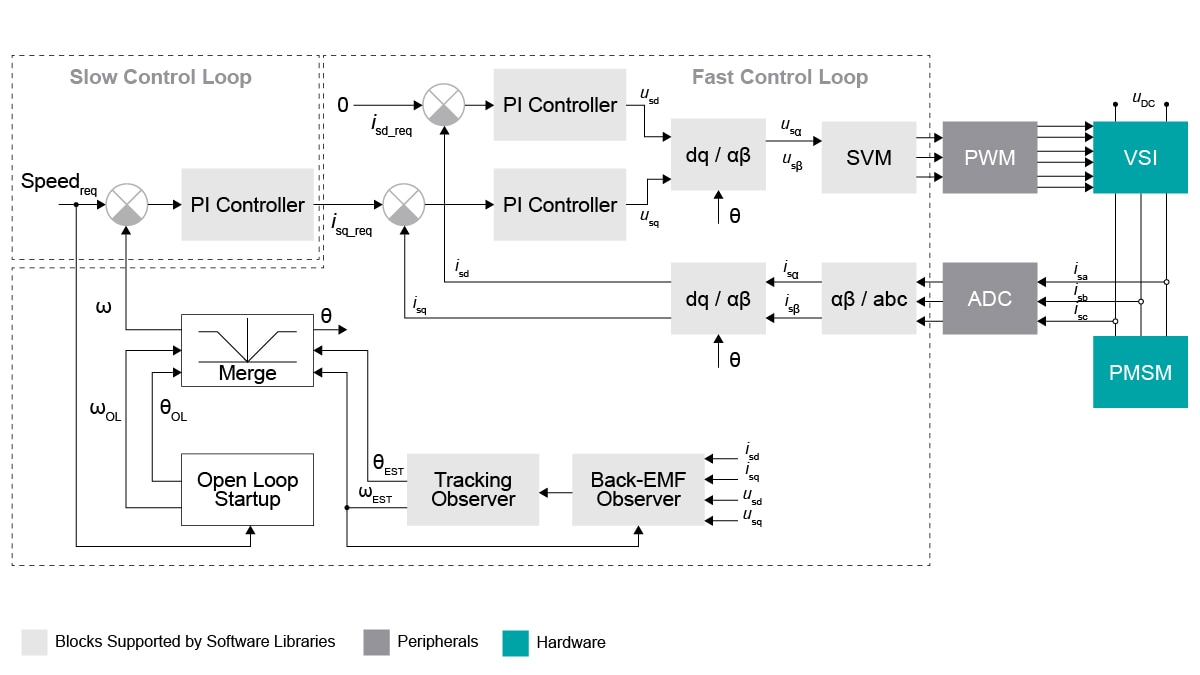

3-Phase PMSM Sensorless Control Block Diagram

3-Phase PMSM Sensorless Control on Kinetis KVx Block Diagram

3-Phase AC Induction Motor Control Block Diagram

3-Phase AC Induction Motor Control Block Diagram

Features

  • Works with FreeMASTER run-time debugging tool
  • MCAT (motor control application tuning) plugin for online motor tuning
  • MCUXpresso Config Tool support (motor control initialization)
  • Sensorless control based on back-EMF observer
  • Control loops – current, speed and position
  • Position sensor support – encoder, Hall sensors
  • Servo control
