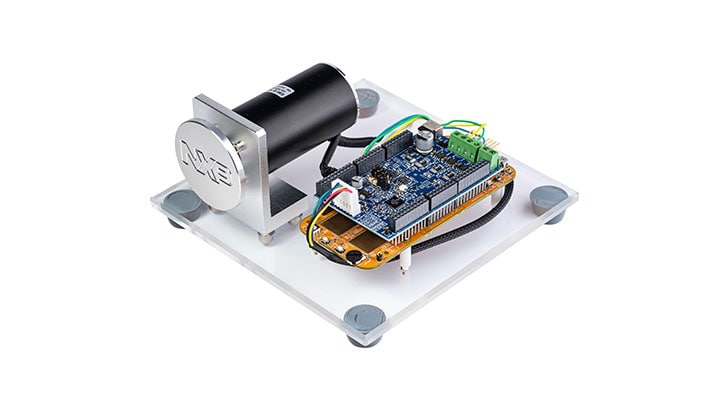

S32K144 BLDC/PMSM Development Kit

MCSPTE1AK144

Roll over image to zoom in

Product Details

Supported Devices

Power Management

BLDC, H-Bridge, Stepper

Mini SBCs

Processors and Microcontrollers

S32K General-Purpose MCUs

Features

Microcontroller (MCU)

  • 32-bit Arm® Cortex®-M4F based >S32K144

Integrated Circuits (IC)

  • GD3000: 3-Phase Brushless Motor pre-driver
  • UJA1169TK: Mini high-speed CAN System Basis Chip

Hardware Features

  • S32K144EVB: S32K144 evaluation board with LIN and CAN connectivity support, OpenSDA programming/debugging
  • DEVKIT-MOTORGD—up to 12 V/5 A 3-phase power stage board based on SMARTMOS GD3000 pre-driver with condition monitoring and fault detection
  • Low-Cost PM Motor—3-phase PM motor equipped with HALL sensor, 24 VDC, 4000 RPM, 40 W, 45ZWN24-40
  • USB cable
  • 12 VDC power supply

Software Features

Motor Control Capabilities

  • Low-voltage 3-phase permanent magnet motor (BLDC or PMSM)
  • 10-18 V, up to 100 W power
  • Single, dual and triple shunt current sensing
  • Hall/Encoder/Sensorless position sensor

Motor

  • LINIX 45ZWN24-40: 3-phase BLDC motor, 24V, 40W, 4000rpm, 2.3A, 2 pole pairs

Power Supply

  • PS-1250APL05/S3: 12 V, 5 A + universal AC plug adapter

Compatibility

Interfaces

  • On-board for CAN
  • On-board for LIN
  • On-board OpenSDA debug interface (including serial communication)
  • SWD/JTAG debug interface

Enablement

  • ANSI-C based example SW created in S32 Design Studio for Arm® built on S32 SDK for S32K1
  • FreeMASTER visualization/configuration support
  • MCAT tool part of software package
  • MCU peripherals initialization generated by Processor Expert®

Buy Options

  • $329.00 USD
  • For a quantity of 1
    • Availability: Pending stock
