MPC5606B 3-phase BLDC Development Kit

MTRCKTSBN5606B

Roll over image to zoom in

The MTRCKTSBN5606B motor control development kit is ideal for sensorless applications requiring one BLDC motor, like HVAC or electric pumps.

  • Designed to enable rapid prototyping and evaluation of motor control applications without the need to wait for the final hardware design
  • Includes a 32-bit NXP® MPC5606B based controller board and the 3-phase, low-voltage power stage board
  • The application software provides a complete reference implementation of the BLDC motor control application and takes advantage of the Automotive Math and Motor Control Library Set

Product Details

Select a section:

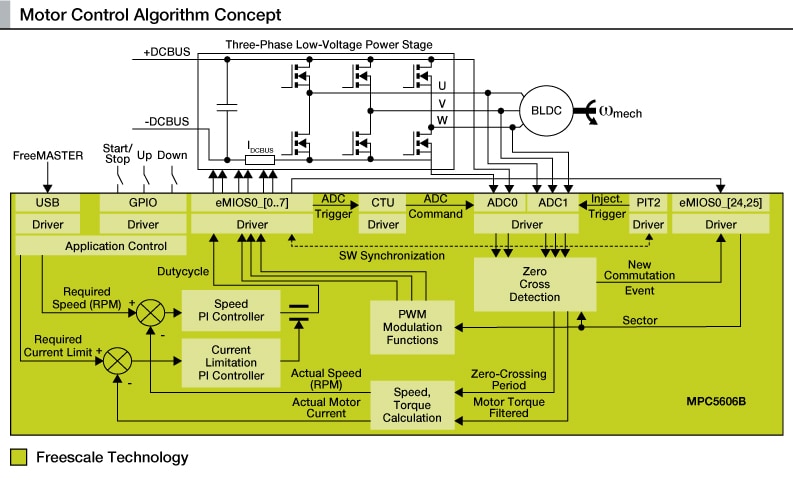

Block Diagram

3-phase Sensorless BLDC Development Kit with NXP MPC5606B

3-phase Sensorless BLDC Development Kit with NXP MPC5606B
Get diagram PDF

Supported Devices

Interfaces

Single and Multi-Channel LIN Transceivers

  • MC33905: SBC Gen2 with High-Speed CAN and LIN

Power Management

Pre-Drivers

  • MC33937: 3-Phase Field Effect Transistor Pre-Driver

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

  • MPC560xB: Ultra-Reliable MPC56xB MCU for Automotive and Industrial General Purpose

Features

Microcontroller

  • 32-bit NXP MPC5606B controller board

Power Management

  • 3-phase low-voltage power stage based on SMARTMOS® MC33937A pre-driver
  • Supports low-voltage BLDC motors
  • DC-bus overvoltage, overcurrent, and undervoltage fault detection

Software & Support

  • FreeMASTER visualization/configuration support
  • ANSI-C based motor control reference software with easy portability
  • Extensive documentation for software and hardware

Documentation

Quick reference to our documentation types.

Filters

1-5 of 7 documents

Show All

Design Resources

Select a section:

Software

Filters

2 software files

  • BSP, Drivers and Middleware

    Automotive Motor Control USB UART drivers

    ZIPRev 0Aug 23, 2012 00:00:006.8 MBMTRCK_56XX_USB_UART_DRIVERS
    Sign in required
    Download
  • Embedded Application Software - miscellaneous

    MTRCKTSBN5606B Application Software

    EXERev 1.3Feb 5, 2019 00:00:008.1 MBMTRCKTSBN5606B_SW
    Sign in required
    Download

Note: For better experience, software downloads are recommended on desktop.
