FRDMGD31ECNEVM: GD3100 Half-Bridge Evaluation Kit

Includes the Freedom KL25Z microcontroller hardware.

Overview

FRDMGD31ECNEVM is a half-bridge evaluation kit populated with two MC33GD3100 single channel IGBT/SiC MOSFET gate drive devices. The kit includes the Freedom KL25Z microcontroller hardware for interfacing a PC installed with SPIGen software for communication to the SPI registers on the MC33GD3100 gate drive devices in either daisy chain or standalone configuration.

The GD3100 translator board is used to translate 3.3 V signals to 5.0 V signals between the MCU and MC33GD3100 gate drivers. The evaluation kit is designed to connect to an Ecno Dual IGBT or SiC MOSFET module for half-bridge evaluations and applications development.

MoreLess

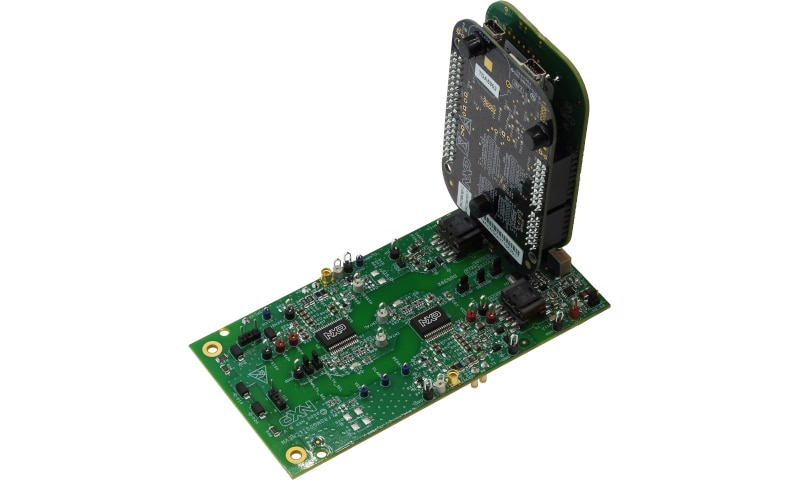

FRDMGD31ECNEVM Half-Bridge evaluation kit

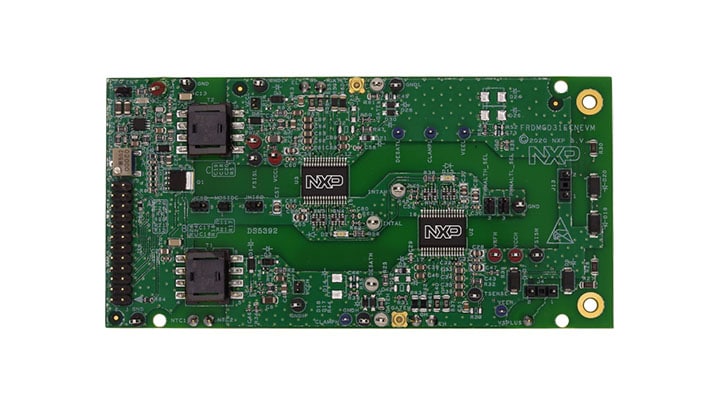

FRDMGD31ECNEVM Half-Bridge evaluation kit

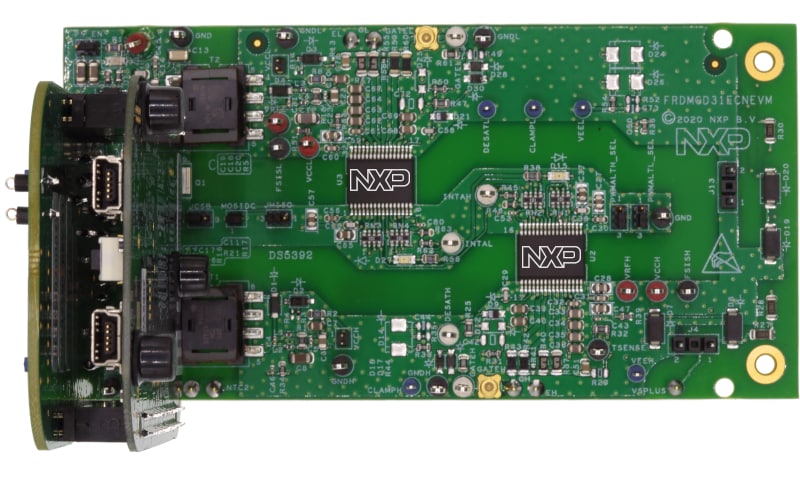

FRDMGD31ECNEVB assembly with KL25Z

Specifications

Supported Devices

Power Management

GD3100 : Advanced single-channel gate driver for Insulated Gate Bipolar Transistors and Silicon Carbide MOSFETs

MoreLess

Technical and Functional Specifications

General

Compatible with Encon Dual IGBT or SiC MOSFET module
SPIGen graphical user interface (GUI) available for use with kit
Daisy chain SPI interface configurability
Easy-to-configure jumper options
SPI configurable register options using SPIGEN GUI
Double pulse and short circuit evaluations

Buy

FRDMGD31ECNEVM ^Active
GD3100 Half-Bridge Evaluation Kit
Half-Bridge evaluation kit featuring GD3100 gate drive devices for IGBT/SiC MOSFET
- Assembled and tested evaluation board in an anti-static bag
- FRDM-KL25Z connected to translator board (3.3 V to 5.0 V)
- Cable, USB type A male/type mini B male 3 ft
- Quick start guide

FRDMGD31ECNEVM
1 @ US
$287.00

Use Coupon

Availability?

Distributor
